| Size | 5 |
|---|---|
| Max. tightening torque | 2 Nm |
| Stroke | 5 mm |
| Type code | DYSS |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

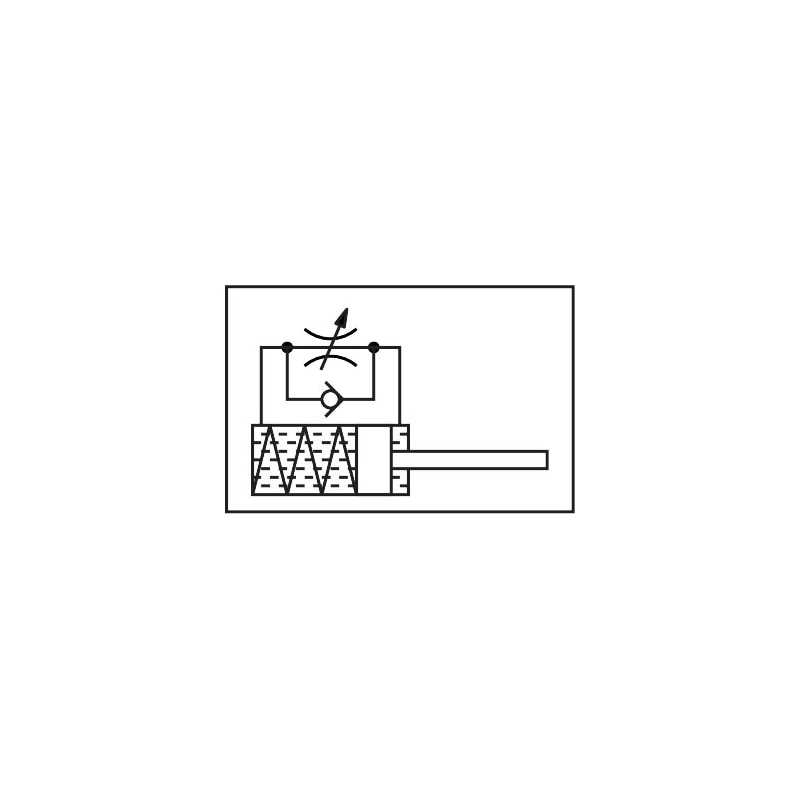

| Symbol | 991495 |
| Max. impact velocity | 1 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-actingPushing |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Cushioning length | 5 mm |
| Max. stop force | 200 N |
| Max. energy absorption per stroke | 1.4 J |
| Max. energy absorption per hour | 8000 J |
| Max. residual energy | 0.01 J |
| Resetting force | 0.9 N |
| Product weight | 7 g |
| Type of mounting | With lock nut |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
DYSS

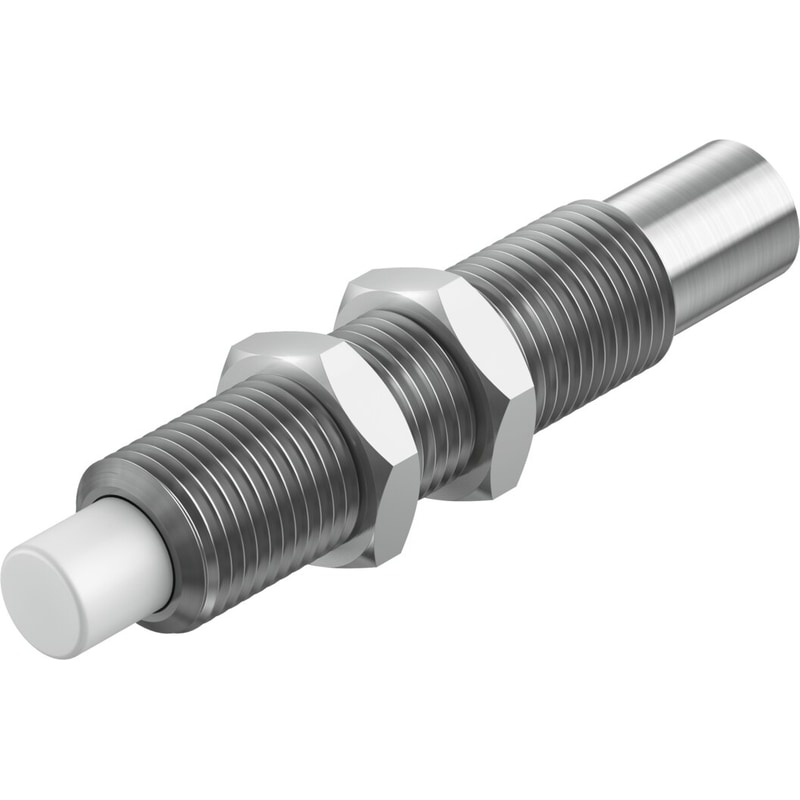

DYSS-5-5-Y1F
$77.40
End-to-end screw-in hydraulic shock absorber with rapidly rising cushioning force curve due to path-controlled flow control function for DGST miniature slide.
| Weight | 0.026389 lbs |
|---|---|
| Dimensions | 4.724409 × 3.149606 × 0.708661 in |
| Stroke | 5 mm |
| Max. energy consumption per stroke | 1.4 J |
| Cushioning | Self-adjusting |
