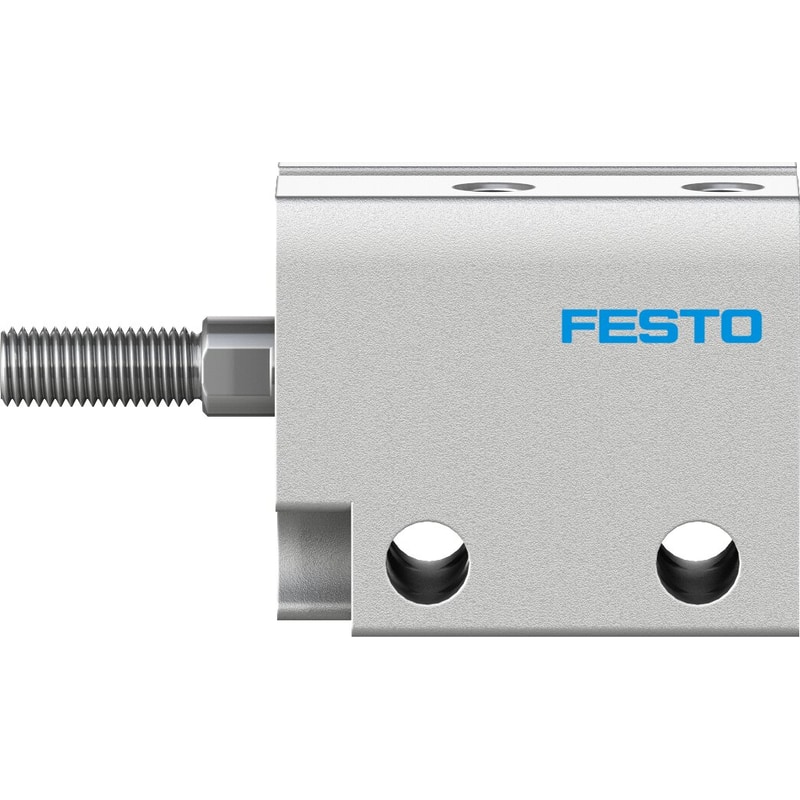

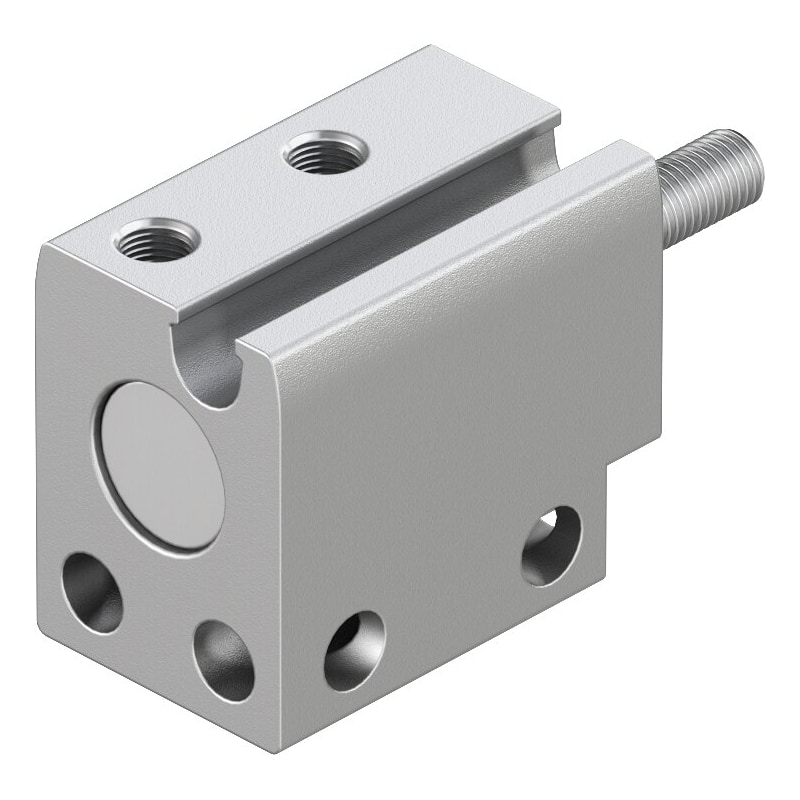

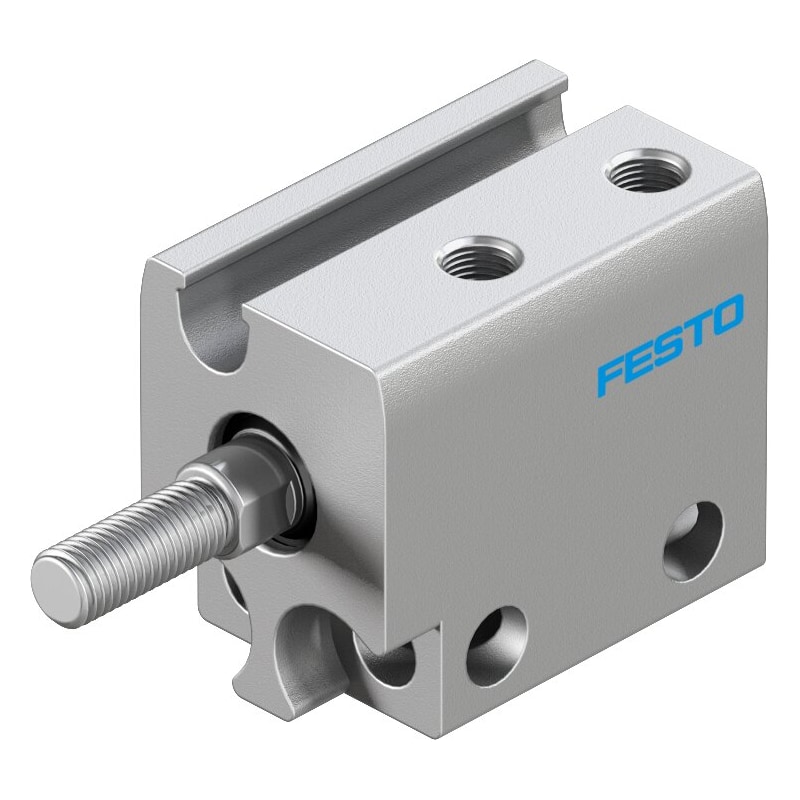

compact cylinder
ADN-S-6-5-A
Part number:Â 8080598
New
Stroke | 5 mm |
---|---|
Piston diameter | 6 mm |
Cushioning | No cushioning |
Assembly position | Any |
Mode of operation | double-acting |
Piston-rod end | Male thread |
Design structure | PistonPiston rod |
Variants | Single-ended piston rod |
Operating pressure | 1.5 … 8 bar |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
Ambient temperature | ‘-10 … 60 °C |
