Name: ADN-S-10-5-A
Brand: Festo
SKU: 8080589
Availability: InStock

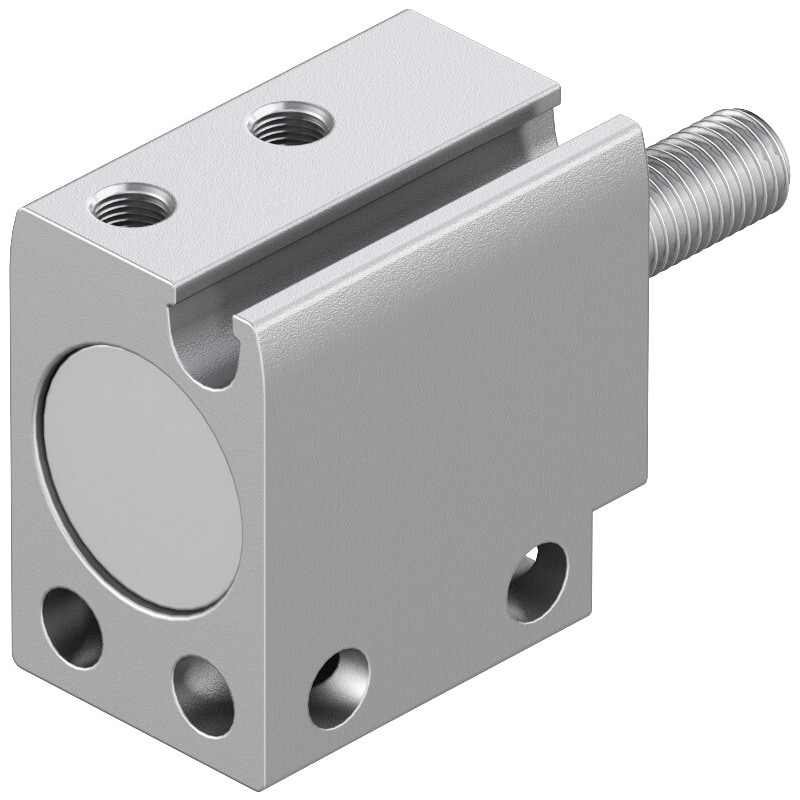

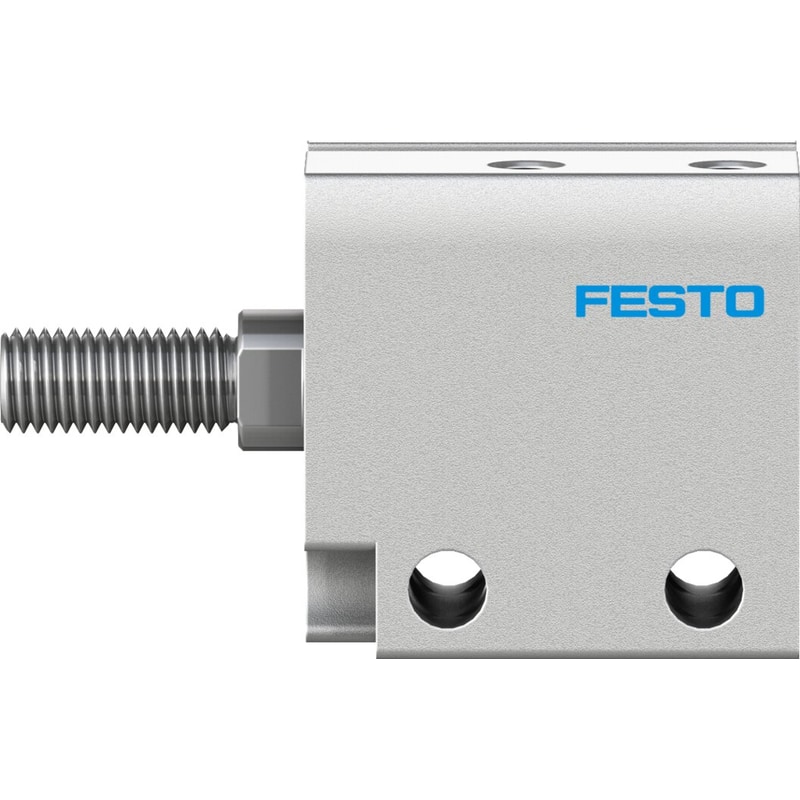

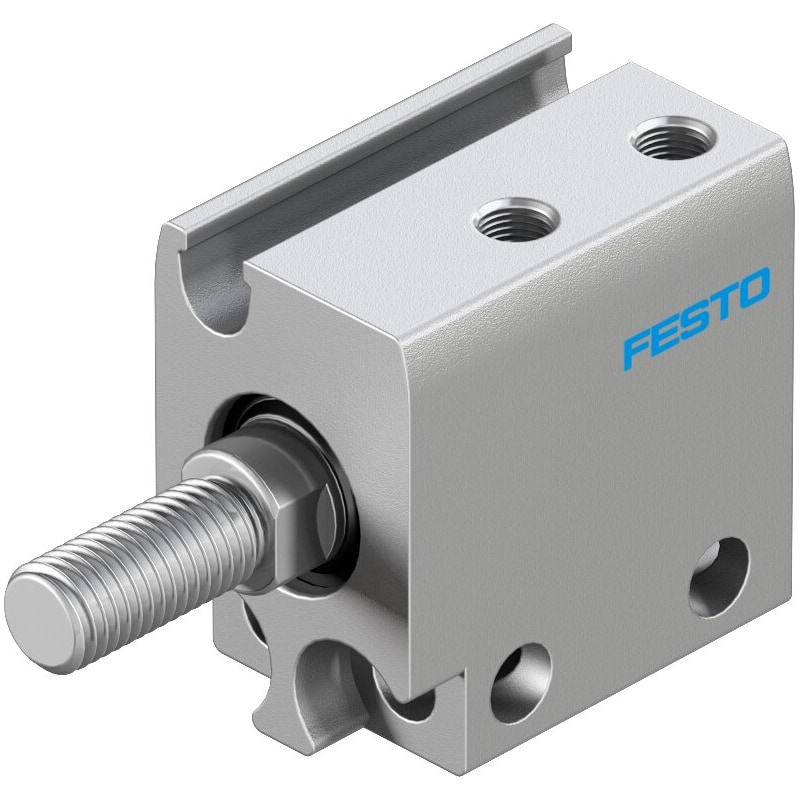

compact cylinder
ADN-S-10-5-A
Part number: 8080589

New

Stroke	5 mm
Piston diameter	10 mm
Cushioning	No cushioning
Assembly position	Any
Mode of operation	double-acting
Piston-rod end	Male thread
Design structure	PistonPiston rod
Variants	Single-ended piston rod
Operating pressure	1 … 8 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	1 – Low corrosion stress
Ambient temperature	‘-10 … 60 °C

Weight	0.036795 lbs
Dimensions	1.417323 × 0.866142 × 0.590551 in
Mode of operation	double-acting
Piston diameter	10 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	47 N
Stroke	5 mm
Cushioning	No cushioning
