| Type code | SOOE |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Certificate issuing authority | UL E232949 |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |

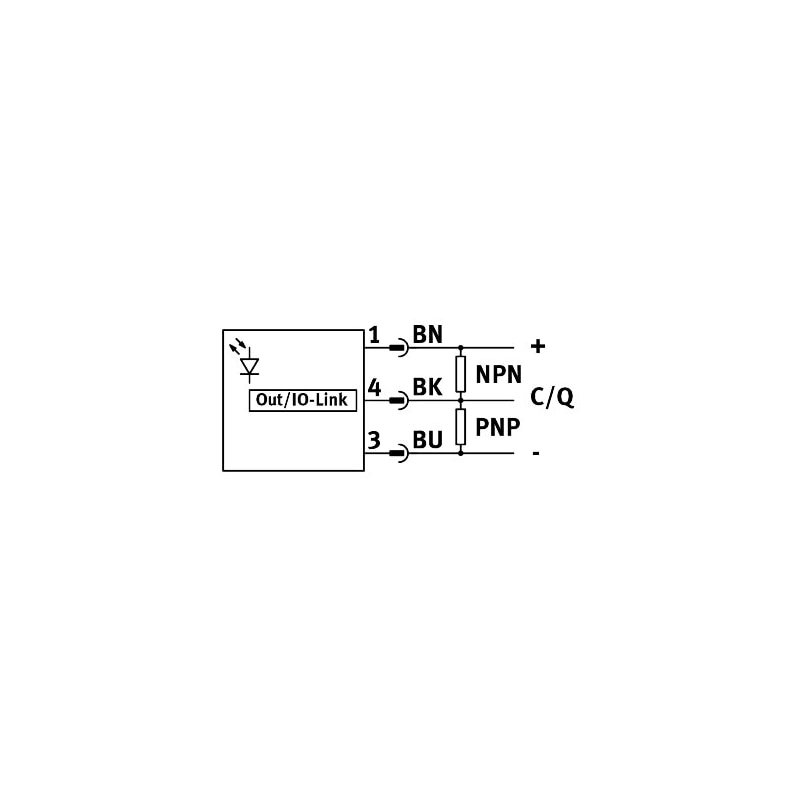

| Electrical connection for input 1, connection pattern | 991155 |
| Detection method | Reflection light sensor |
| Electrical connection 1, number of pins/wires | 3 |
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 995956 |
| Certification | c UL us – Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measuring principle | Optoelectronic |
| Type of light | LEDRed |
| Max. light spot | 65 mm for scan width of 1000 mm |
| Working range | 2 mm … 1000 mm |
| Ambient temperature | -40 °C … 60 °C |
| Reference material | Standard white 90%, 100×100 mm |
| Switching output | Push-pull |
| Switching element function | NPN, dark-switchingSwitchablePNP, bright-switching |
| Hysteresis | 200 mm |
| Max. output current | 100 mA |
| Voltage drop | 0 V … 1.5 V |
| Timer function | Via IO-Link® |
| Short-circuit protection | Pulsed |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 2 bit |
| IO-Link®, process data content OUT | 1 bit (emitter disable)1 bit (hold) |
| IO-Link®, process data width IN | 1 bit |
| IO-Link®, process data content IN | 1 bit SSC (switching signal) |
| IO-Link®, minimum cycle time | 2.3 ms |
| IO-Link®, data memory required | 2000 byte |
| DC operating voltage range | 10 V … 30 V |
| Residual ripple | 0.1 |
| Idle current | 25 mA |
| Reverse polarity protection | for all electrical connections |
| Material of pin contacts | Brass, gold-plated |
| Type of mounting | With through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Housing material | PCPMMA |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Setting options | IO-Link®Teach-inPotentiometer |
| Setting range, lower limit | 75 mm |
| Setting range, upper limit | 1000 mm |
| Degree of protection | IP65IP69KIP67 |
| Insulation voltage | 500 V |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Contamination level | 3 |

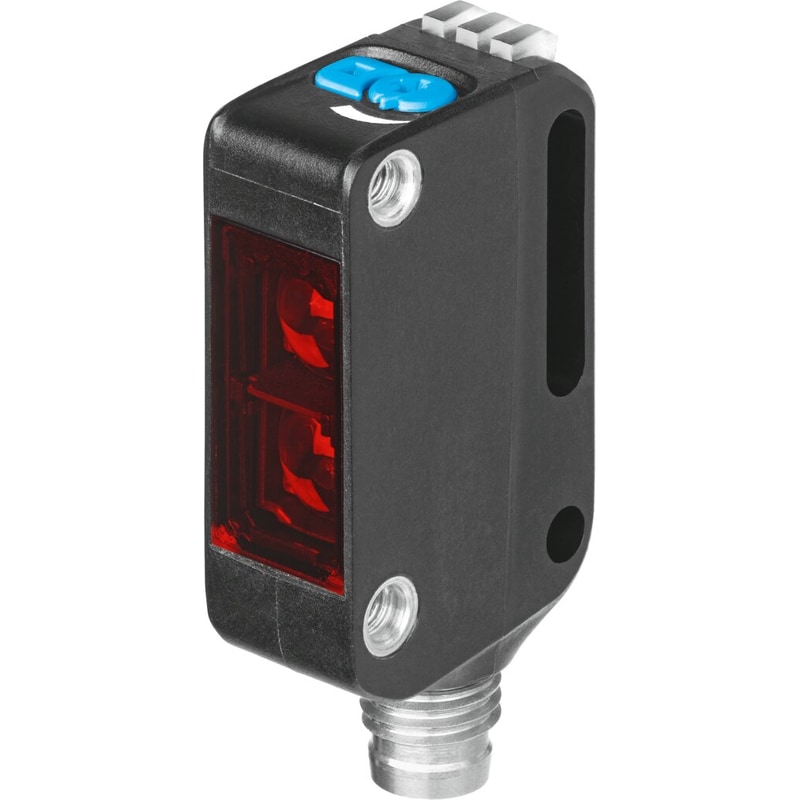

SOOE
SOOE-DS-R-PNLK-T
$138.80
The SOOE for object detection gives you all the optical functions in one identical sensor housing. From the through-beam sensor to the distance sensor, you can make use of highly innovative technologies and reduce the multiplicity of parts in use, by means of consistent installation.
| Weight | 0.044026 lbs |
|---|---|
| Dimensions | 7.283465 × 4.724409 × 0.590551 in |
| No-load supply current | 25 mA |
| Type of light | Red – LED |
| Operating distance | 2 mm – 1000 mm |
| Degree of protection | IP65 – IP67 – IP69K |
| Ambient temperature | -40?C – 60?C |
