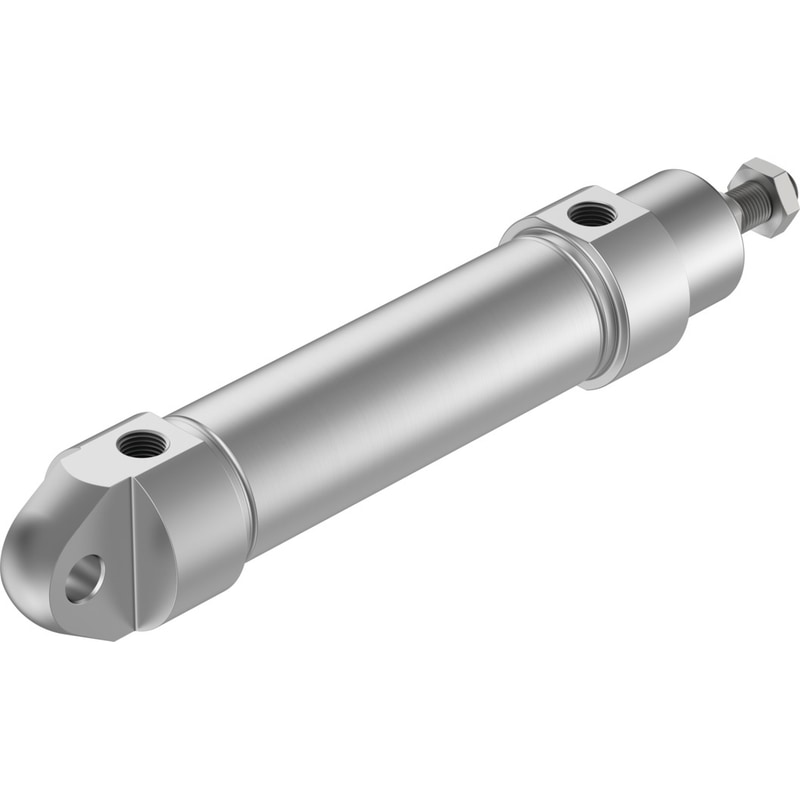

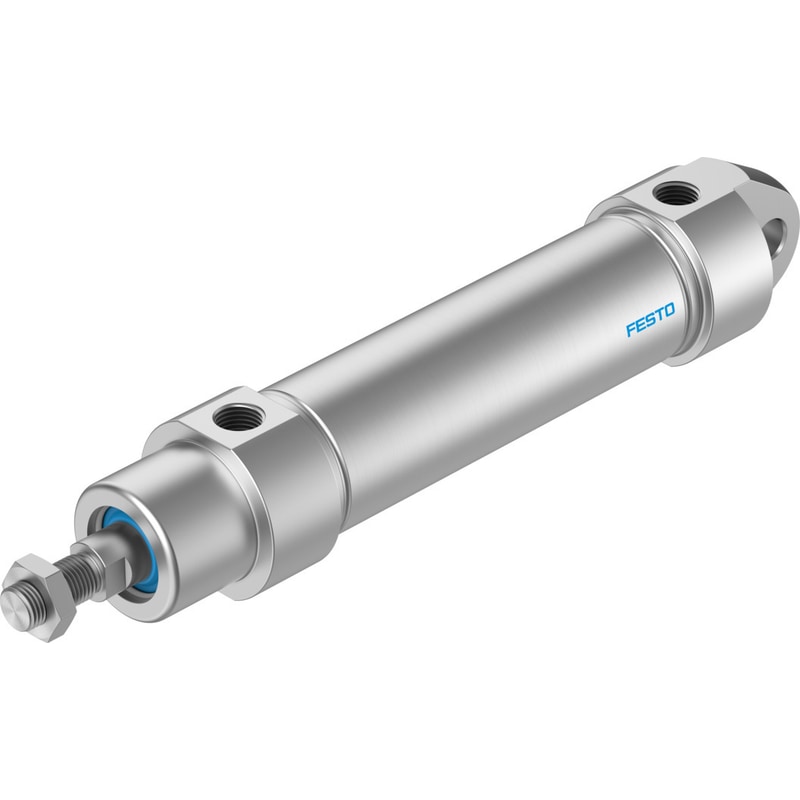

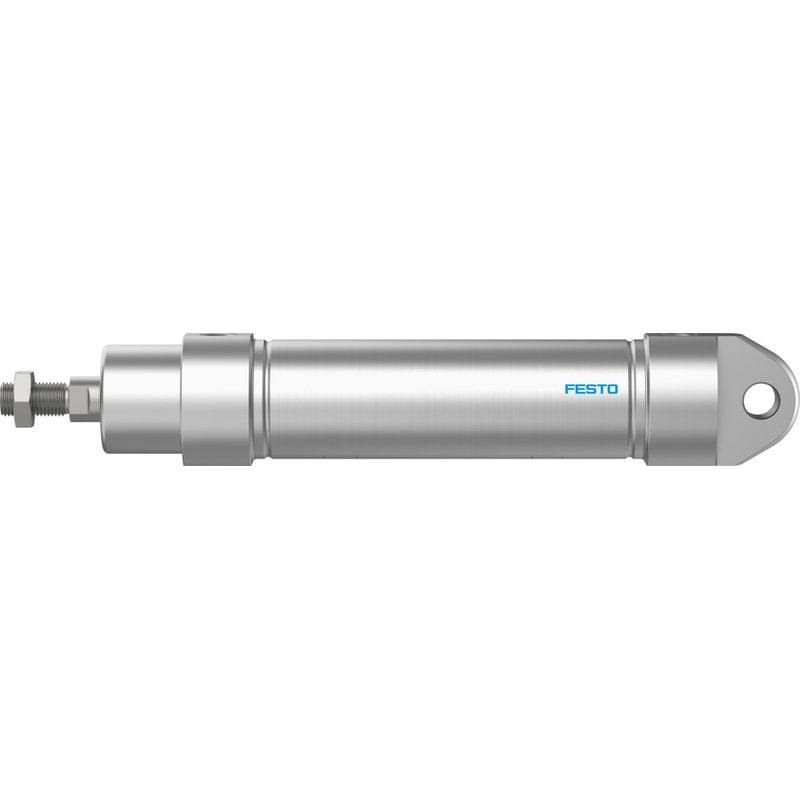

round cylinder
CRDSNU-B-40-40-PPS-A-MG-A1
Part number:Â 8073987
Stroke | 125 mm |
---|---|
Piston diameter | 40 mm |
Based on the standard | ISO 15552 |
Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
Assembly position | Any |
Design structure | PistonPiston rodCylinder barrel |
Position detection | For proximity sensor |
Operating pressure | 1 … 10 bar |
Mode of operation | double-acting |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Corrosion resistance classification CRCÂ | 4 – Very high corrosion stress |
Food-safe | See Supplementary material information |
