CRDSNU-B-20-100-PPS-A-MG-A1

$173.52

SKU: 8073975 Category: Tag:
Festo

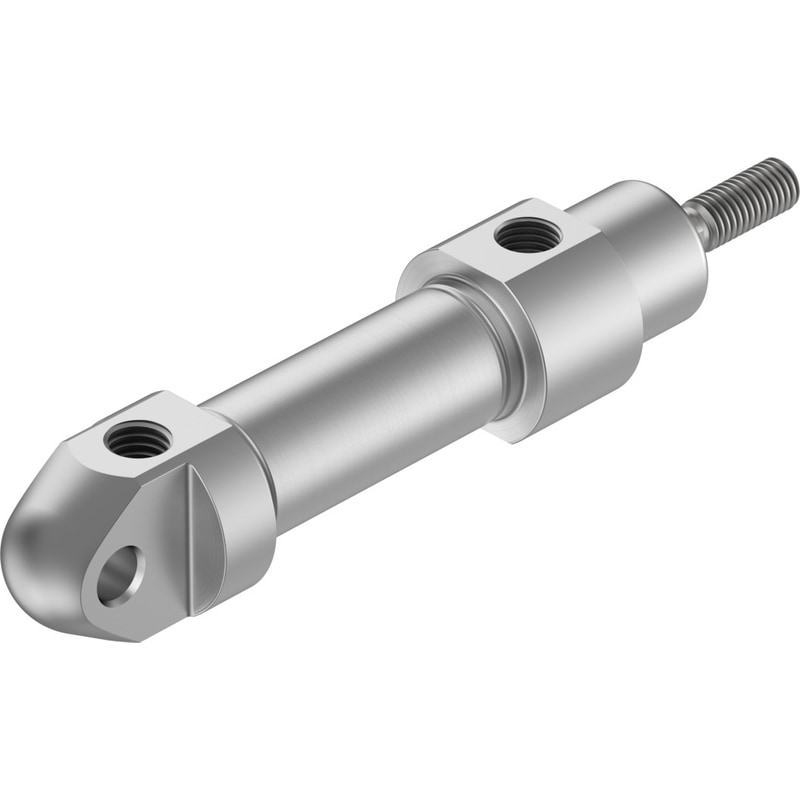

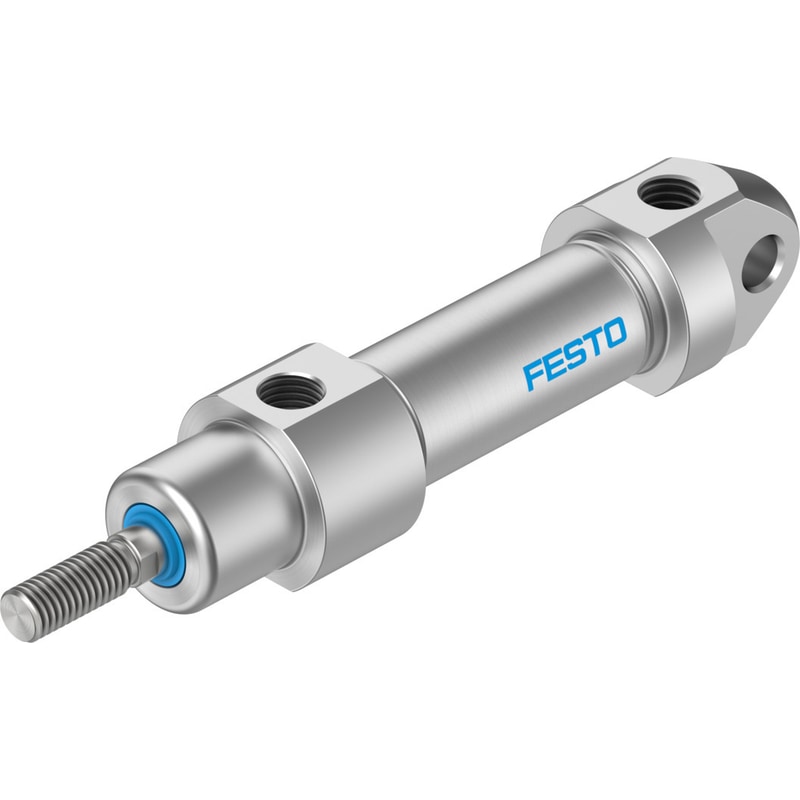

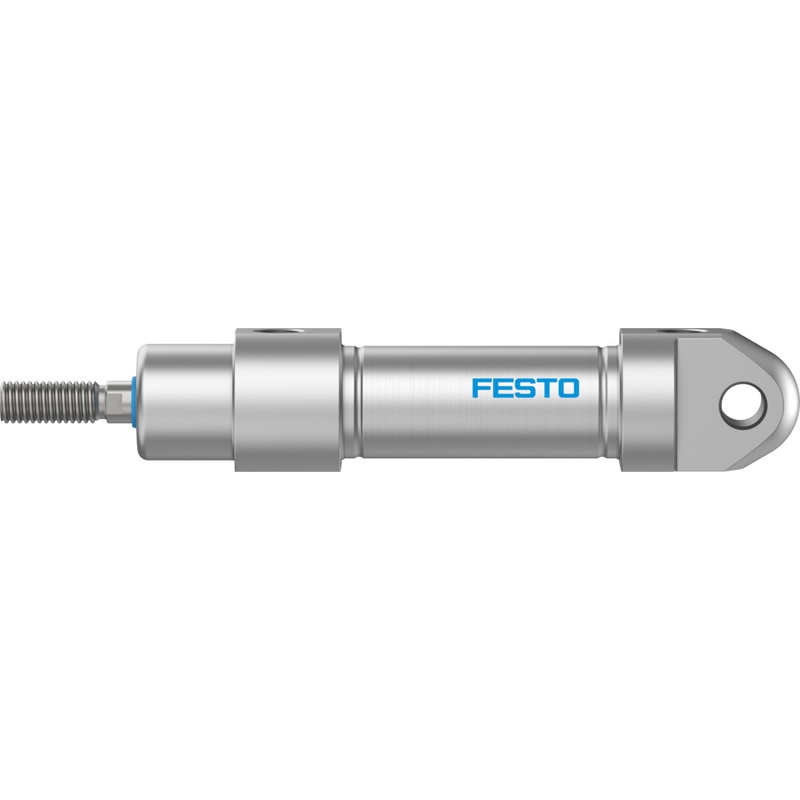

ISO cylinder
CRDSNU-B-20-100-PPS-A-MG-A1
Part number: 8073975

Stroke  100 mm
Piston diameter  20 mm
Based on the standard  ISO 6432
Cushioning  PPS: Self-adjusting pneumatic end-position cushioning
Assembly position  Any
Design structure  PistonPiston rodCylinder barrel
Position detection  For proximity sensor
Operating pressure  1 … 10 bar

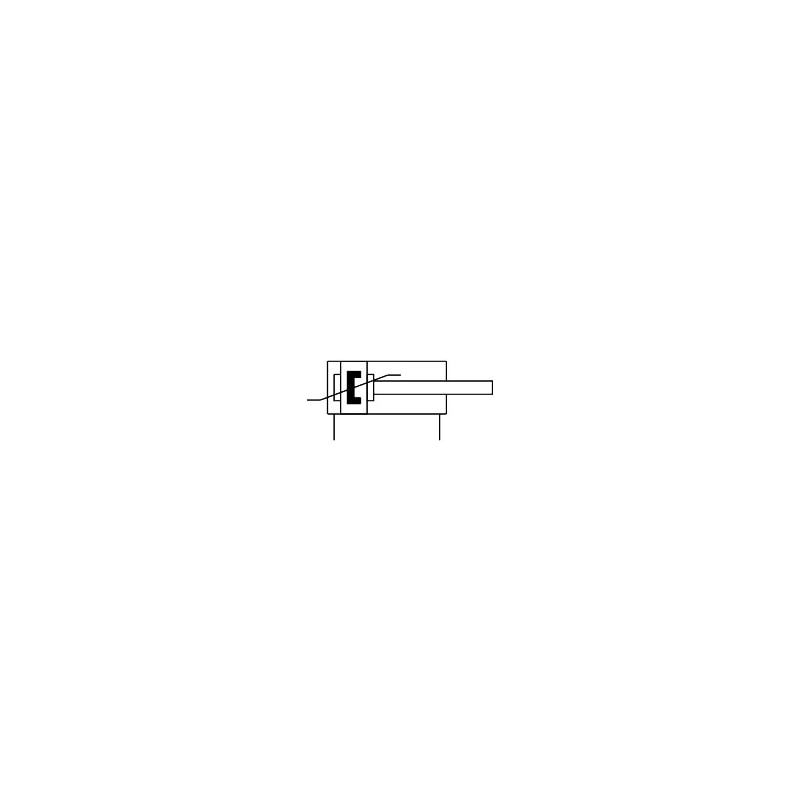

Mode of operation  double-acting
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  4 – Very high corrosion stress
Food-safe  See Supplementary material information
Stroke

100 mm

Piston diameter

20 mm

Based on the standard

ISO 6432

Cushioning

PPS: Self-adjusting pneumatic end-position cushioning

Assembly position

Any

Design structure

PistonPiston rodCylinder barrel

Position detection

For proximity sensor

Operating pressure

1 … 10 bar

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

4 – Very high corrosion stress

Food-safe

See Supplementary material information
