| Size | 2 |
|---|---|
| Max. tightening torque | 0.5 Nm |
| Stroke | 4 mm |
| Type code | DYSS-G8 |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

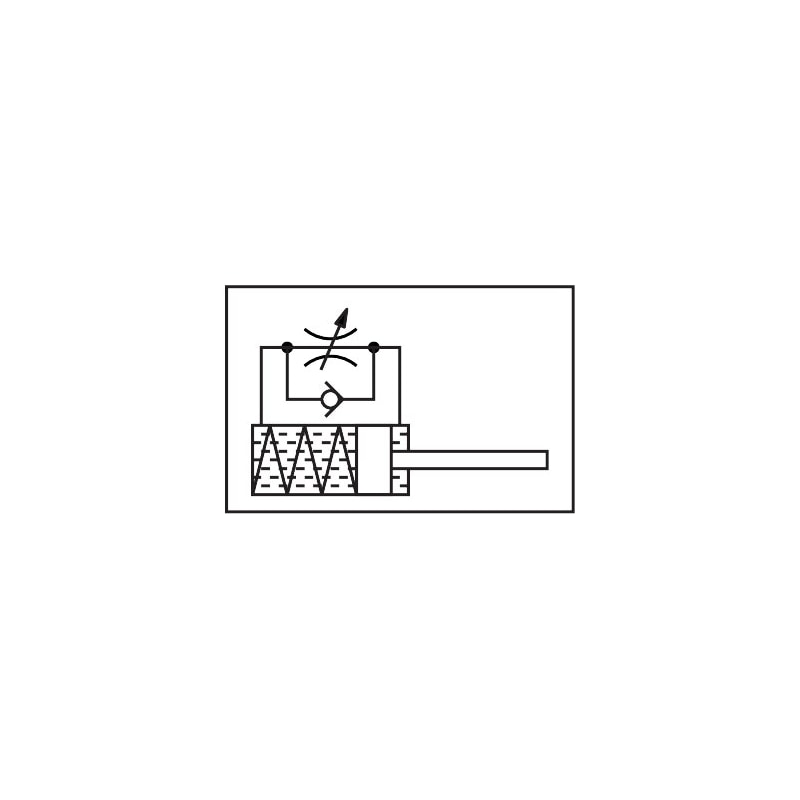

| Symbol | 991495 |
| Max. impact velocity | 0.5 m/s |
| Reset time at room temperature | 0.5 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-actingPushing |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 70 °C |
| Cushioning length | 4 mm |
| Max. stop force | 60 N |
| Max. energy absorption per stroke | 0.1 J |
| Max. energy absorption per hour | 270 J |
| Max. residual energy | 0.003 J |
| Resetting force | 0.7 N |
| Product weight | 3.9 g |
| Type of mounting | With threaded sleeve |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
DYSS

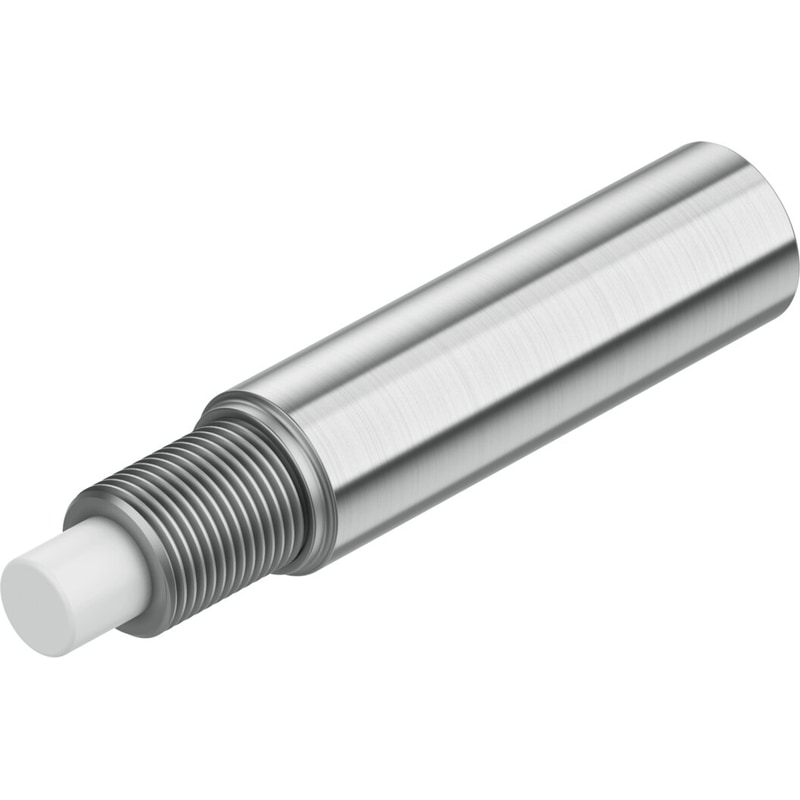

DYSS-G8-2-4-Y1F
$60.66
End-to-end screw-in hydraulic shock absorber with rapidly rising cushioning force curve due to path-controlled flow control function for DGST miniature slide.
| Weight | 0.013338 lbs |
|---|---|
| Dimensions | 2.559055 × 0.787402 × 0.393701 in |
| Stroke | 4 mm |
| Max. energy consumption per stroke | 0.1 J |
| Cushioning | Self-adjusting |
