CRDSNU-B-16-50-P-A-MG-A1

$145.11

SKU: 8073762 Category: Tag: Brand:

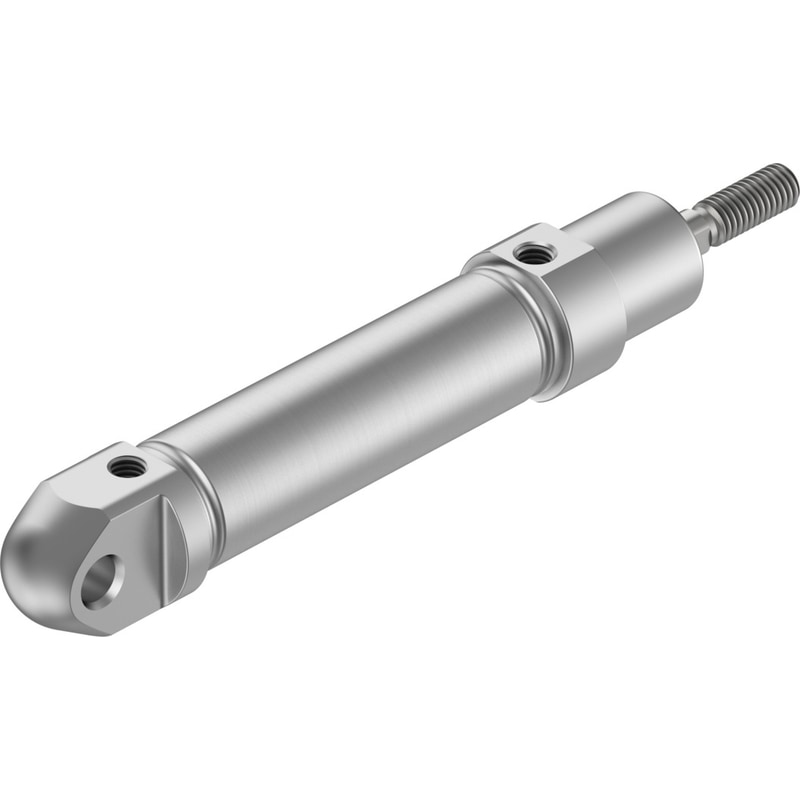

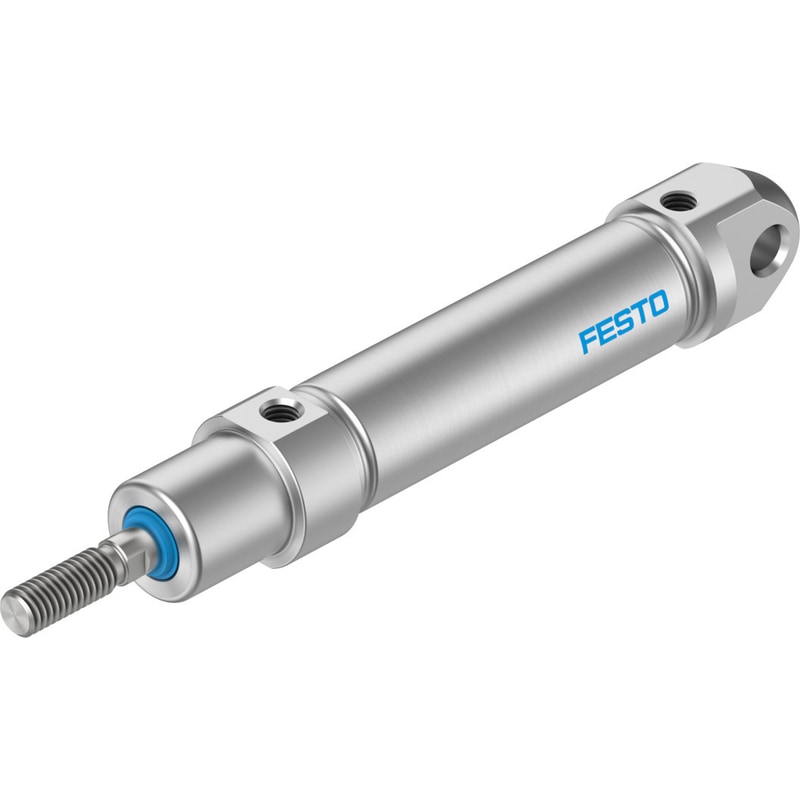

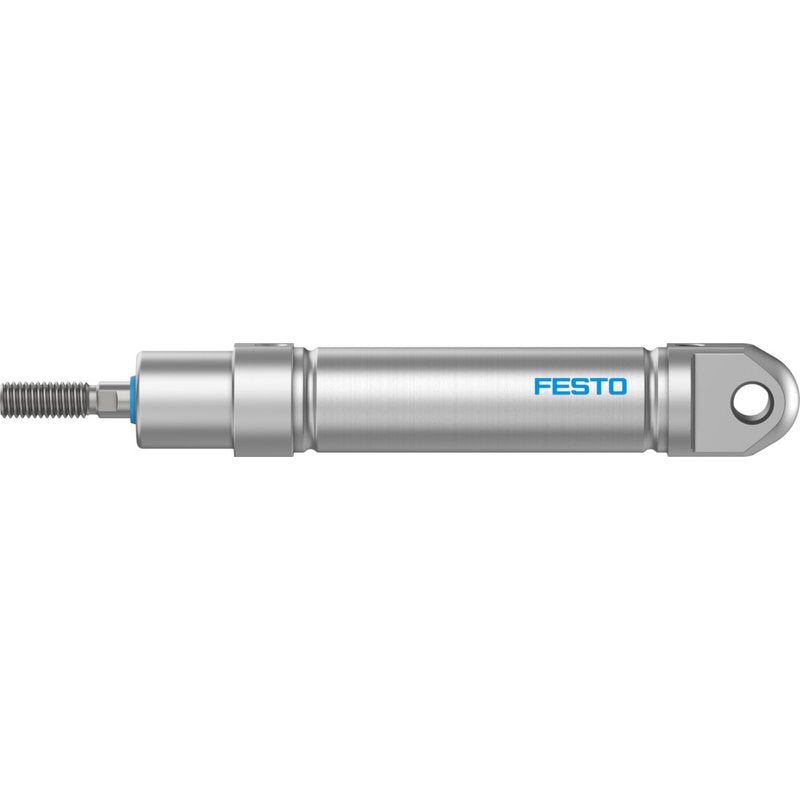

ISO cylinder
CRDSNU-B-16-50-P-A-MG-A1
Part number: 8073762

Stroke 50 mm
Piston diameter 16 mm
Based on the standard ISO 6432
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Design structure PistonPiston rodCylinder barrel
Position detection For proximity sensor
Operating pressure 1 … 10 bar

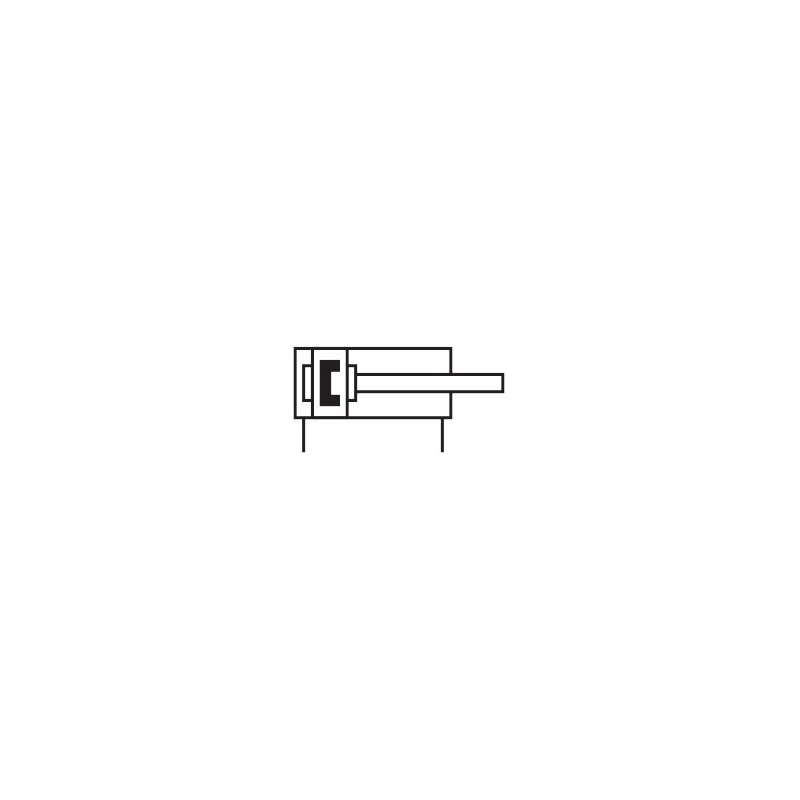

Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 4 – Very high corrosion stress
Food-safe See Supplementary material information
Stroke

50 mm

Piston diameter

16 mm

Based on the standard

ISO 6432

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Design structure

PistonPiston rodCylinder barrel

Position detection

For proximity sensor

Operating pressure

1 … 10 bar

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

4 – Very high corrosion stress

Food-safe

See Supplementary material information
