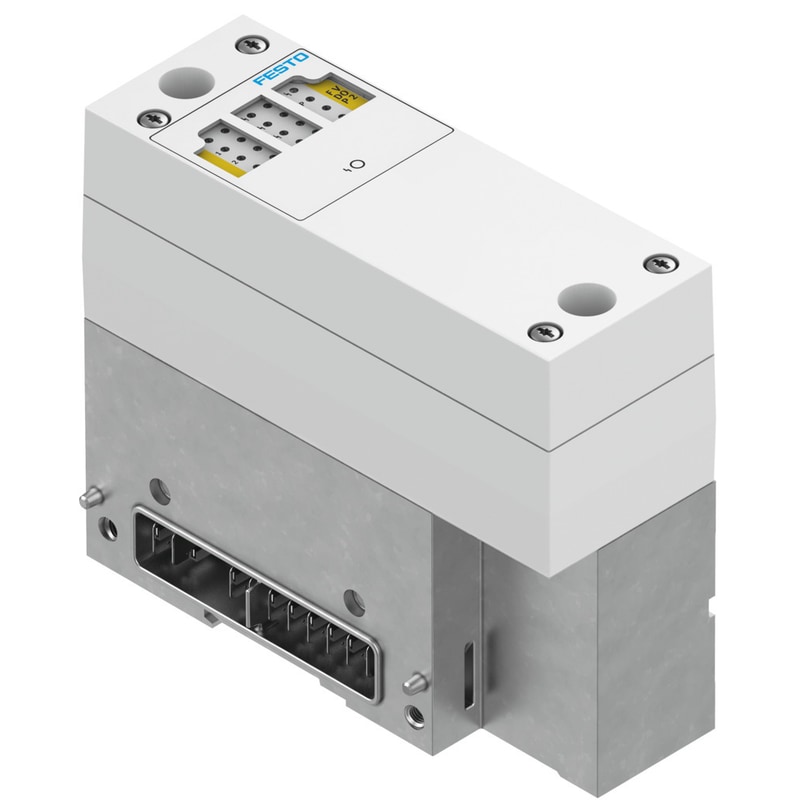

| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
|---|---|
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Type code | VABA |
| Valve manifold interface | Type 44, VTSA-F-CB |
| Diagnostics | Wire break per valve coilShort circuit of pneumatic valvesUndervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves24 for monostable pneumatic valves |
| LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channelForcing per channelIdle mode per channelModule monitoring |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6 V … 26.4 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 110 mA for electronics with CPX-FVDA-P2Typ. 25 mA for pneumatic valves without CPX-FVDA-P2Typ. 45 mA for electronics without CPX-FVDA-P2Typ. 90 mA for pneumatic valves with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2 A |
| Max. residual current per module | 4.5 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Storage temperature | -20 °C … 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 734 g |
| Electrical actuation | Fieldbus |
| Electrical connection | Via CPX |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
| Cover material | PA |
| Seals material | NBR |
| Material of screws | Steel |
| Weight | 1.891191 lbs |
|---|---|
| Dimensions | 7.874016 × 5.708661 × 2.362205 in |
