| Type code | VEAB |
|---|---|
| KC characters | KC EMC |
| Absolute accuracy in ± %FS at room temperature | 0.75 %FS |
| Inlet pressure 3 | -1 bar |
| Valve function | 3-way proportional pressure control valve |
| Type of control | Direct |
| Reset method | Mechanical spring |
| Actuation type | Electrical |
| Mounting position | Any |
| Sealing principle | Soft |
| Symbol | 995607 |
| Ambient temperature | 0 °C … 50 °C |
| Temperature of medium | 5 °C … 50 °C |
| Storage temperature | -20 °C … 70 °C |
| Dimensions W x L x H | 18 mm x 67 mm x 66 mm |
| Pneumatic connection 1 | Flange |
| Pneumatic connection 2 | Flange |
| Pneumatic connection 3 | Flange |
| Seals material | NBR |
| Type of mounting | With through-holeWith accessoriesOptionally: |
| Inlet pressure 1 | 0 bar … 2 bar |
| Outlet pressure 2 | -1 bar … 1 bar |
| Standard nominal flow rate | ≥ 17 l/min |
| Linearity error FS | 0.008 |
| Repetition accuracy in ± %FS | 0.4 %FS |
| Hysteresis in ± %FS | 0.5 %FS |
| Temperature coefficient | 0.05 %/K |
| Product weight | 70 g |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| DC operating voltage range | 19 V … 29 V |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 0.1 |
| Reference value | 4 – 20 mA |
| Precision analog output in ± %FS | 2 %FS |
| Max. electrical power consumption | 1 W |
| Reverse polarity protection | for all electrical connections |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VEAA/VEAB safety position: if the electrical power supply is lost, the outlet pressure is maintained in uncontrolled form, it may increase or fall – pneumatic valve blocked. |
| Display type | LED |
| Electrical connection | as per EN 60947-5-2PlugM8x14-pin |
| Housing material | PA-reinforced |
VEAB

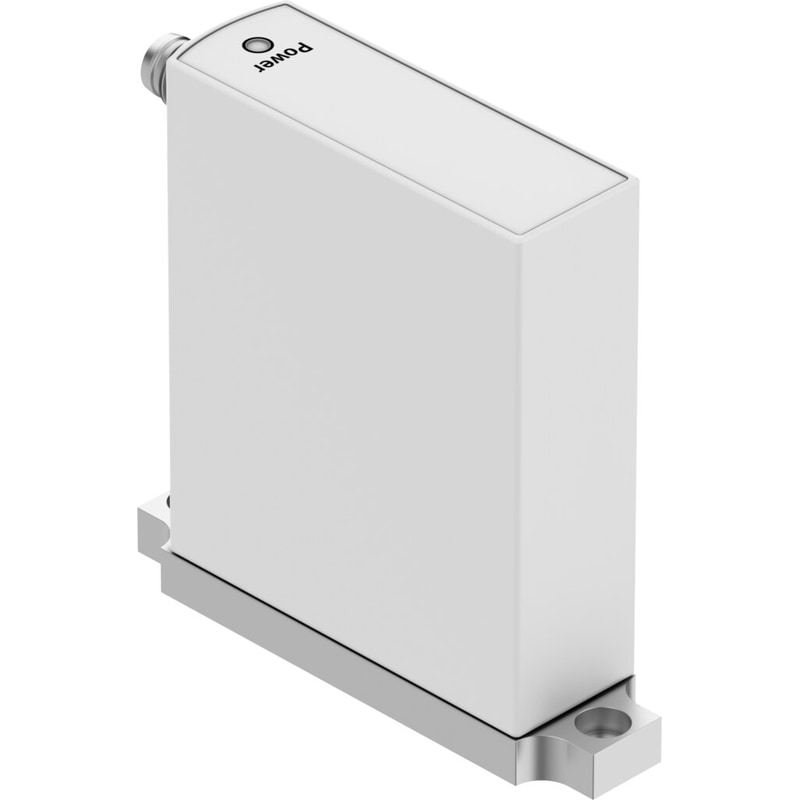

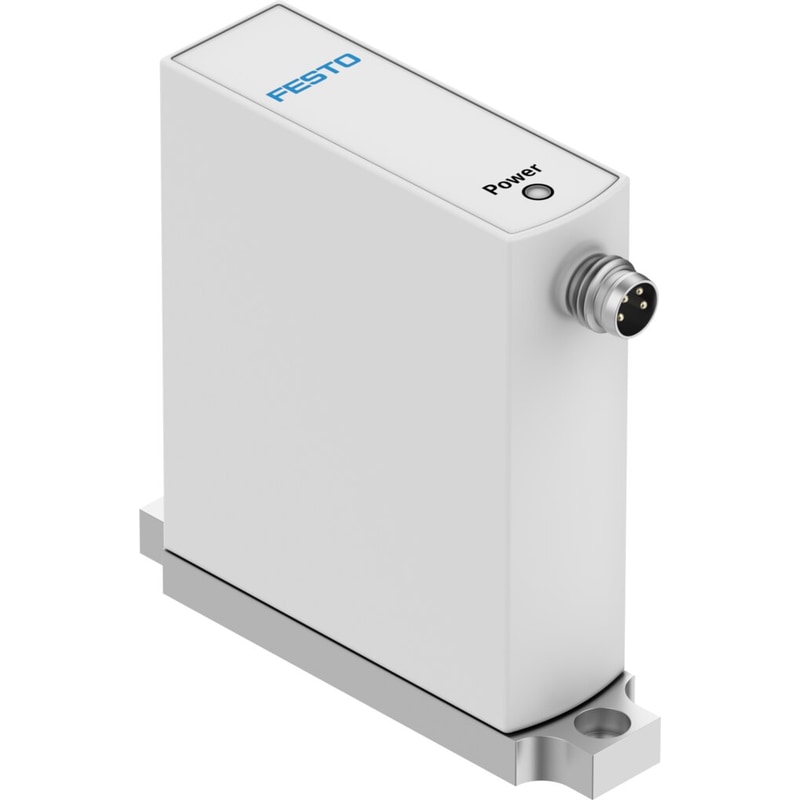

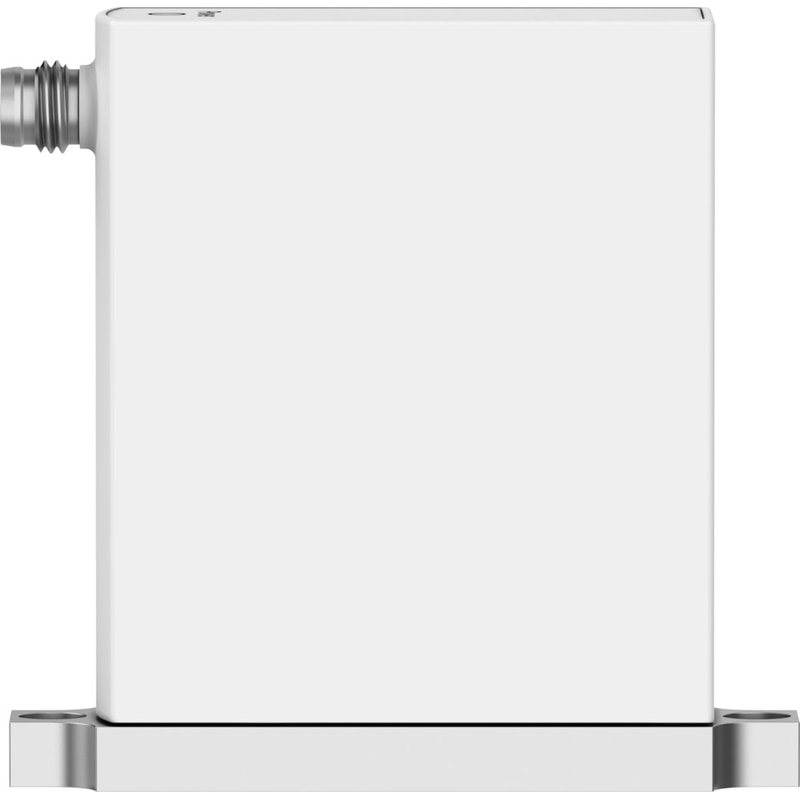

VEAB-B-26-D13-F-A4-1R1
$825.72
For pressure ranges up to 6 bar: piezo technology gives the VEAB high precision and an extremely long service life. Other benefits include: Extremely short switching times, noiseless operation and very low power consumption.
| Weight | 0.221785 lbs |
|---|---|
| Dimensions | 4.527559 × 3.543307 × 0.984252 in |
