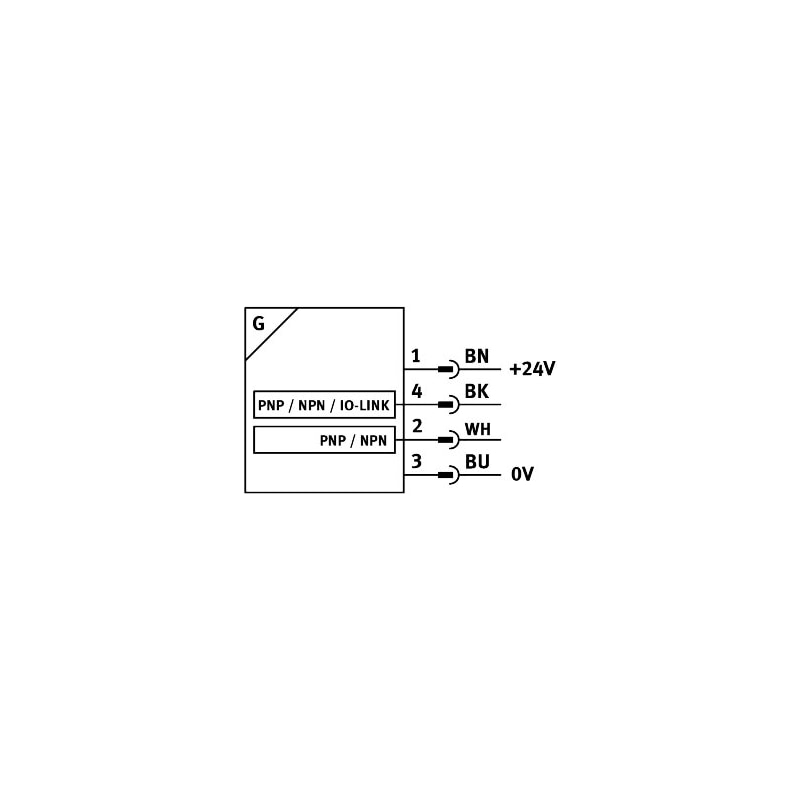

| Type code | SDAS |
|---|---|
| Electrical connection 1, connection type | Cable |
| KC characters | KC EMC |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995894 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Halogen-freeRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | ≤ 52000 µm |
| Ambient temperature | -40 °C … 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | ≤ 0.02 mm |
| Repetition accuracy | 0.2 mm |
| Switching output | 2x PNP or 2x NPN adjustable |
| Switching element function | N/C contact/N/O contact switchable |
| On time | < 4 ms |
| Switch-off time | < 4 ms |
| Max. switching frequency | 125 Hz |
| Max. output current | 50 mA |
| Max. switching capacity DC | 1.5 W |
| Voltage drop | < 0.5 V |
| Typical linearity error in ± mm | ±1 mm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | I-PortIO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | IdentificationSwitching signal channel (SSC)DiagnosticsTeach channelProcess data variable (PDV) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 12 bit PDV (position measurement)4 bit SSC (switching signal) |
| IO-Link®, minimum cycle time | 2.5 ms |
| DC operating voltage range | 10 V … 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Torsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standardCable chain: 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot from aboveScrewed tightly |
| Mounting position | Any |
| Product weight | 27 g |
| Housing material | High-alloy stainless steelPA-reinforced |
| Switching status indication | LED yellow |
| Status indicator | LED red |
| Setting options | Capacitive pushbuttonIO-Link® |
| Ambient temperature with flexible cable installation | -20 °C … 70 °C |
| Degree of protection | IP68IP65 |
SDAS-MHS

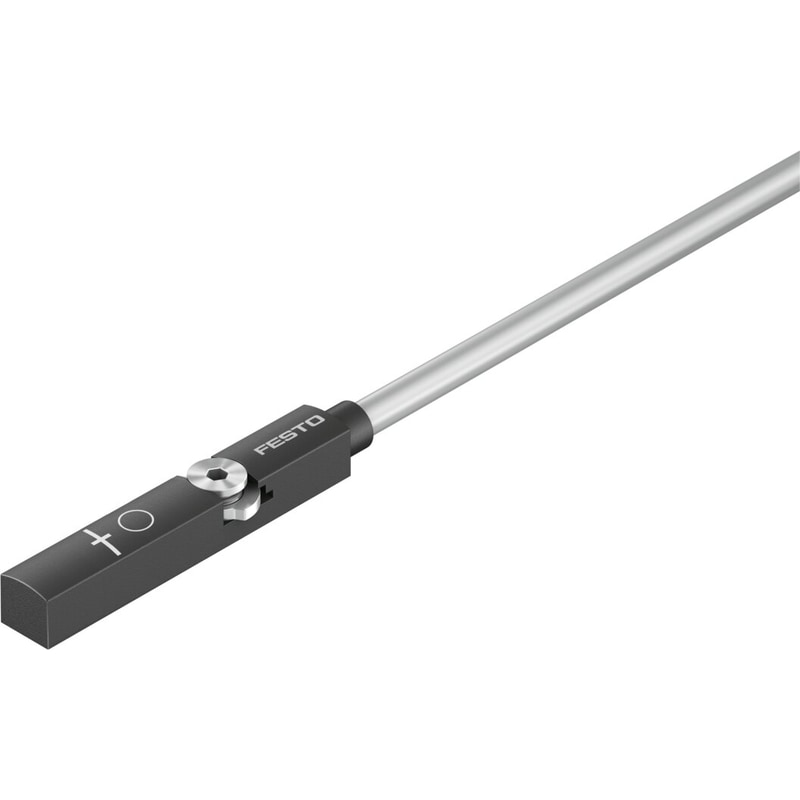

SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE
$132.37
Two functions in one device, but still no larger than a proximity sensor: position transmitter with IO-Link® output and programmable proximity sensor. Its very small size makes the SDAS-MHS the ideal solution for all applications where space is restricted.
| Weight | 0.1138 lbs |
|---|---|
| Dimensions | 9.645669 × 8.858268 × 0.15748 in |
| Design | For T-slot |
| Displacement resolution | 0.02 mm |
