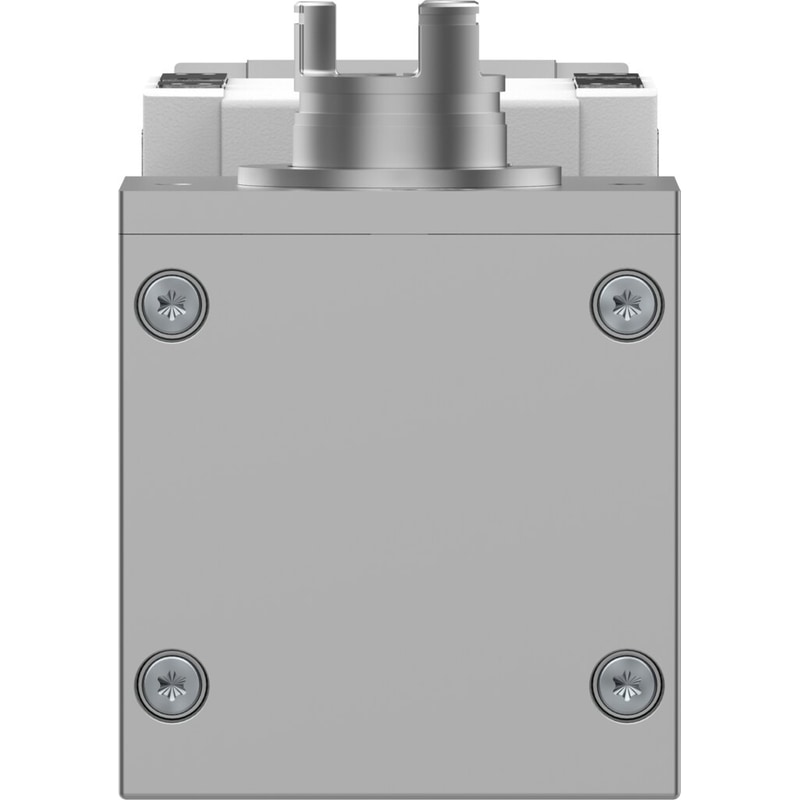

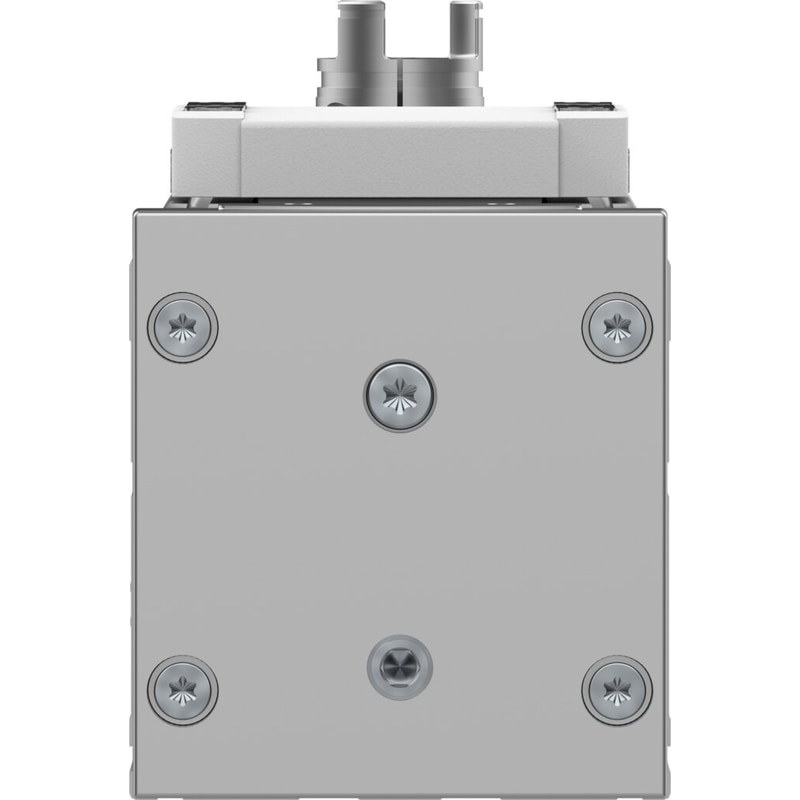

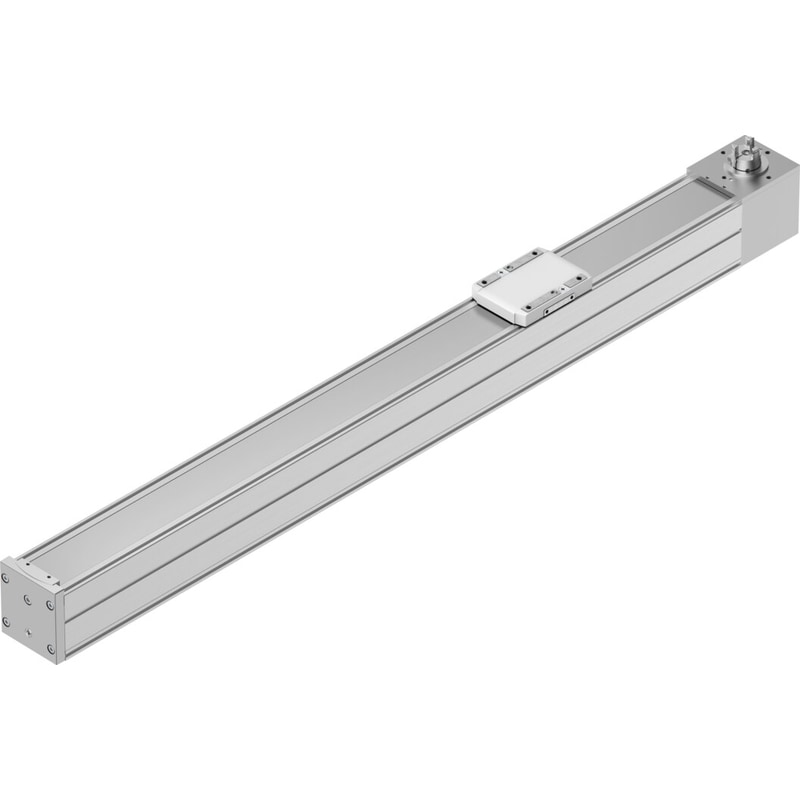

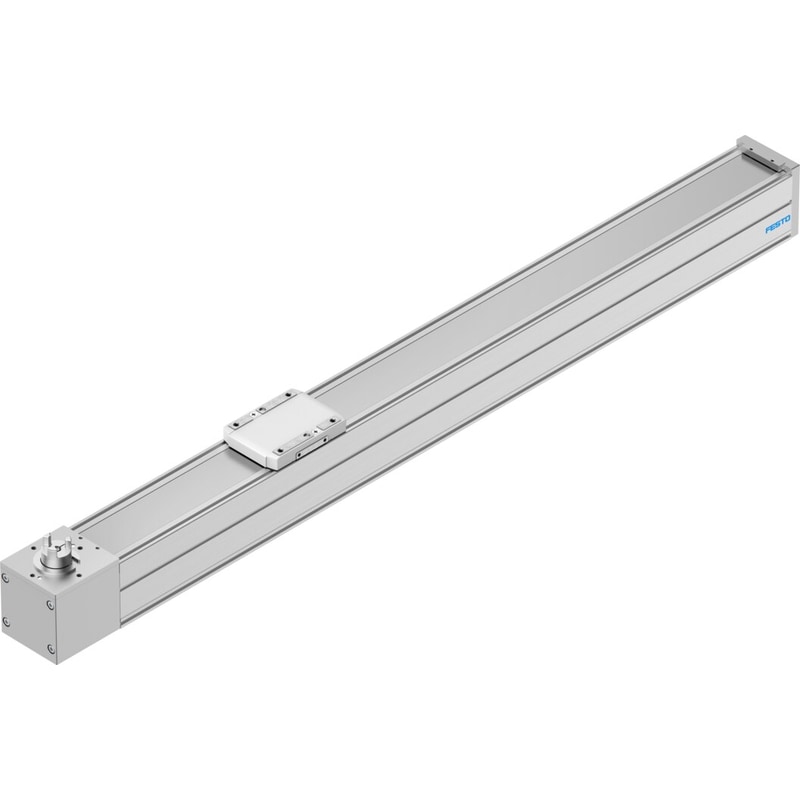

ELGC-TB-KF-80-1800

$1,180.70

The reasonably priced actuator family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more. The belt driven linear actuator offers precise, durable rail guidance.

SKU: 8062794 Category: Tag:
Festo
Drive pinion effective diameter 33.42 mm
Working stroke 1800 mm
Size 80
Stroke reserve 0 mm
Toothed belt elongation 0.002
Toothed belt pitch 3 mm
Type code ELGC
Mounting position Any
Guide Recirculating ball bearing guide
Design with toothed beltElectromechanical linear axis
Motor type Servo motorStepper motor
Symbol 991212
Measuring principle of linear potentiometer Incremental
Max. acceleration 15 m/s²
Max. speed 1.5 m/s
Repetition accuracy ±0.1 mm
Duty cycle 1
Degree of protection IP40
Ambient temperature 0 °C … 50 °C
2nd moment of area Iy 1370000 mm⁴
2nd moment of area Iz 1660000 mm⁴
Max. driving torque 4.178 Nm
Max. force Fy 900 N
Max. no-load resistance to shifting 24.7 N
Max. torque Mx 59.8 Nm
Max. torque My 56.2 Nm
Max. torque Mz 56.2 Nm
Max. feed force Fx 250 N
No-load driving torque 0.413 Nm
Torsion moment of inertia It 90500 mm⁴
Mass moment of inertia JH per meter of stroke 0.1927 kgcm²
Mass moment of inertia JL per kg of payload 2.793 kgcm²
Mass moment of inertia JO 2.912 kgcm²
Feed constant 105 mm/U
Moving mass 901 g
Moving mass at 0 mm stroke 901 g
Slide weight 272 g
Additional weight per 10 mm stroke 73 g
Basic weight with 0 mm stroke 3500 g
Product weight 16611 g
Interface code, actuator T46
Material of end caps Die cast aluminum, painted
Profile material Wrought aluminum alloy, anodized
Note on materials RoHS-compliantContains paint-wetting impairment substances
Cover strip material Stainless steel strip
Drive cover material Die cast aluminum, painted
Slide carriage material Tempered steel
Guide rail material Tempered steel
Belt pulley material High-alloy stainless steel
Slide material Die-cast aluminum
Toothed belt material Polychloroprene with glass fiber
