| Drive pinion effective diameter | 24.83 mm |
|---|---|
| Working stroke | 1000 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.00124 |
| Toothed belt pitch | 3 mm |
| Type code | ELGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Symbol | 991212 |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 15 m/s² |
| Max. speed | 1.5 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| 2nd moment of area Iy | 441000 mmâ´ |
| 2nd moment of area Iz | 542000 mmâ´ |
| Max. driving torque | 1.49 Nm |
| Max. force Fy | 600 N |
| Max. no-load resistance to shifting | 15.6 N |
| Max. torque Mx | 29.1 Nm |
| Max. torque My | 31.8 Nm |
| Max. torque Mz | 31.8 Nm |
| Max. feed force Fx | 120 N |
| No-load driving torque | 0.194 Nm |
| Torsion moment of inertia It | 29800 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.0851 kgcm² |
| Mass moment of inertia JL per kg of payload | 1.5411 kgcm² |
| Mass moment of inertia JO | 0.8804 kgcm² |
| Feed constant | 78 mm/U |
| Moving mass | 482 g |
| Moving mass at 0Â mm stroke | 482 g |
| Slide weight | 139 g |
| Additional weight per 10Â mm stroke | 43 g |
| Basic weight with 0Â mm stroke | 1775 g |
| Product weight | 6027 g |
| Interface code, actuator | T42 |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Cover strip material | Stainless steel strip |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Tempered steel |
| Guide rail material | Tempered steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Die-cast aluminum |
| Toothed belt material | Polychloroprene with glass fiber |

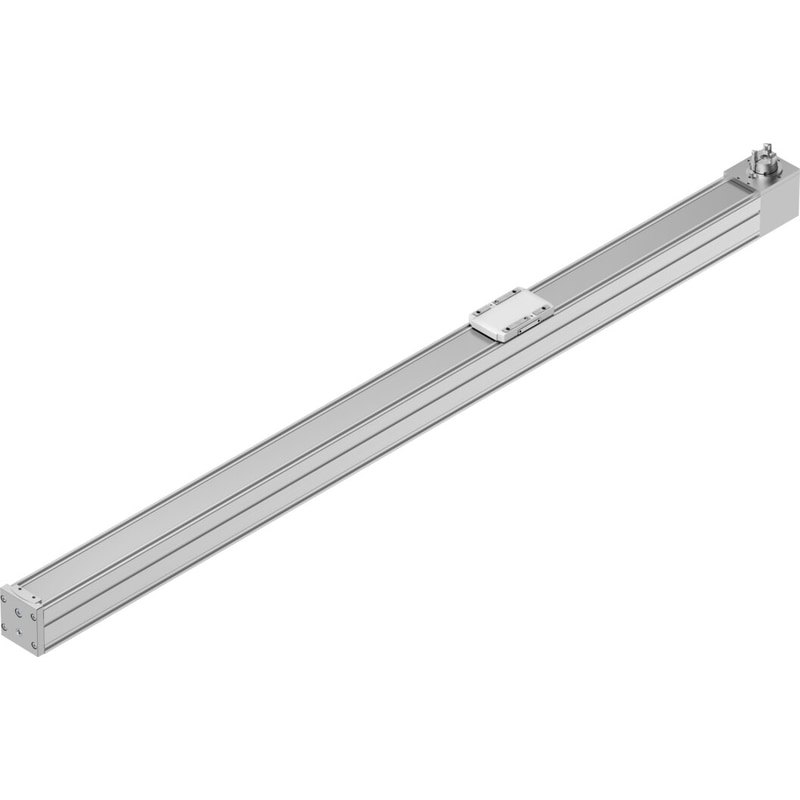

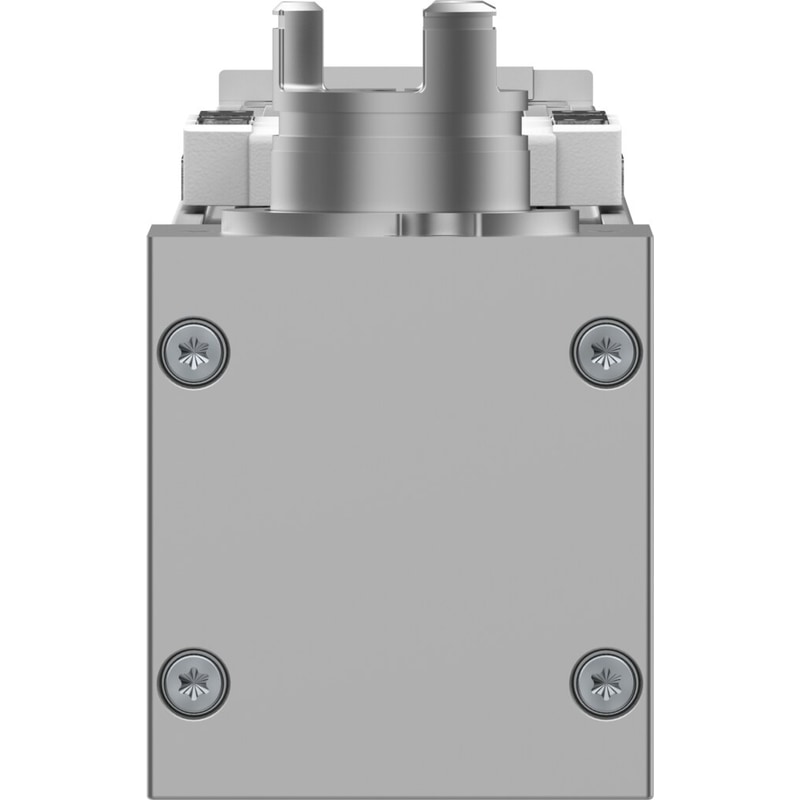

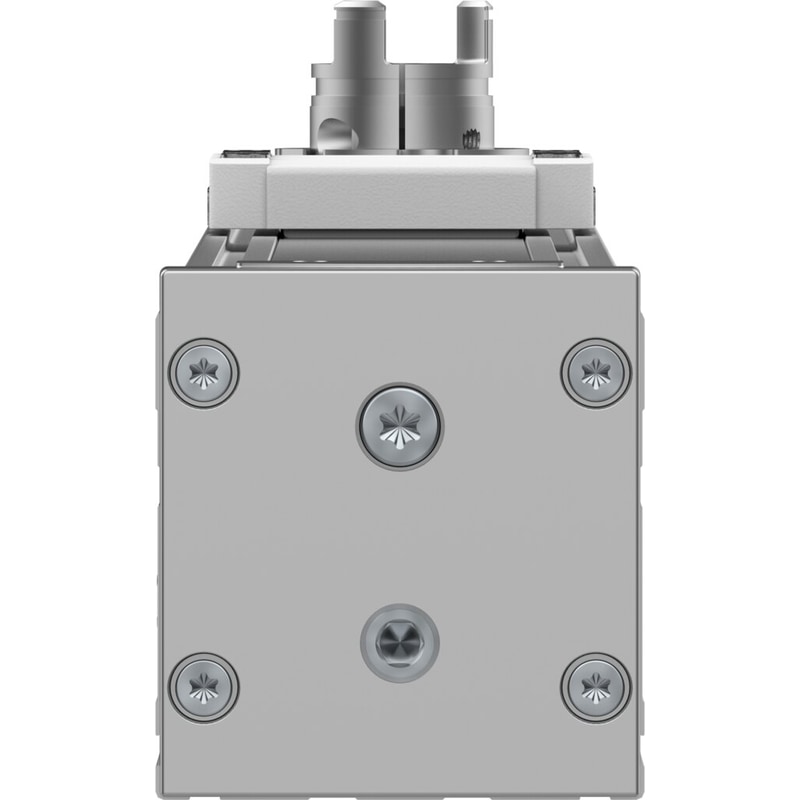

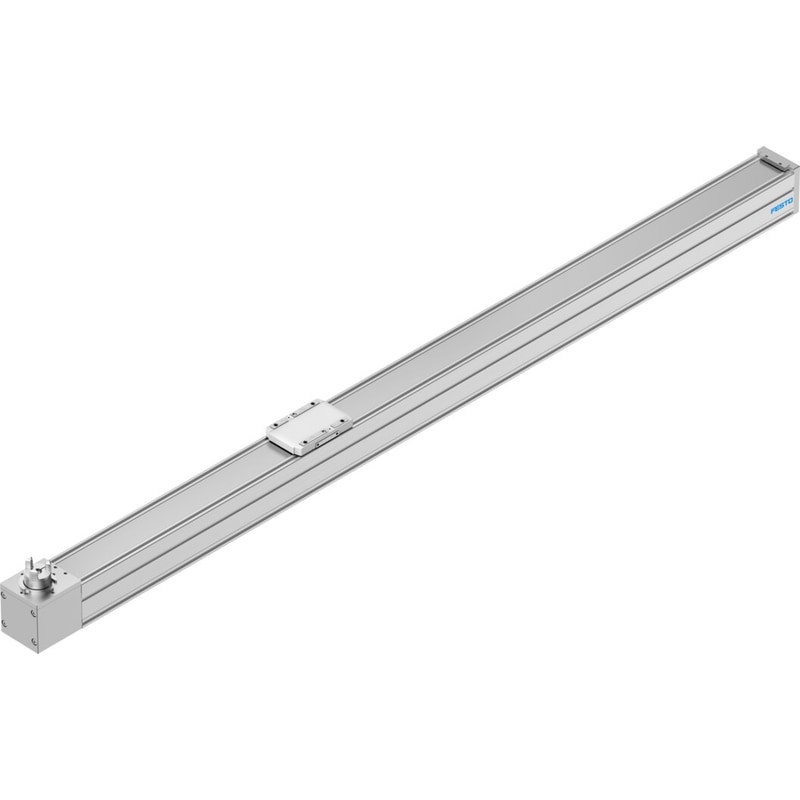

ELGC-TB-KF-60-1000
$1,040.43
The reasonably priced actuator family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more. The belt driven linear actuator offers precise, durable rail guidance.
