| Working stroke | 800 mm |
|---|---|
| Size | 80 |
| Stroke reserve | 0 mm |
| Screw diameter | 16 mm |
| Spindle pitch | 16 mm/U |
| Type code | ELGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screwElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Spindle type | Ball screw drive |
| Symbol | 991211 |
| Max. acceleration | 15 m/s² |
| Max. rotational speed | 3750 1/min |
| Max. speed | 1 m/s |
| Repetition accuracy | ±0.01 mm |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| 2nd moment of area Iy | 1370000 mmâ´ |
| 2nd moment of area Iz | 1660000 mmâ´ |
| No-load torque at maximum travel speed | 0.396 Nm |
| No-load torque at minimum travel speed | 0.095 Nm |
| Max. force Fy | 900 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 3312 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 9936 N |
| Max. torque Mx | 59.8 Nm |
| Max. torque My | 56.2 Nm |
| Max. torque Mz | 56.2 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 220 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
| Max. feed force Fx | 350 N |
| Torsion moment of inertia It | 90500 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.35257 kgcm² |
| Mass moment of inertia JL per kg of payload | 0.064846 kgcm² |
| Mass moment of inertia JO | 0.07856 kgcm² |
| Feed constant | 16 mm/U |
| Moving mass | 978 g |
| Additional weight per 10Â mm stroke | 88 g |
| Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
| Static deflection (load at standstill) | 0.1 % of axis length |
| Interface code, actuator | T46 |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | High-alloy stainless steel |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Slide material | Die-cast aluminum |
| Spindle nut material | Steel |
| Spindle material | Steel |
ELGC-BS

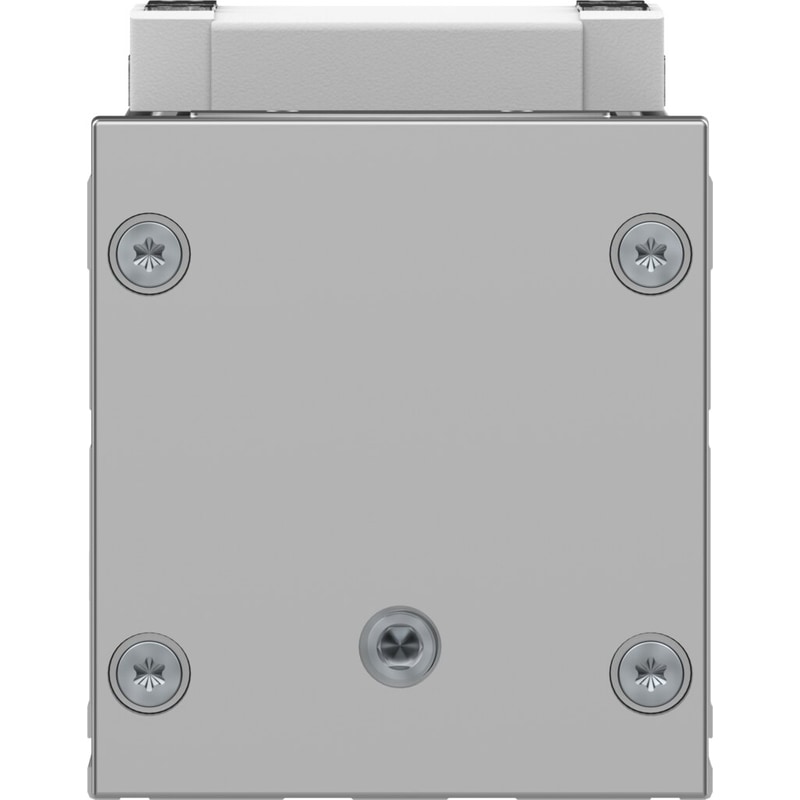

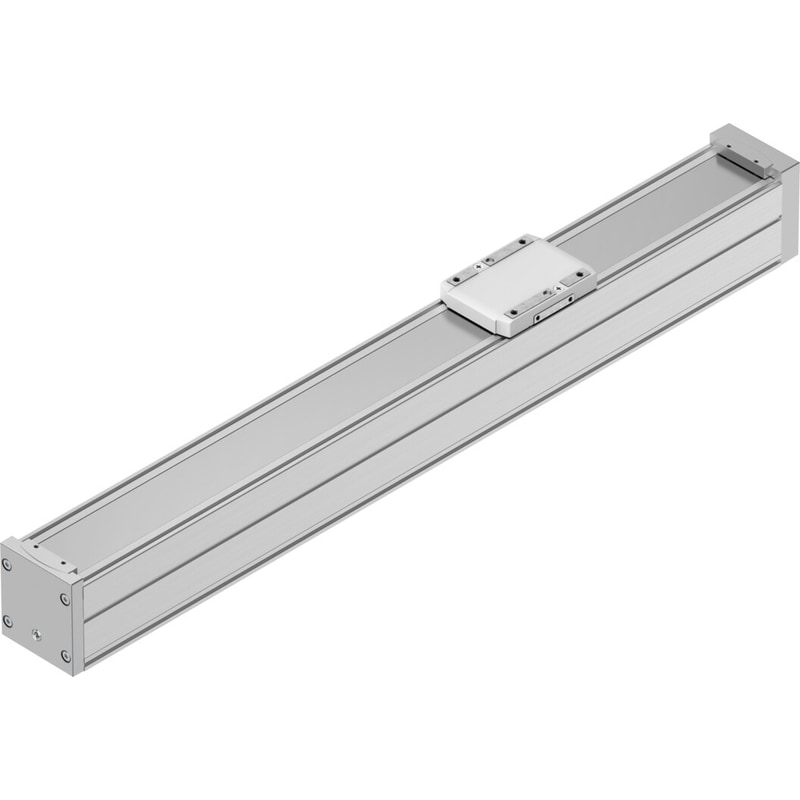

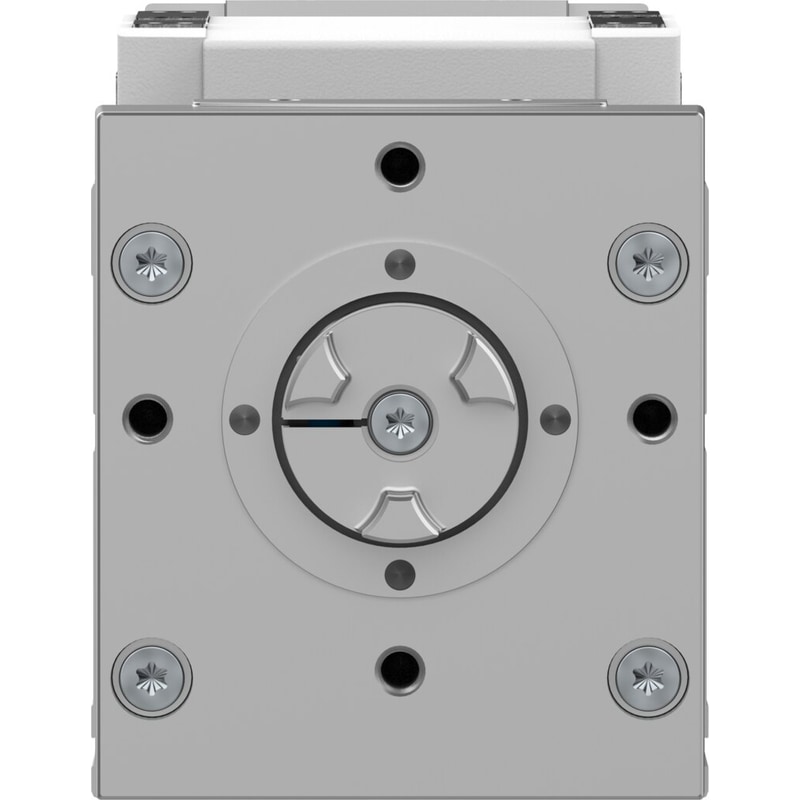

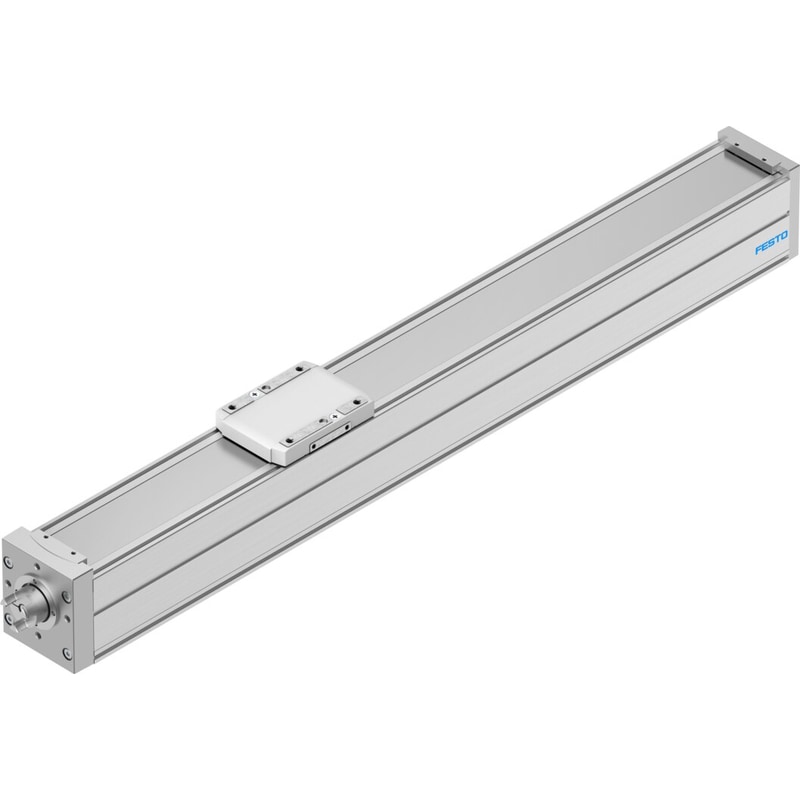

ELGC-BS-KF-80-800-16P
$1,422.67
The reasonably priced actuator family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more. The ball screw linear actuators also offer impressive guide precision and a ball screw actuator.
| Size | 80 |
|---|---|
| Max. feed force Fx | 350 N |
| Repetition accuracy | ?0.01?mm |
