Working stroke | 600 mm |
---|---|
Size | 80 |
Stroke reserve | 0 mm |
Screw diameter | 16 mm |
Spindle pitch | 16 mm/U |
Type code | ELGC |
Mounting position | Any |
Guide | Recirculating ball bearing guide |
Design | with ball screwElectromechanical linear axis |
Motor type | Servo motorStepper motor |
Spindle type | Ball screw drive |
Symbol | 991211 |
Max. acceleration | 15 m/s² |
Max. rotational speed | 3750 1/min |
Max. speed | 1 m/s |
Repetition accuracy | ±0.01 mm |
Degree of protection | IP40 |
Ambient temperature | 0 °C … 50 °C |
2nd moment of area Iy | 1370000 mmâ´ |
2nd moment of area Iz | 1660000 mmâ´ |
No-load torque at maximum travel speed | 0.396 Nm |
No-load torque at minimum travel speed | 0.095 Nm |
Max. force Fy | 900 N |
Fy with theoretical service life of 100 km (from a guide perspective only) | 3312 N |
Fz with theoretical service life of 100 km (from a guide perspective only) | 9936 N |
Max. torque Mx | 59.8 Nm |
Max. torque My | 56.2 Nm |
Max. torque Mz | 56.2 Nm |
Mx with theoretical service life of 100 km (from a guide perspective only) | 220 Nm |
My with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
Mz with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
Max. feed force Fx | 350 N |
Torsion moment of inertia It | 90500 mmâ´ |
Mass moment of inertia JH per meter of stroke | 0.35257 kgcm² |
Mass moment of inertia JL per kg of payload | 0.064846 kgcm² |
Mass moment of inertia JO | 0.07856 kgcm² |
Feed constant | 16 mm/U |
Moving mass | 978 g |
Additional weight per 10Â mm stroke | 88 g |
Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
Static deflection (load at standstill) | 0.1 % of axis length |
Interface code, actuator | T46 |
Material of end caps | Die cast aluminum, painted |
Profile material | Wrought aluminum alloy, anodized |
Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
Cover strip material | High-alloy stainless steel |
Drive cover material | Die cast aluminum, painted |
Slide carriage material | Steel |
Guide rail material | Steel |
Slide material | Die-cast aluminum |
Spindle nut material | Steel |
Spindle material | Steel |

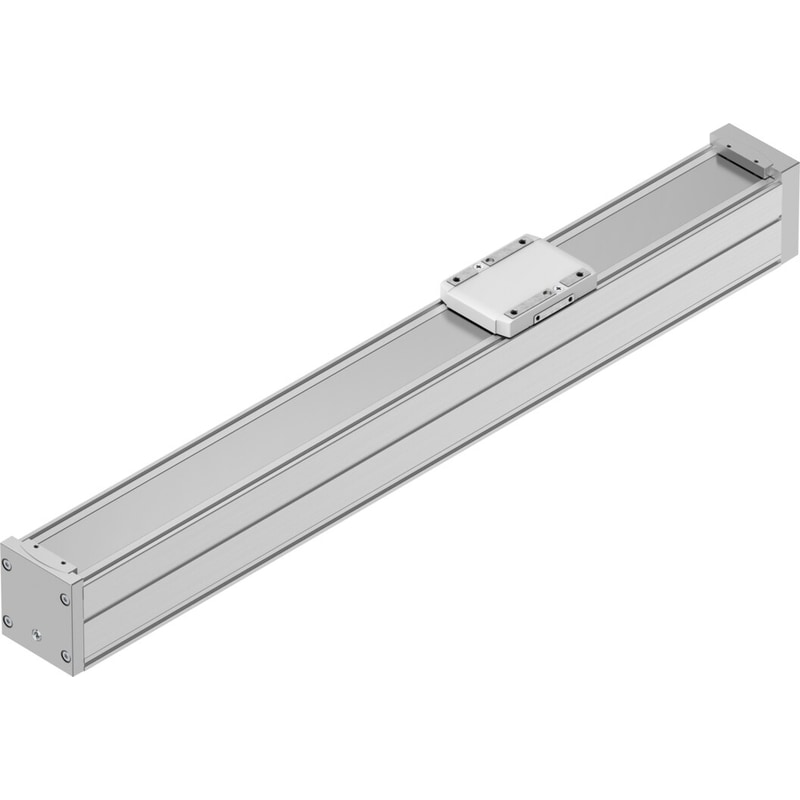

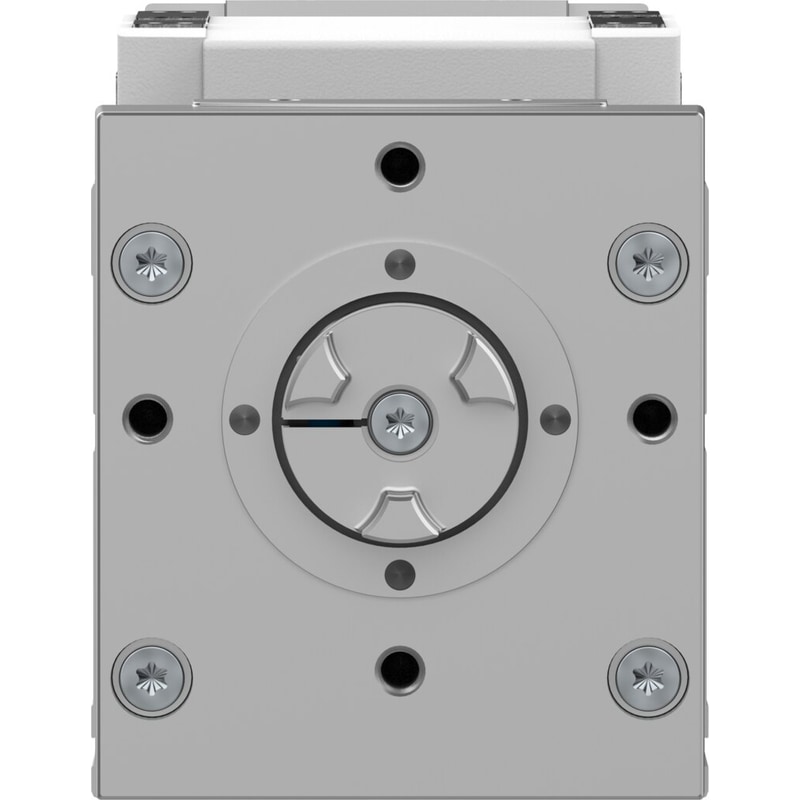

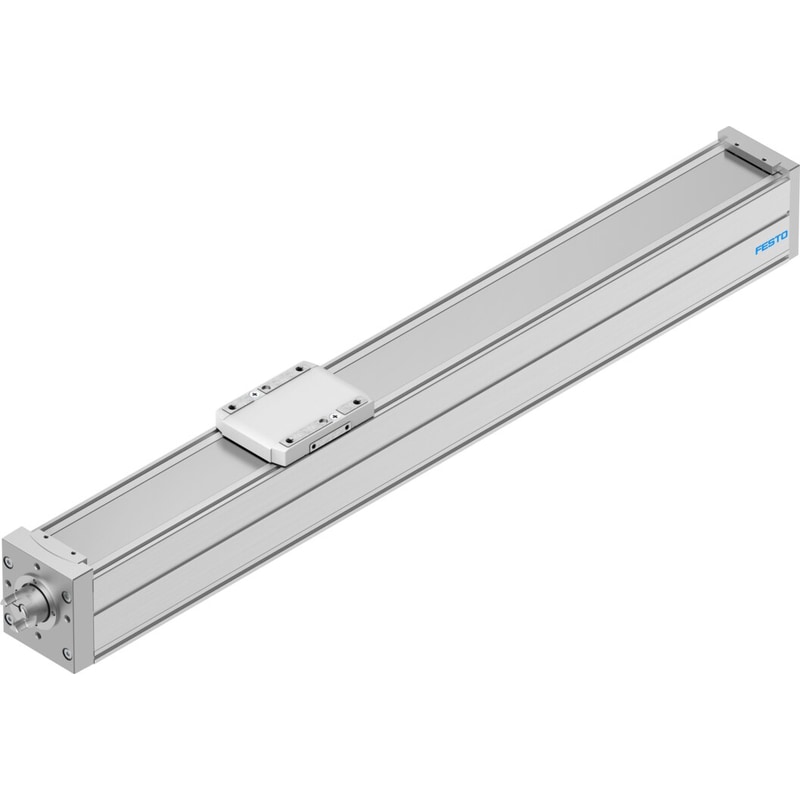

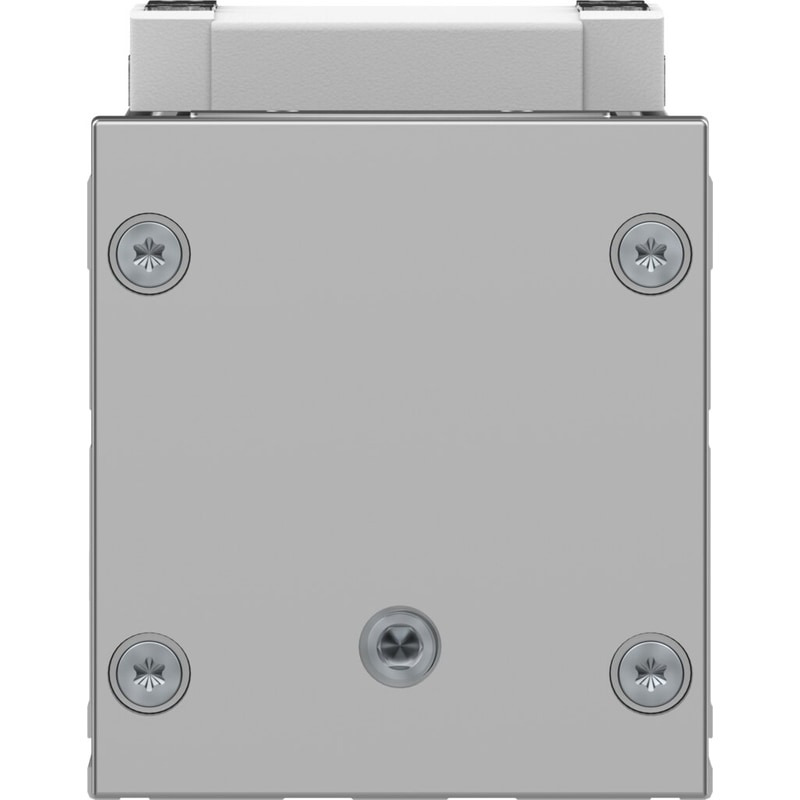

ELGC-BS-KF-80-600-16P
$1,321.88
The reasonably priced actuator family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more. The ball screw linear actuators also offer impressive guide precision and a ball screw actuator.
