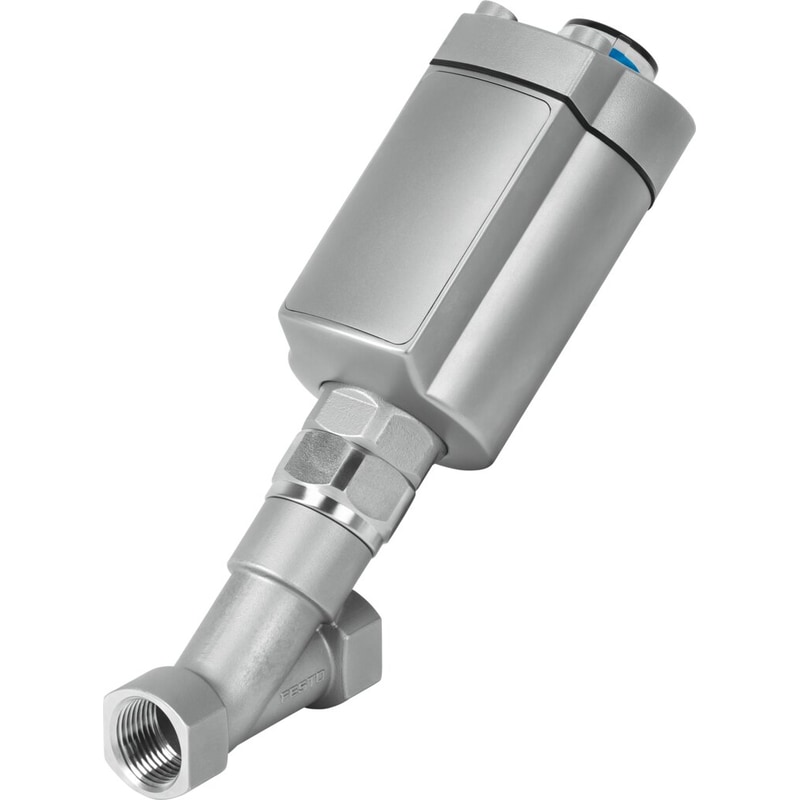

VZXA-A-TS7-1″-M2-V14T-16-K-75-20-PR-V4

$753.00

SKU: 8060522
UNSPSC: 40141603
GTIN: 4052568290412

SKU: 8060522 Category: Tag: Brand:

The rugged, all-purpose VZXF angle seat valve is ideal for any application requiring open-loop control of media flows—whether gaseous, liquid, or highly viscous.

Type codeVZXF
DesignPoppet valve with piston actuator
Actuation typePneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingLine installation
Cable connectionThreaded sleeve G2 as per DIN ISO 228
Nominal width45 mm
Valve function2/2, closed, monostable
Flow directionNon-reversible
Medium pressure0 bar … 3 bar
Nominal pressure of fitting PN40
Exhaust air functionWithout flow control option
Reset methodMechanical spring
Type of controlExternally controlled
Pneumatic connectionInternal thread G1/8
Operating pressure6 bar … 10 bar

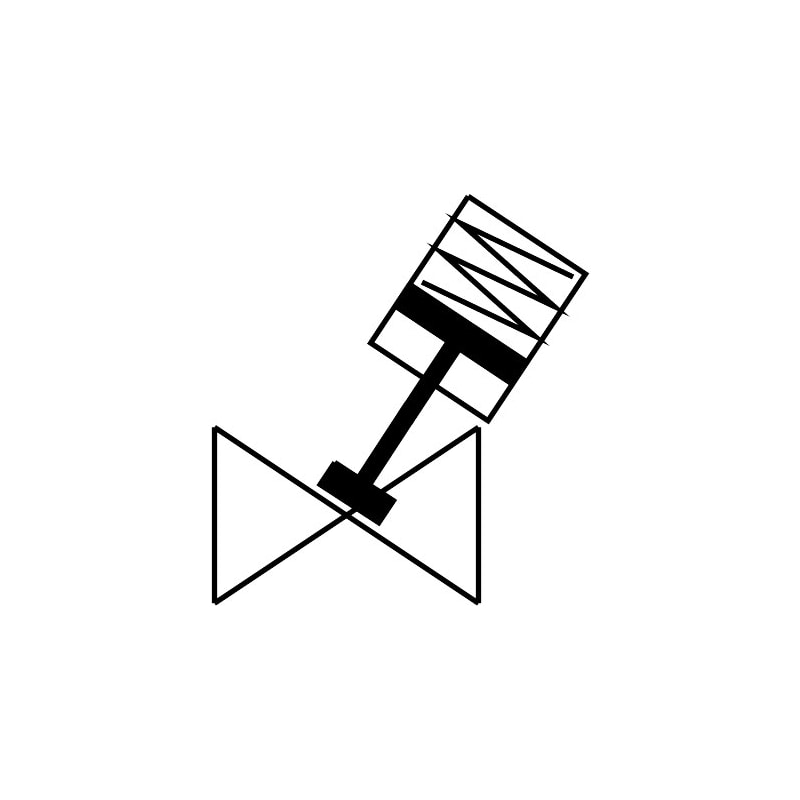

Symbol00991367
MediumFiltered compressed air, 200 µm filter meshWaterInert gasHydraulic fluid based on mineral oilMineral oilVaporNeutral liquids
Flow directionUnder valve seat, for gaseous and liquid media
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity600 mm²/s
Temperature of medium-40 °C … 200 °C
Ambient temperature-10 °C … 60 °C
Flow rate Kv19.5 m³/h
Note on materialsContains paint-wetting impairment substancesRoHS-compliant
Valve housing materialCast stainless steel
Material number, fitting housing1.4408
Spindle seal materialPTFE
Seat seal materialPTFE
Product weight3500 g
ATEX category gasII 2G
Type of ignition protection for gasc TX X
