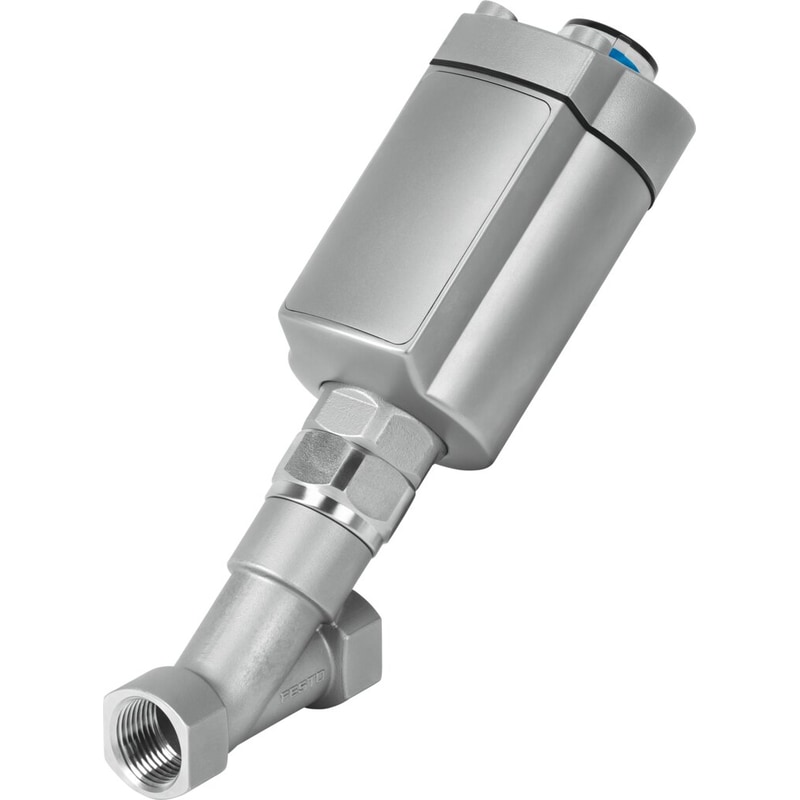

VZXA-A-TS6-20-M2-V13T-16-K-75-20-PR-V4

$448.38

SKU: 8060514
UNSPSC: 40141603
GTIN: 4052568290375

Festo

The rugged, all-purpose VZXF angle seat valve is ideal for any application requiring open-loop control of media flows—whether gaseous, liquid, or highly viscous.

Type code VZXF
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve NPT2 as per ANSI/ASME B 1.20.1
Nominal width 45 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar … 3 bar
Nominal pressure of fitting PN 40
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar … 10 bar

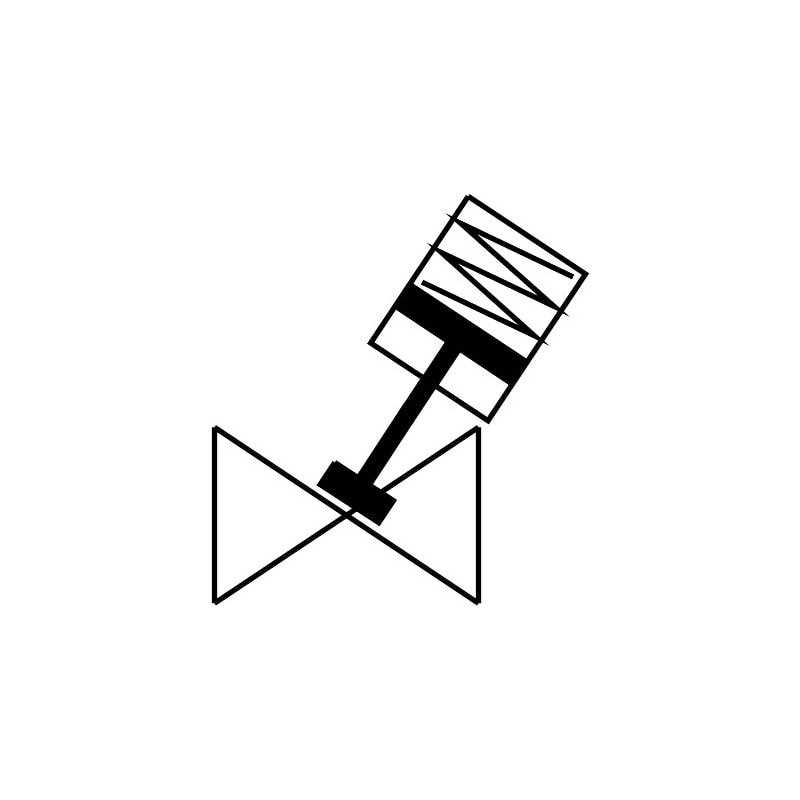

Symbol 00991367
Medium Inert gasFiltered compressed air, 200 µm filter meshHydraulic fluid based on mineral oilWaterNeutral liquidsMineral oilVapor
Flow direction Under valve seat, for gaseous and liquid media
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity 600 mm²/s
Temperature of medium -40 °C … 200 °C
Ambient temperature -10 °C … 60 °C
Flow rate Kv 19.5 m³/h
Note on materials RoHS-compliantContains paint-wetting impairment substances
Valve housing material Cast stainless steel
Material number, fitting housing 1.4408
Spindle seal material PTFE
Seat seal material PTFE
Product weight 3500 g
CE marking (see declaration of conformity) as per EU pressure equipment directive
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
