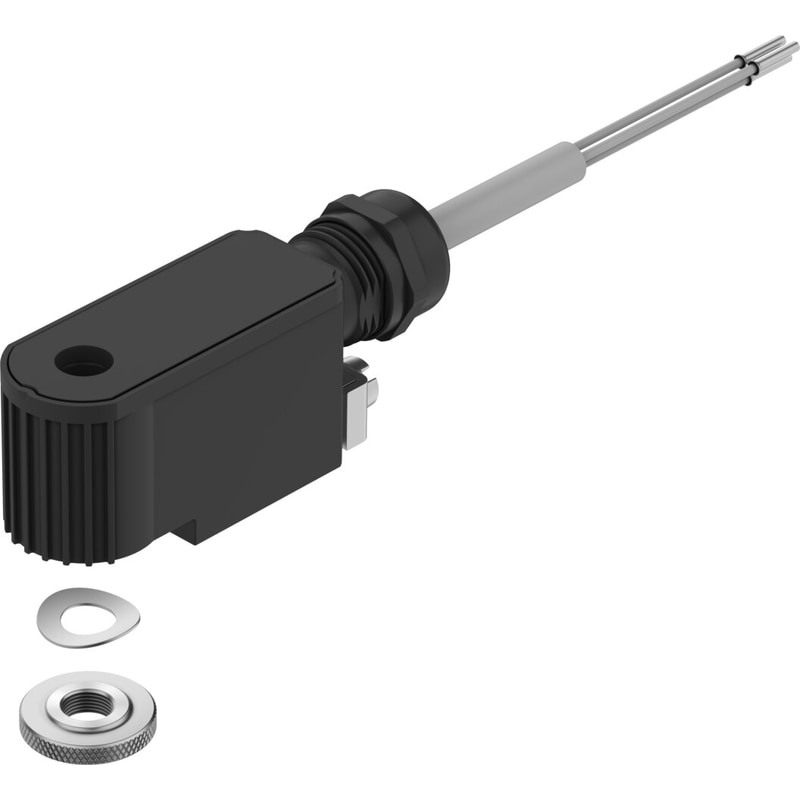

Solenoid coil VACF-B-K1-16B-5-EX4-M

Solenoid coil VACF-B-K1-16B-5-EX4-M

$244.73

SKU: 8059812
UNSPSC: 40141616
GTIN: 4052568290313

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 8059812 Category: Tag:
VACS_ENUS.PDF
Brand:

solenoid coil VACF-B-K1-16B-5-EX4-M Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Characteristic coil data=110 V AC: 50/60 Hz, power 4.18 VA

Assembly position  Any
Switching position indicator  No
Min. pickup time  10 ms
Duty cycle  1
Characteristic coil data  110 V AC: 50/60 Hz, power 4.18 VA
Permissible frequency fluctuation  ‘+/- 5 %
Permissible voltage fluctuation  ‘+/- 10 %
ATEX category Gas  II 2G
Explosion ignition protection type Gas  Ex mb IIC T5 Gb
ATEX category Dust  II 2D
Explosion ignition protection type Dust  Ex mb IIIC T95°C Db
Explosion protection certification outside the EU  EPL Db (BR)EPL Db (CN)EPL Db (IEC-EX)EPL Gb (BR)EPL Gb (CN)EPL Gb (IEC-EX)
Explosion-proof ambient temperature  ‘-30°C <= Ta <= +40°C
Weight 1.218495 lbs
Dimensions 9.84252 × 8.661417 × 1.574803 in
Mounting position

Any
Switching position indication

no
Min. pick-up time

10 ms
Duty cycle

100%
Coil characteristics

110 V AC: 50/60 Hz, power 4.18 VA
Permissible frequency fluctuations

+/- 5%
Permissible voltage fluctuations

+/- 10 %
CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX), As per EU RoHS directive
UKCA marking (see declaration of conformity)

acc. to UK EX instructions, To UK RoHS instructions
Explosion protection certification outside the EU

EPL Db (BR), EPL Db (CN), EPL Db (GB), EPL Db (IEC-EX), EPL Gb (BR), EPL Gb (CN), EPL Gb (GB), EPL Gb (IEC-EX)
Explosion prevention and protection

Zone 1 (ATEX), Zone 1 (BR), Zone 1 (CN), Zone 1 (IEC-EX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority

CML22UKEX5255X, DNV17.0013X, GYJ23.1154X, IBExU 16 ATEX1146X, IECEx IBE16.0024X
ATEX category gas

II 2G
ATEX category for dust

II 2D
Type of ignition protection for gas

Ex mb IIC T5 Gb
Type of (ignition) protection for dust

Ex mb IIIC T95°C Db
Explosive ambient temperature

-30°C <= Ta <= +40°C
Corrosion resistance class (CRC)

0 – No corrosion stress
LABS (PWIS) conformity

VDMA24364-C1-L
Degree of protection

IP65
Ambient temperature

-30 °C … 40 °C
Product weight

170 g
Electrical connection

3-wire | Cable with open end
Cable length

5 m
Nominal conductor cross section

0.75 mm²
Type of mounting

With knurled nut
Note on materials

RoHS-compliant
Solenoid coil material

Aluminum, Epoxy resin, Copper, Steel
Material of winding

Copper
