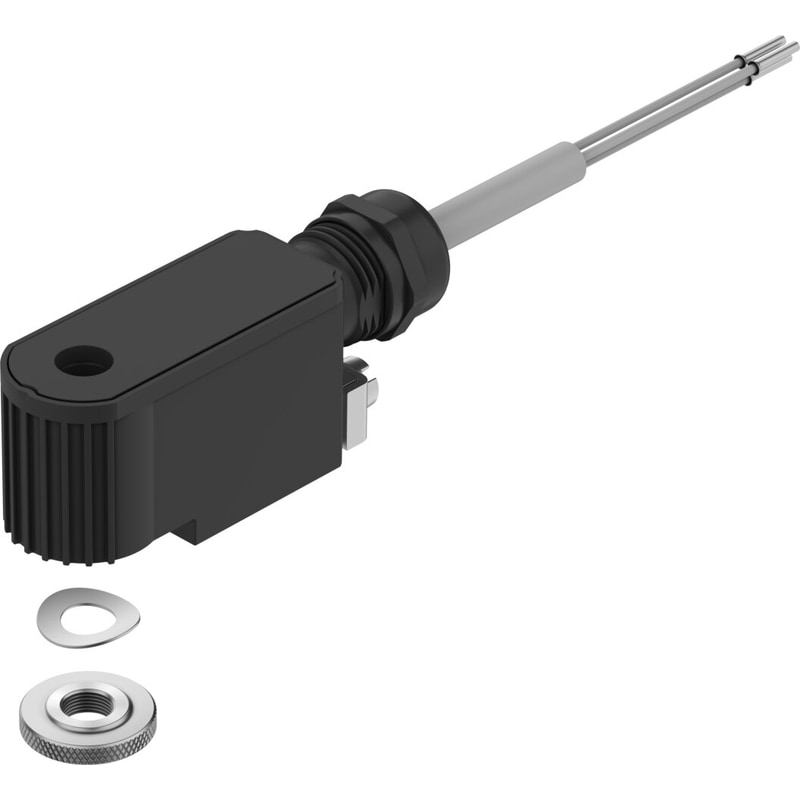

Solenoid coil VACF-B-K1-1-10-EX4-M

Name: Solenoid coil VACF-B-K1-1-10-EX4-M
Brand: Festo
SKU: 8059806
Availability: InStock

$326.51

SKU: 8059806
UNSPSC: 40141616
GTIN: 4052568290252

SKU: 8059806 Category: VACF Tag: 2021u

VACS_ENUS.PDF

Brand: Festo

solenoid coil VACF-B-K1-1-10-EX4-M Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Characteristic coil data=24VDC:4,36

Assembly position	Any
Switching position indicator	No
Min. pickup time	10 ms
Duty cycle	1
Characteristic coil data	24 V DC: 4.36 W
Permissible voltage fluctuation	‘+/- 10 %
ATEX category Gas	II 2G
Explosion ignition protection type Gas	Ex mb IIC T5 Gb
ATEX category Dust	II 2D
Explosion ignition protection type Dust	Ex mb IIIC T95°C Db
Explosion protection certification outside the EU	EPL Db (BR)EPL Db (CN)EPL Db (IEC-EX)EPL Gb (BR)EPL Gb (CN)EPL Gb (IEC-EX)
Explosion-proof ambient temperature	‘-30°C <= Ta <= +40°C
Certificate issuing department	DNV17.0013XGYJ17.1077XIBExU 16 ATEX1146XIECEx IBE16.0024X

Weight	2.056913 lbs
Dimensions	9.055118 × 8.661417 × 1.181102 in
Mounting position	Any
Switching position indication	no
Min. pick-up time	10 ms
Duty cycle	100%
Coil characteristics	24 V DC: 4.36 W
Permissible voltage fluctuations	+/- 10 %
CE marking (see declaration of conformity)	as per EU explosion protection directive (ATEX), As per EU RoHS directive
UKCA marking (see declaration of conformity)	acc. to UK EX instructions, To UK RoHS instructions
Explosion protection certification outside the EU	EPL Db (BR), EPL Db (CN), EPL Db (GB), EPL Db (IEC-EX), EPL Gb (BR), EPL Gb (CN), EPL Gb (GB), EPL Gb (IEC-EX)
Explosion prevention and protection	Zone 1 (ATEX), Zone 1 (BR), Zone 1 (CN), Zone 1 (IEC-EX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority	CML22UKEX5255X, DNV17.0013X, GYJ23.1154X, IBExU 16 ATEX1146X, IECEx IBE16.0024X
ATEX category gas	II 2G
ATEX category for dust	II 2D
Type of ignition protection for gas	Ex mb IIC T5 Gb
Type of (ignition) protection for dust	Ex mb IIIC T95°C Db
Explosive ambient temperature	-30°C <= Ta <= +40°C
Corrosion resistance class (CRC)	0 – No corrosion stress
LABS (PWIS) conformity	VDMA24364-C1-L
Degree of protection	IP65
Ambient temperature	-30 °C … 40 °C
Product weight	170 g
Electrical connection	3-wire \| Cable with open end
Cable length	10 m
Nominal conductor cross section	0.75 mm²
Type of mounting	With knurled nut
Note on materials	RoHS-compliant
Solenoid coil material	Aluminum, Epoxy resin, Copper, Steel
Material of winding	Copper

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Solenoid coil VACF-B-K1-1-10-EX4-M

Reviews

Reach Out

Connect With Us

Solenoid coil VACF-B-K1-1-10-EX4-M

Reviews

Frequently Bought Together

MFH-3-1/8-EX

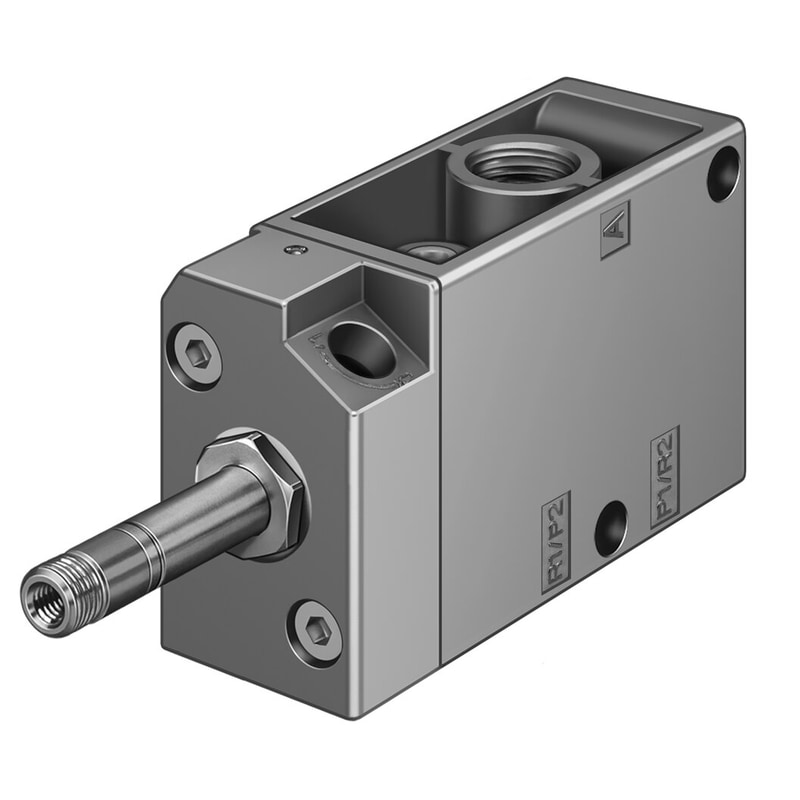

MFH-3-1/4-EX

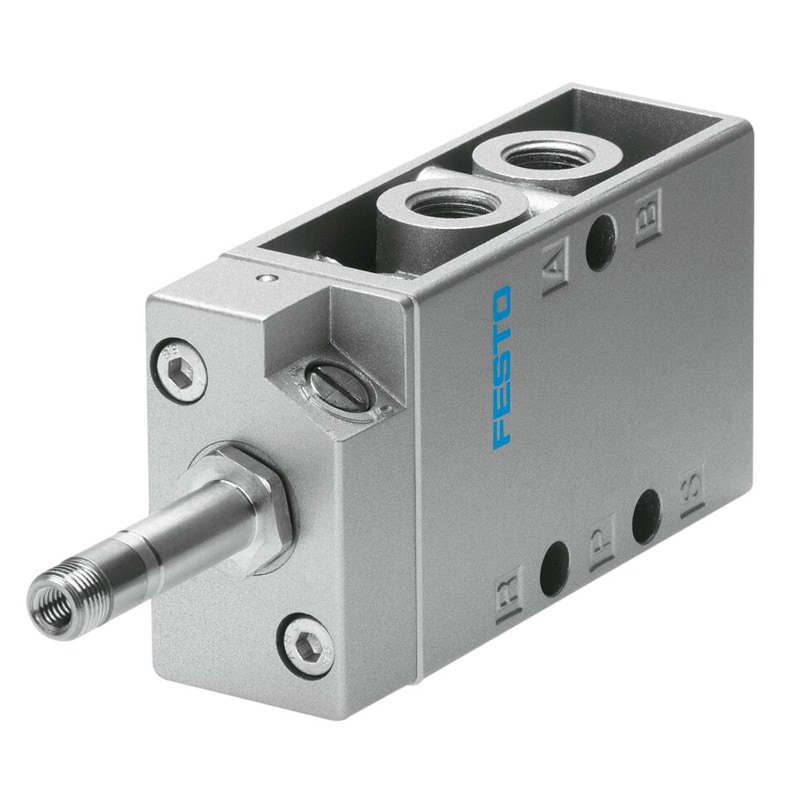

MFH-5-1/8-EX
