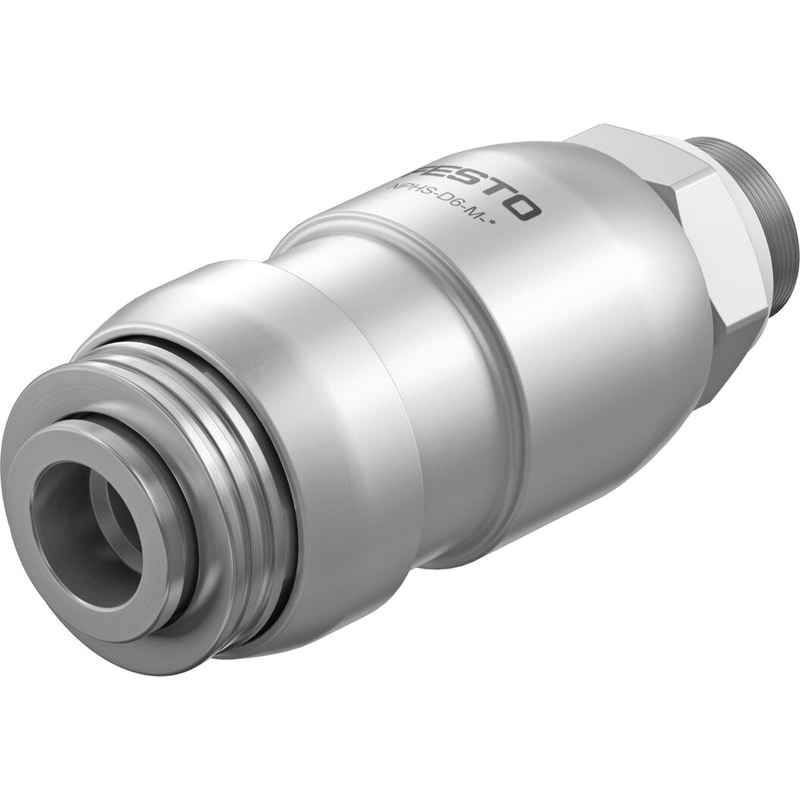

quick coupling socket NPHS-D6-M-G38 Nominal size=10 mm, Operating pressure complete temperature range=-0,95 – 20 bar, Standard nominal flow rate=2050 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Socket |
|---|---|
| Nominal size | 10 mm |
| Operating pressure complete temperature range | ‘-0.95 … 20 bar |
| Standard nominal flow rate | 2, 050 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-20 … 80 °C |
| Nominal tightening torque | 15 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 179 g |
| connection 1Â | Male thread G3/8 |
| Materials note | Conforms to RoHS |
