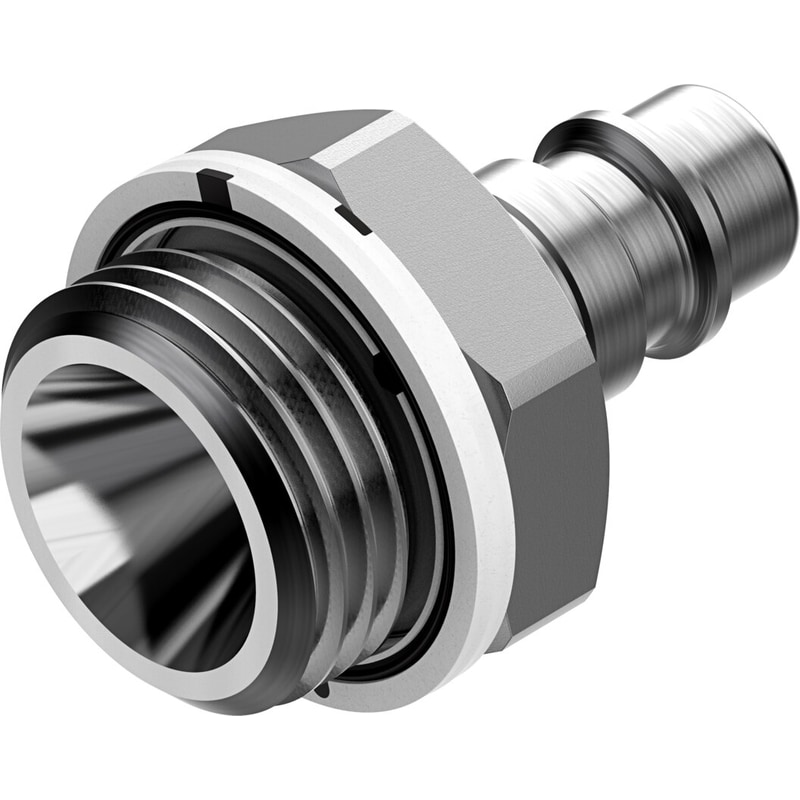

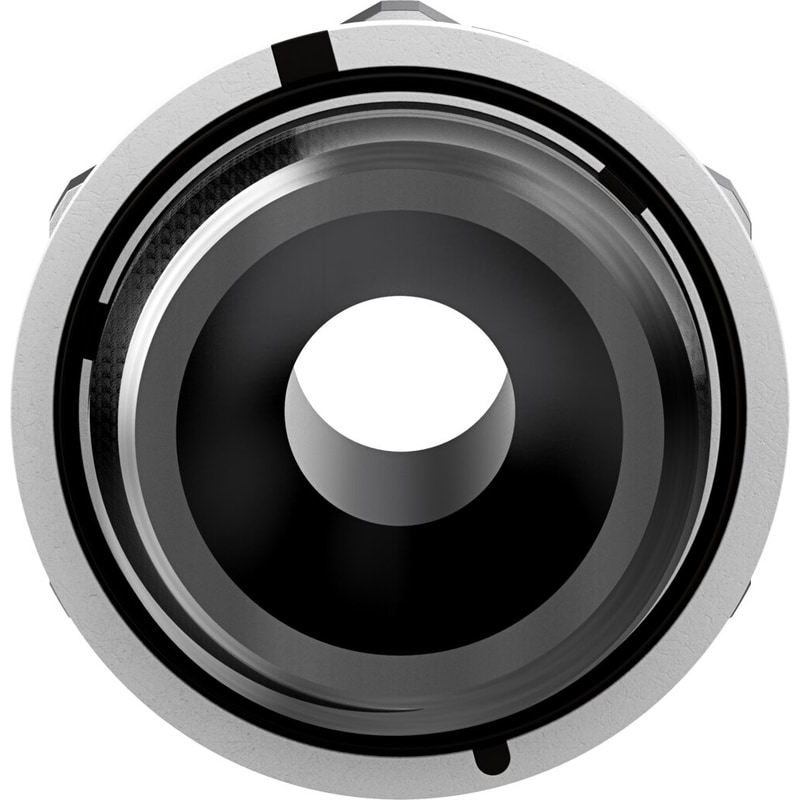

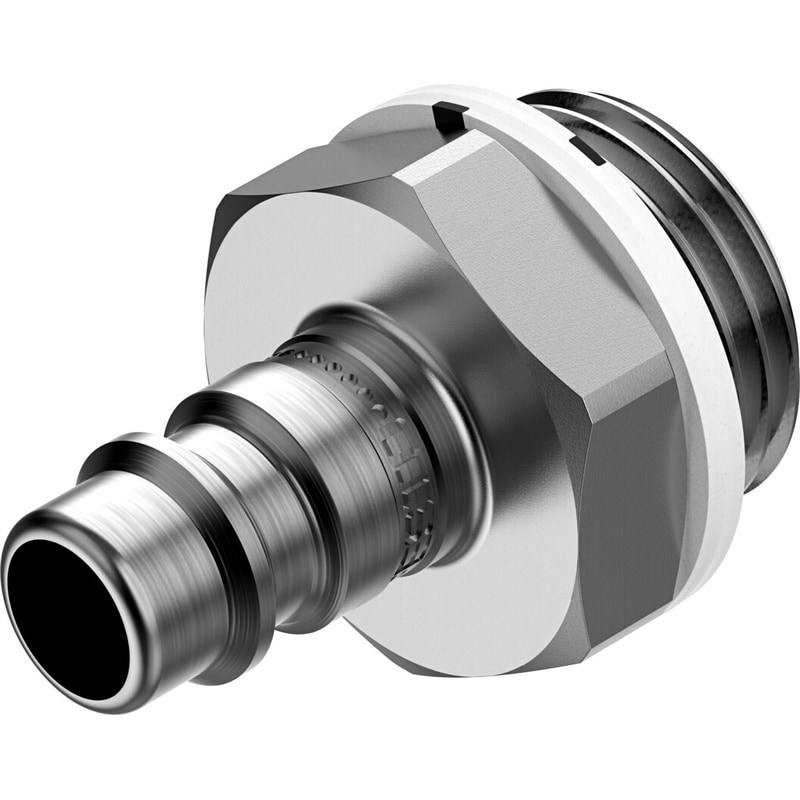

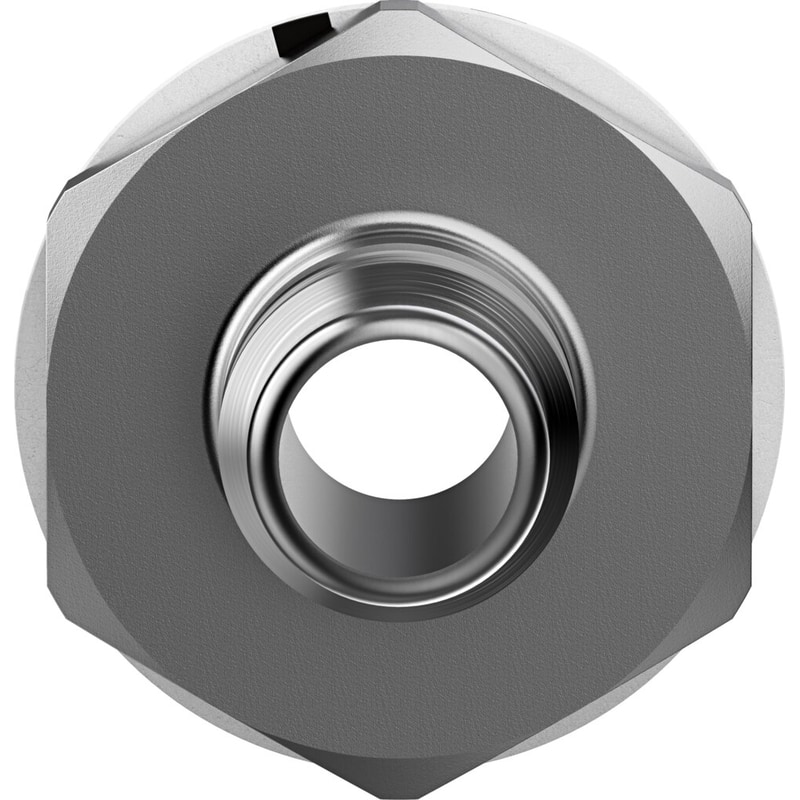

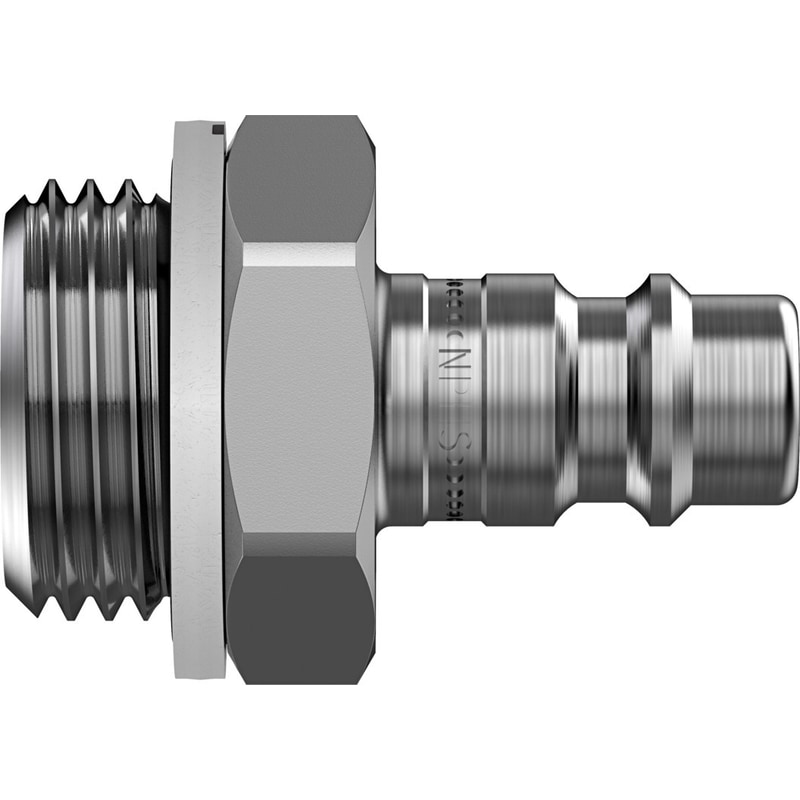

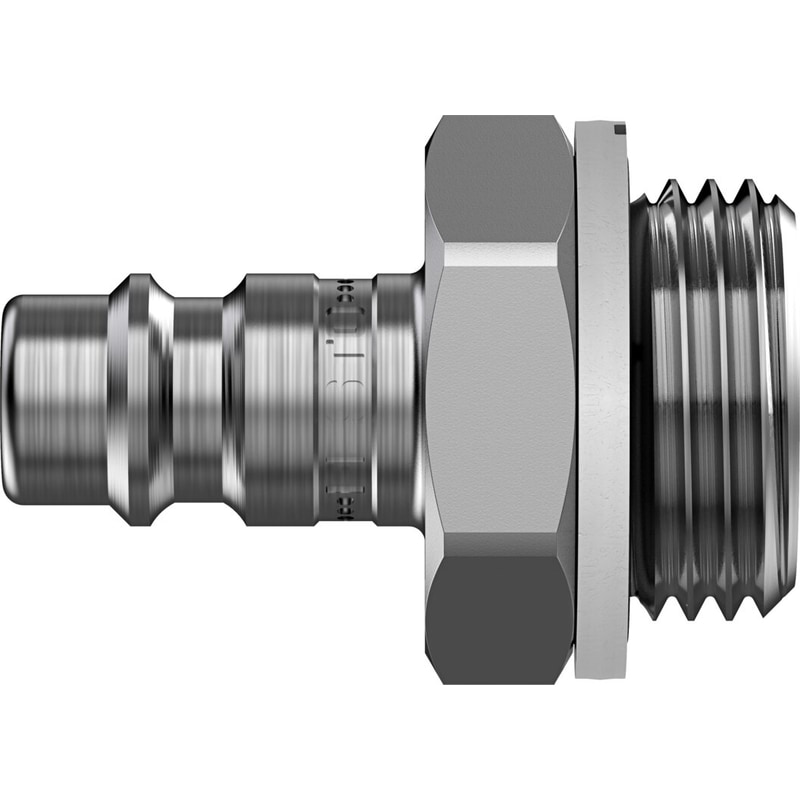

quick coupling plug NPHS-S6-M-G12 Nominal size=7,85 mm, Operating pressure complete temperature range=-0,95 – 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=0 – No corrosion stress
| Fitting Type | Quick Coupling Plug |
|---|---|
| Nominal size | 7.85 mm |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Nominal tightening torque | 14 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 50 g |
| connection 1Â | Male thread G1/2 |
| Materials note | Conforms to RoHS |
