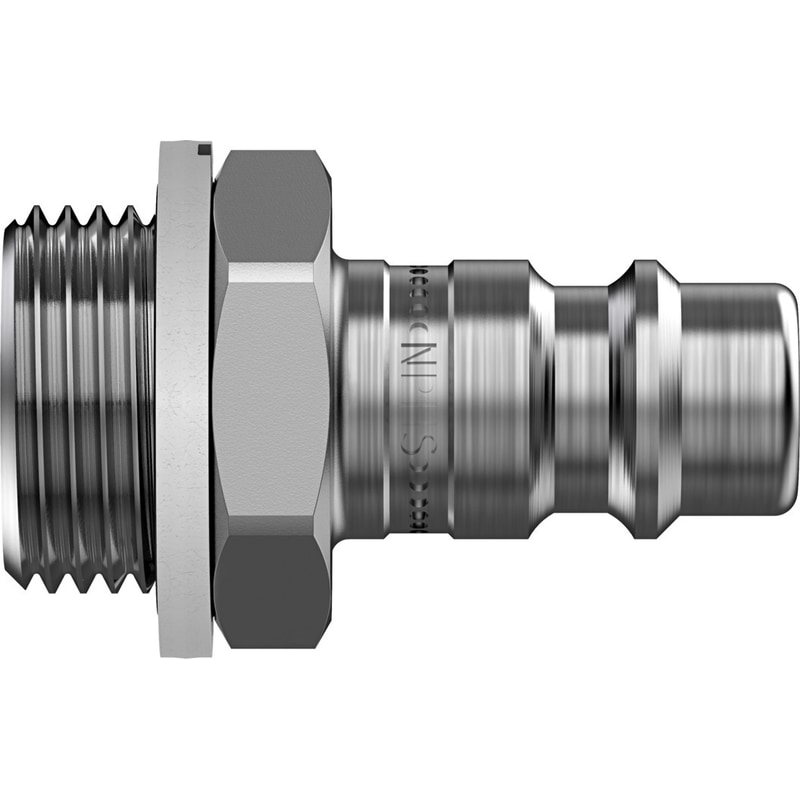

Quick coupling plug NPHS-S6-M-G38

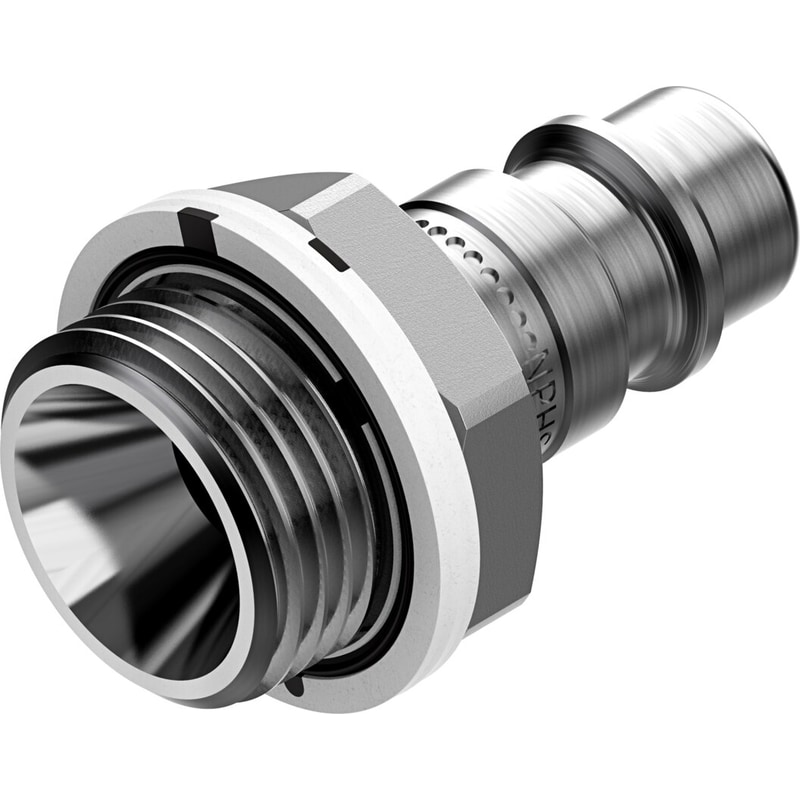

Quick coupling plug NPHS-S6-M-G38 - Image 2

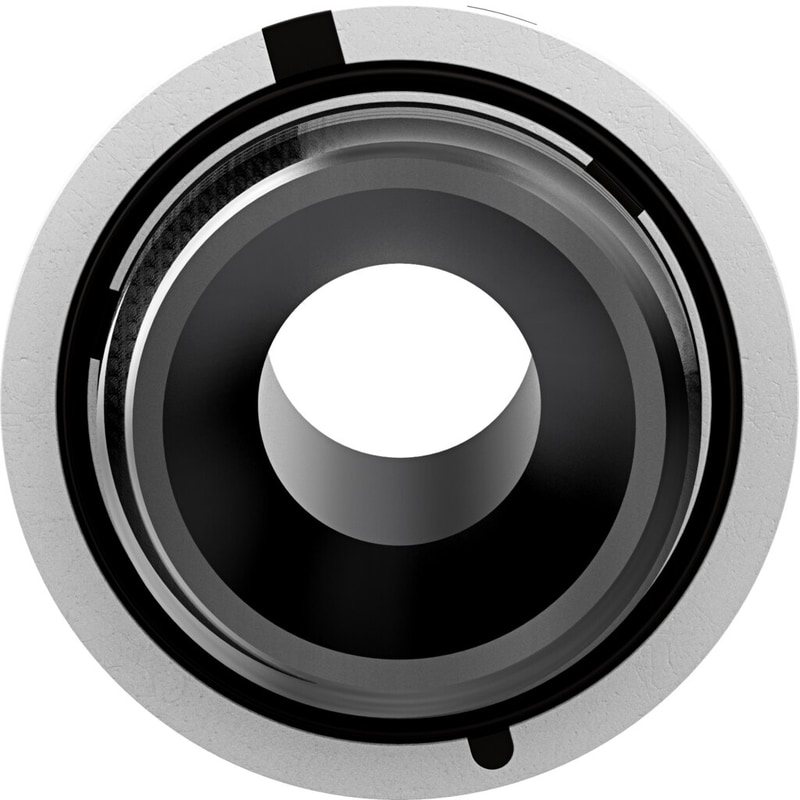

Quick coupling plug NPHS-S6-M-G38 - Image 3

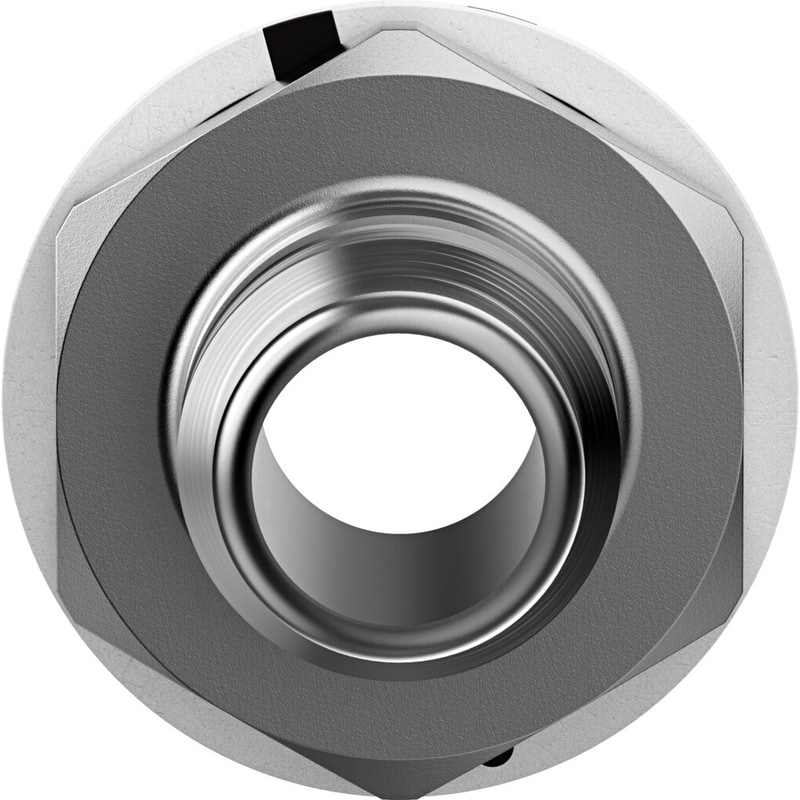

Quick coupling plug NPHS-S6-M-G38 - Image 4

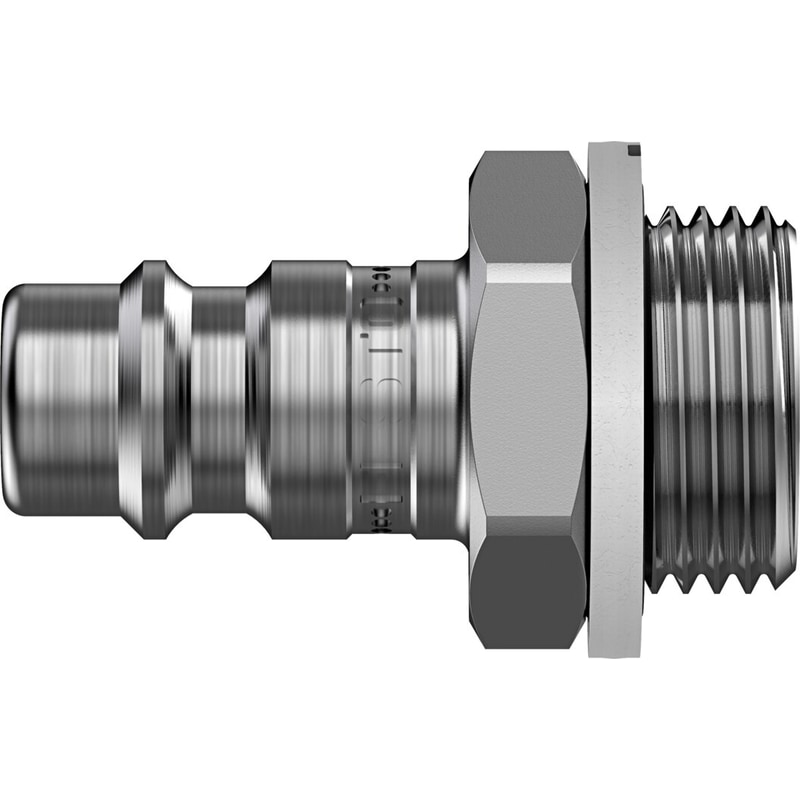

Quick coupling plug NPHS-S6-M-G38 - Image 5

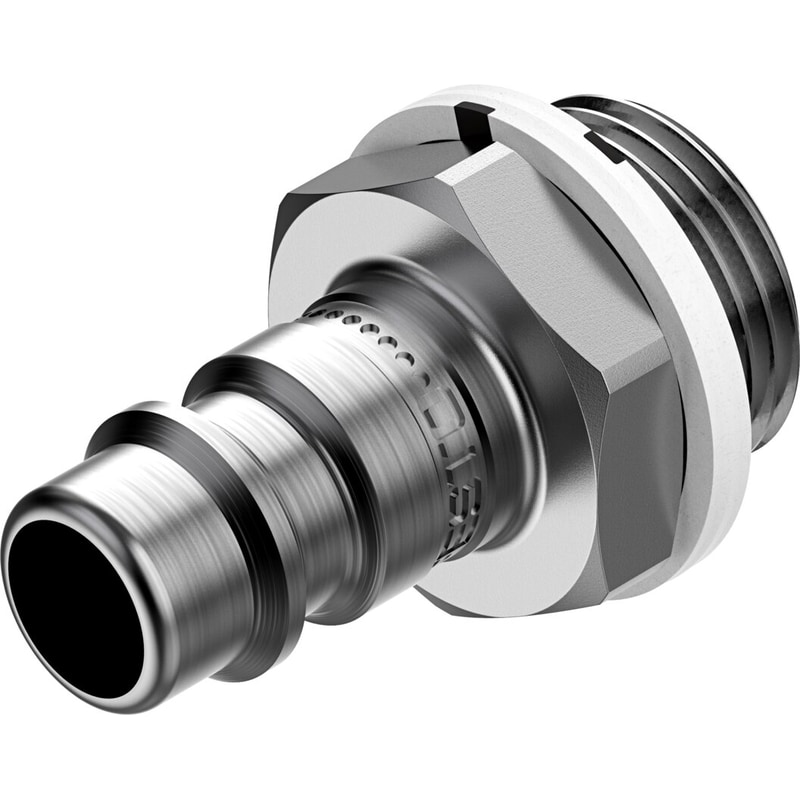

Quick coupling plug NPHS-S6-M-G38 - Image 6

Quick coupling plug NPHS-S6-M-G38

$6.74

Price per unit

Sold in packs of 10

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 8059259 Category: Tags: , ,
QUICK-COUPLINGS_ENUS.PDF
Brand:

quick coupling plug NPHS-S6-M-G38 Nominal size=7,85 mm, Operating pressure complete temperature range=-0,95 – 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=0 – No corrosion stress

Fitting Type Quick Coupling Plug
Nominal size  7.85 mm
Operating pressure complete temperature range  ‘-0.95 … 10 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-10 … 60 °C
Nominal tightening torque  12.5 Nm
Tolerance for nominal tightening torque  ± 20 %
Product weight  27 g
connection 1  Male thread G3/8
Materials note  Conforms to RoHS
Weight 0.057616 lbs
Dimensions 1.377953 × 0.866142 × 0.866142 in
Nominal width

7.85 mm
Operating pressure for entire temperature range

-13.775 psi … 174 psi
Normal nominal flow rate (normalized to DIN 1343)

1038 l/min … 2050 l/min
Nominal flow rate standardized according to ISO 8778

1125.2 l/min … 2222.2 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media

Operation with oil lubrication possible
Corrosion resistance class (CRC)

1 – Low corrosion stress
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Ambient temperature

-10 °C … 60 °C
Nominal tightening torque

12.5 Nm
Tolerance for nominal tightening torque

± 20%
Product weight

27 g
Pneumatic connection 1

External thread G3/8
Note on materials

RoHS-compliant
Material of threaded seal

PA66-GF30/TPE-U
Information on materials

Steel, galvanized
