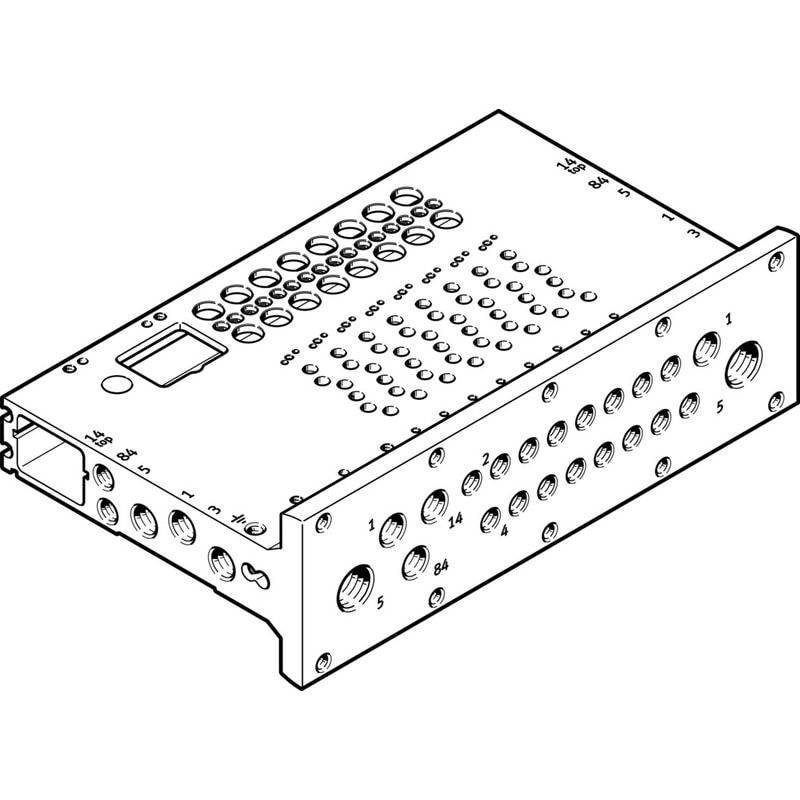

manifold rail VABM-L1-14HWS1-G14-4-GR Grid dimension=16 mm, Assembly position=Any, Max. number of valve positions=4, Corrosion resistance classification CRC=2 – Moderate corrosion stress, Storage temperature=-20 – 60 °C
| Grid dimension | 16 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 4 |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Storage temperature | ‘-20 … 60 °C |
| Authorisation | c CSA us (OL)c UL us – Recognized (OL) |
| Auxiliary pilot air port 12/14Â | M5 |
| Pilot exhaust port 82/84Â | M5 |
| Pneumatic connection, port 1Â | G1/4 |
| Pneumatic connection, port 2Â | G1/8 |
| Pneumatic connection, port 3Â | G1/4 |
| Pneumatic connection, port 4Â | G1/8 |
| Pneumatic connection, port 5Â | G1/4 |
