VABM-L1-10HWS2-G18-12-GR

$353.55

SKU: 8058339
UNSPSC: 40141616
GTIN: 4052568288839

SKU: 8058339 Category: Tag:
Festo

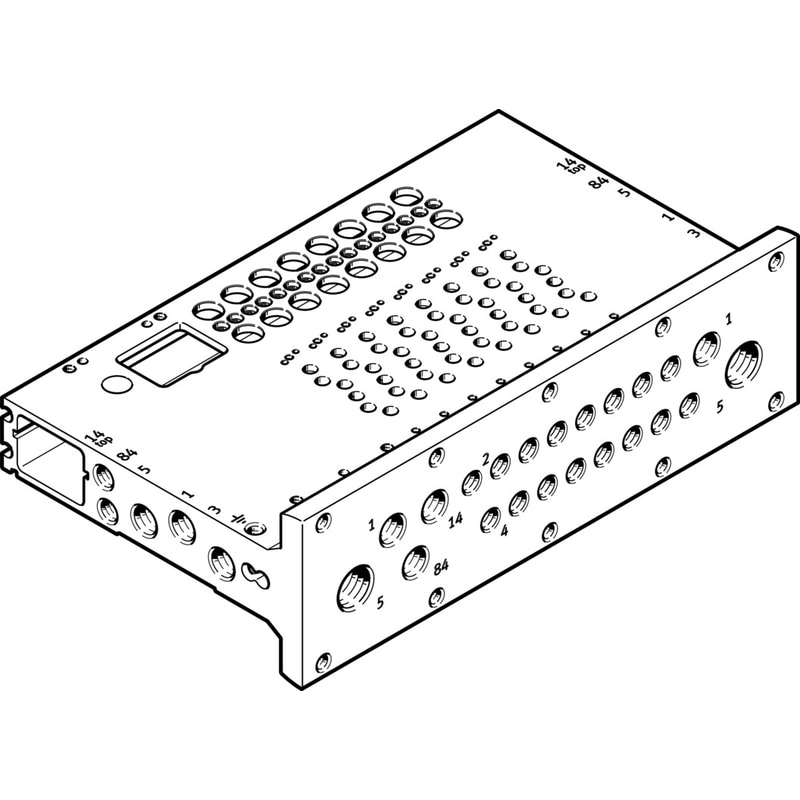

manifold rail VABM-L1-10HWS2-G18-12-GR Grid dimension=10,5 mm, Assembly position=Any, Max. number of valve positions=12, Corrosion resistance classification CRC=2 – Moderate corrosion stress, Storage temperature=-20 – 60 °C

Grid dimension  10.5 mm
Assembly position  Any
Max. number of valve positions  12
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Storage temperature  ‘-20 … 60 °C
Authorisation  c CSA us (OL)c UL us – Recognized (OL)
Auxiliary pilot air port 12/14  M5
Pilot exhaust port 82/84  M5
Pneumatic connection, port 1  G1/8
Pneumatic connection, port 2  M7
Pneumatic connection, port 3  G1/8
Pneumatic connection, port 4  M7
Pneumatic connection, port 5  G1/8
Grid dimension

10.5 mm

Assembly position

Any

Max. number of valve positions

12

Corrosion resistance classification CRC

2 – Moderate corrosion stress

Storage temperature

-20 … 60 °C

Authorisation

c CSA us (OL)c UL us – Recognized (OL)

Auxiliary pilot air port 12/14

M5

Pilot exhaust port 82/84

M5

Pneumatic connection, port 1

G1/8

Pneumatic connection, port 2

M7

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

M7

Pneumatic connection, port 5

G1/8
