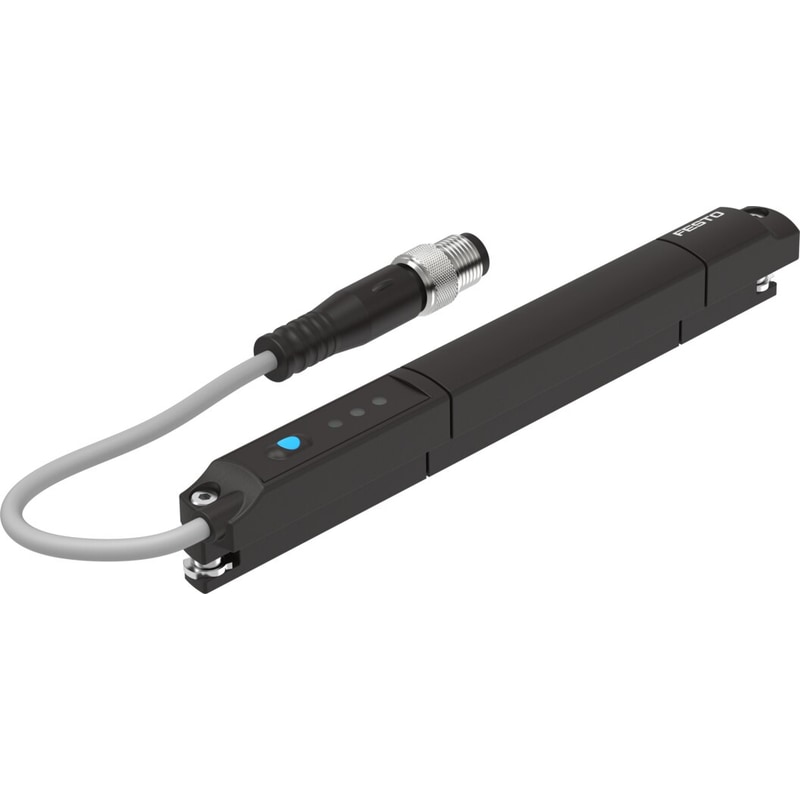

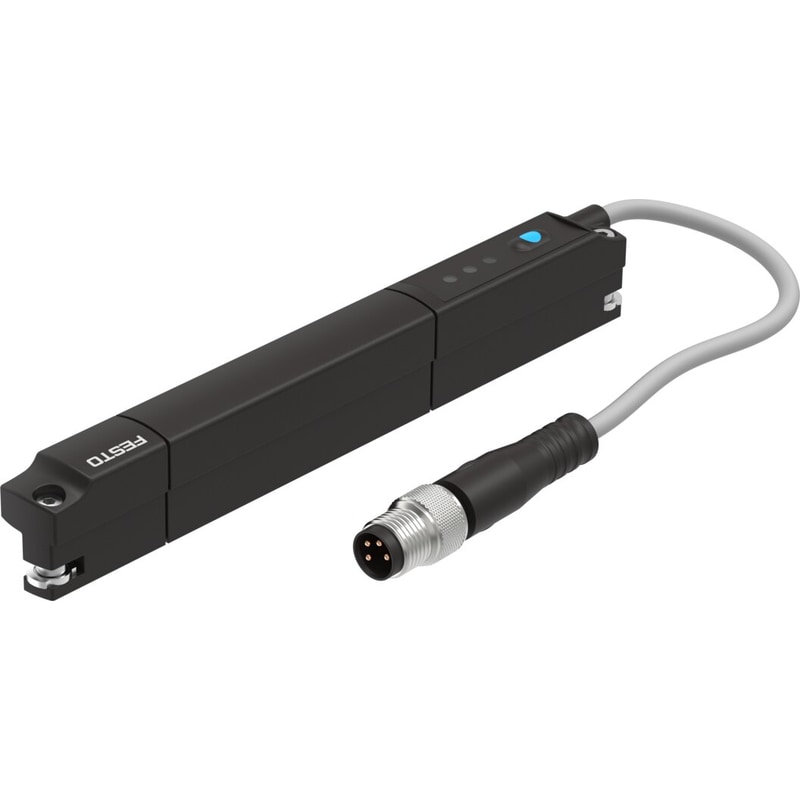

| Type code | SDAP |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |

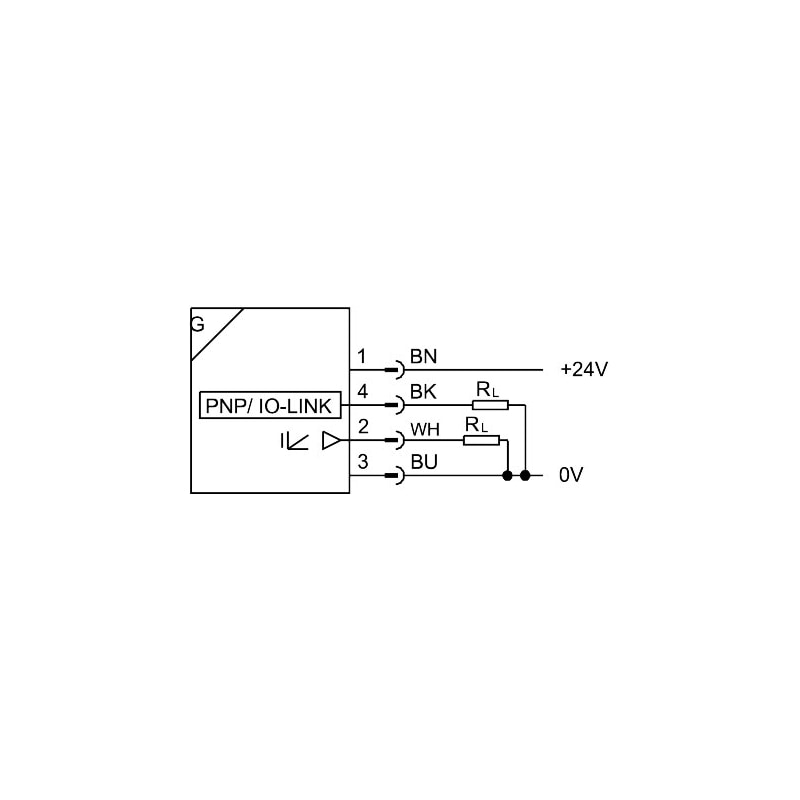

| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991171 |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995706 |
| Certification | c UL us – Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Halogen-freeRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | 0 µm … 100000 µm |
| Ambient temperature | -25 °C … 70 °C |
| Typical sampling interval | 1 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.05 mm |
| Analog output | 4 – 20 mA |
| Sensitivity | 0.16 mA/mm |
| Typical linearity error in ± mm | ±0.25 mm |
| Max. load resistance of current output | 500 Ohm |
| Overload protection | Available |
| DC operating voltage range | 15 V … 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Gold-platedCopper alloy |
| Connector cable test conditions | Flexural strength: as per Festo standardCable chain: 5 million cycles, bending radius 28 mmTorsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot from aboveScrewed tightly |
| Mounting position | Any |
| Product weight | 26 g |
| Housing material | Brass, nickel-platedHigh-alloy stainless steelPA-reinforcedPolyester |
| Material of union nut | Brass, nickel-plated |
| Film material | Polyester |
| Ready status indication | LED green |
| Status indicator | LED red |
| Ambient temperature with flexible cable installation | -20 °C … 70 °C |
| Degree of protection | IP65IP68 |
| Weight | 0.17047 lbs |
|---|---|
| Dimensions | 5.314961 × 3.543307 × 1.574803 in |
| Design | For T-slot |
| Analogue output | 4 – 20 mA |
| Displacement resolution | 0.05 mm |
