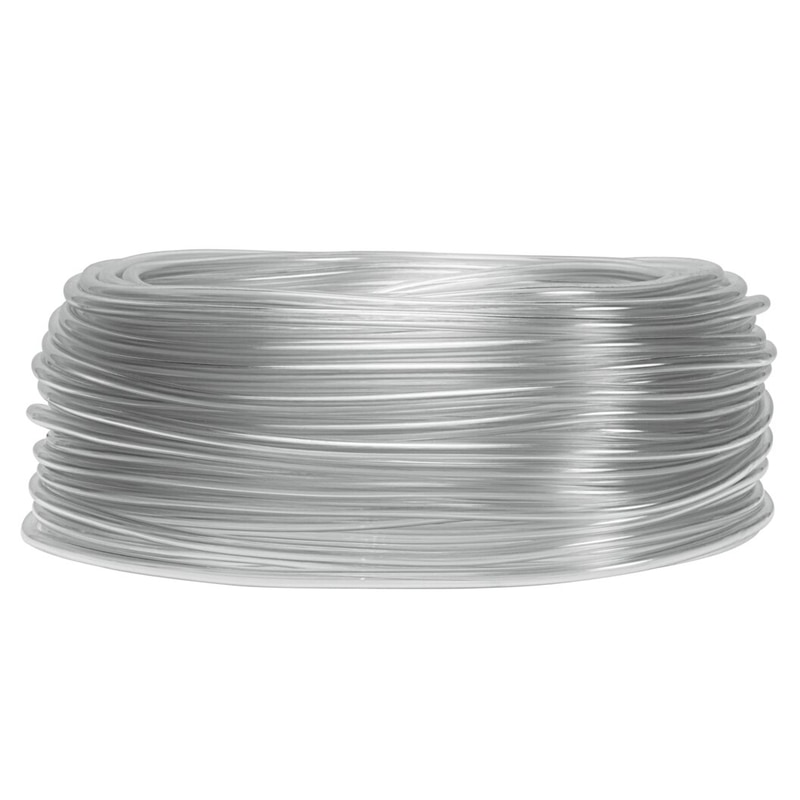

plastic tubing PUN-H-10X1,5-TBL-300 Approved for use in food processing (hydrolysis resistant) Outside diameter=10 mm, Bending radius relevant for flow rate=52 mm, Inside diameter=7 mm, Min. bending radius=28 mm, Temperature dependent operating pressure=-0,95 – 10 bar
| Outside diameter | 10 mm |
|---|---|
| Bending radius relevant for flow rate | 52 mm |
| Inside diameter | 7 mm |
| Min. bending radius | 28 mm |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing test conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature dependent operating pressure | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Ambient temperature | ‘-35 … 60 °C |
| Product weight according to length | 0.0465 kg/m |
| Pneumatic connection | For push-in connector outside diameter 10 mm |
| Color | Translucent blue |
| Shore hardness | D 52 +/-3 |
