| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Operating pressure | -0.095 MPa … 1 MPa |
| Actuation type | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating pressure | -0.95 bar … 10 bar |

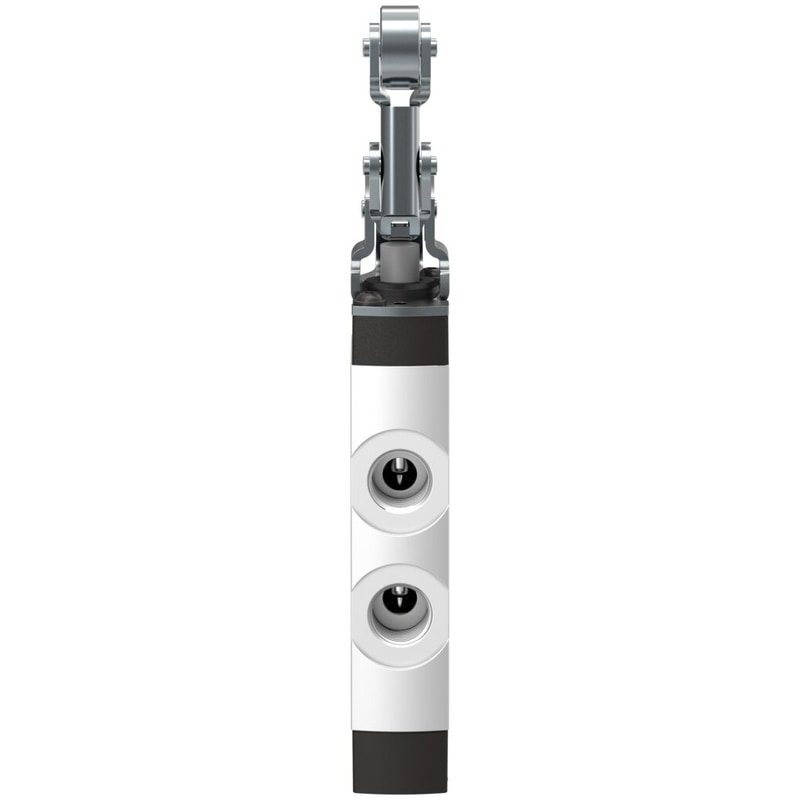

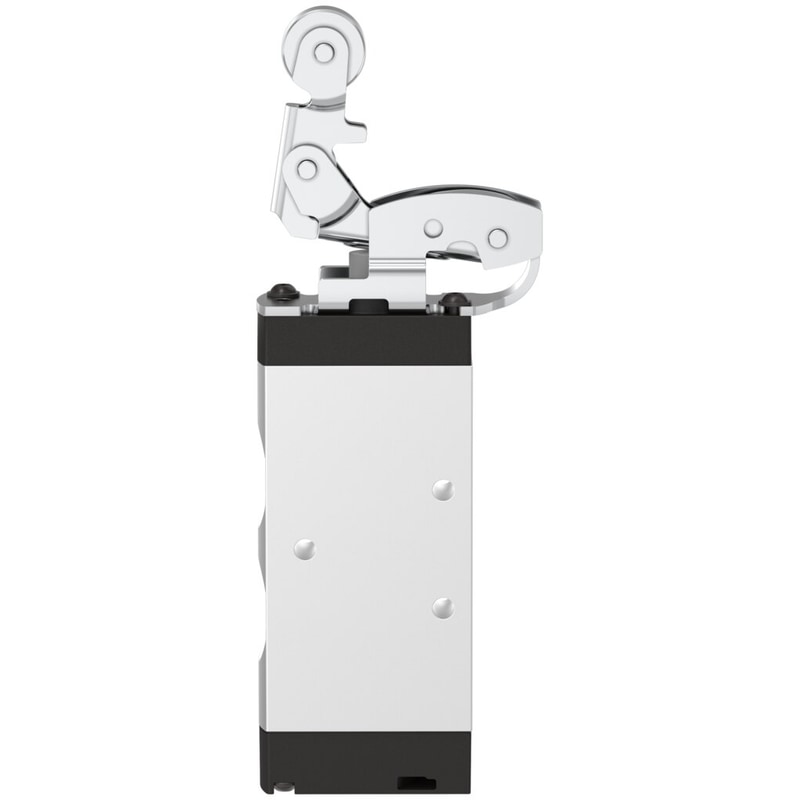

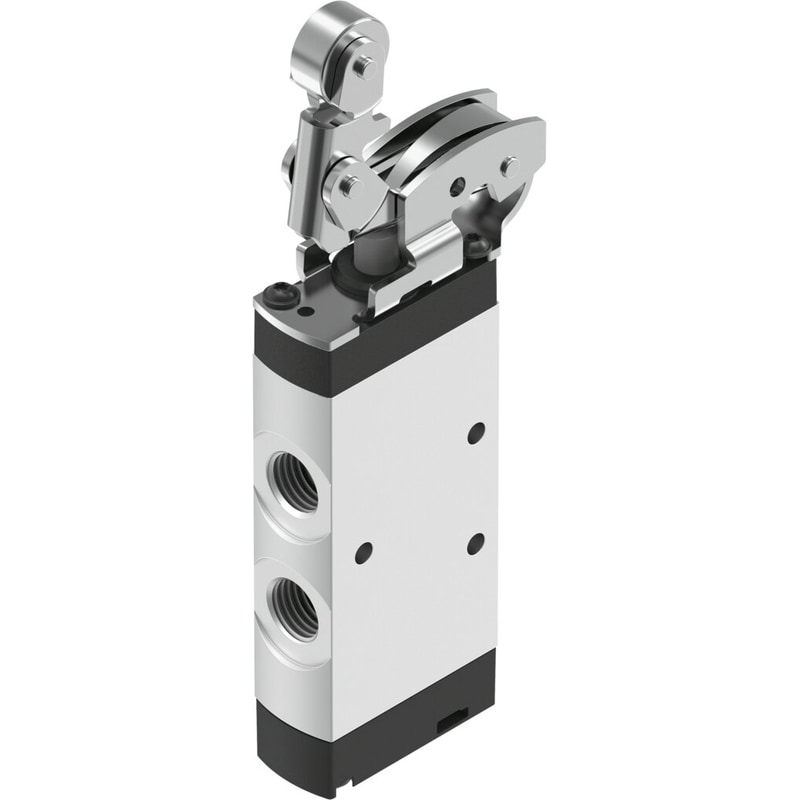

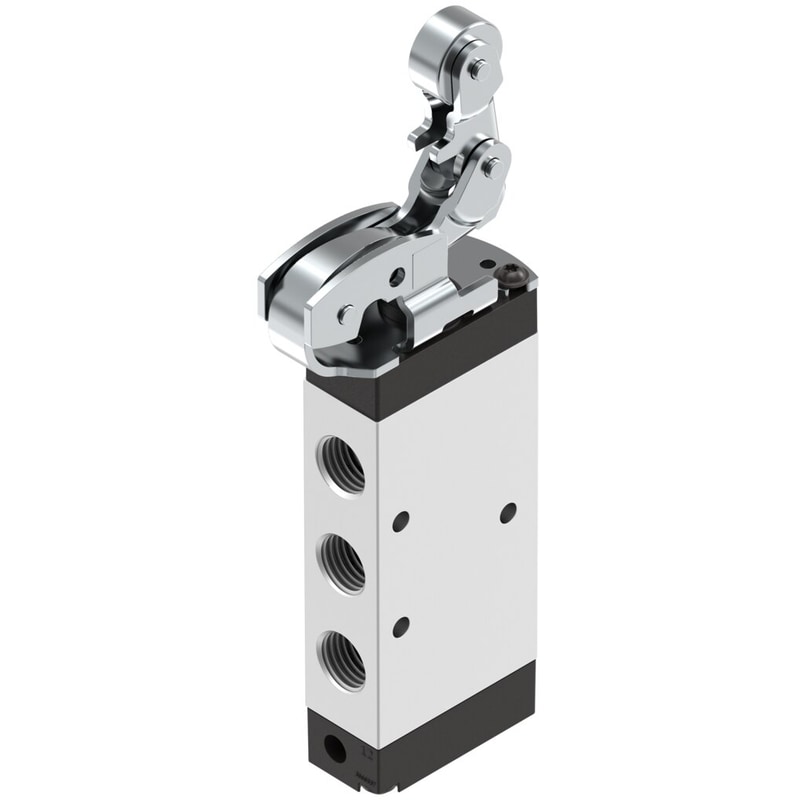

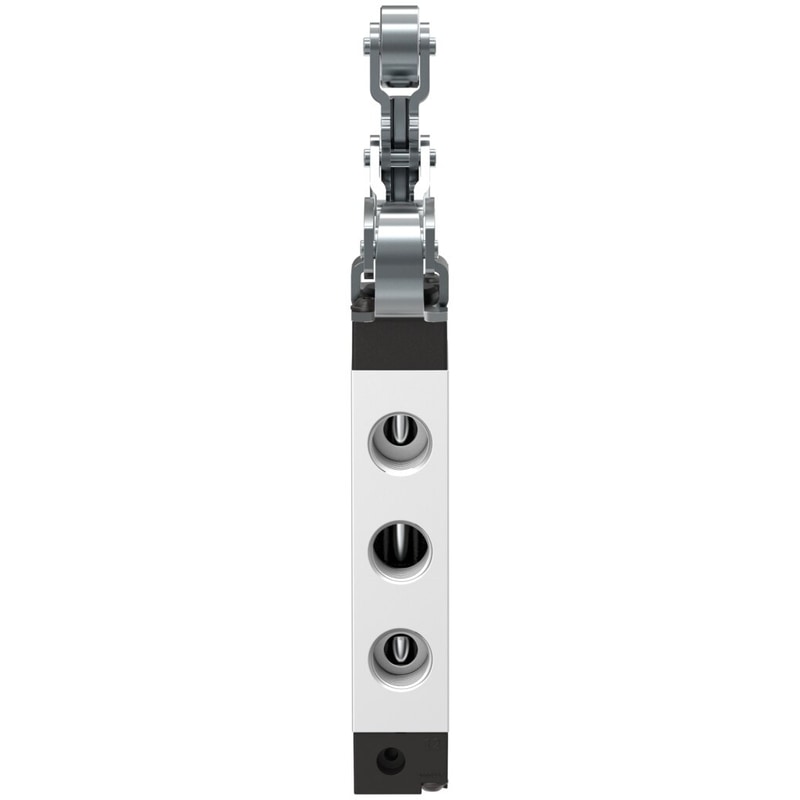

| Design | One-way roller leverPiston gate valve |
| Reset method | Mechanical spring |
| Max. stroke limit (hard) | 11.8 mm |
| Nominal width | 7 mm |
| Type code | VMEF |
| Application note | Risk of pinching |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 00992208 |
| Max. actuating speed with lateral actuation | 0.7 m/s |
| Max. switching frequency | 3 Hz |
| Cam angle | 30 deg |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Note on ambient temperature | Influence of heat on wear |
| Actuating force | 23.5 N |
| Product weight | 286 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 4 | 1/4 NPT |
| Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant |
| Actuator attachments material | Steel, galvanized |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Weight | 0.628317 lbs |
|---|---|
| Dimensions | 7.480315 × 5.905512 × 0.984252 in |
