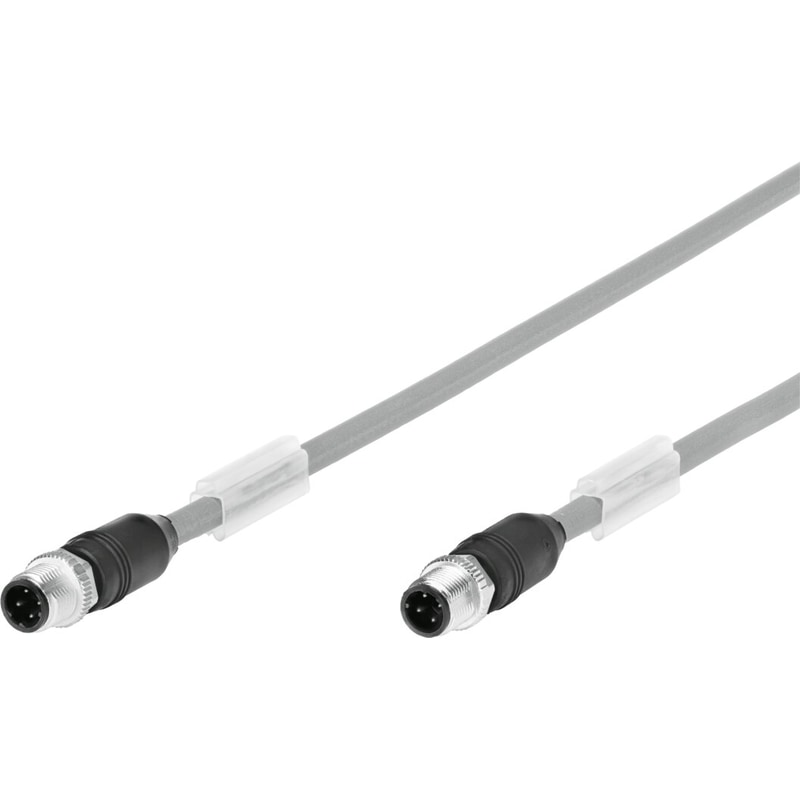

connecting cable NEBC-D12G4-ES-0.5-S-D12G4-ET Conforms to standard=EN 61076-2-101, Electrical connection 1=Straight plug, M12x1, 4-pin, D-coded, Electrical connection 2=Straight plug, M12x1, 4-pin, D-coded, Operating voltage range DC=0 – 30 V, Acceptable current load at 40°C=4 A
| Conforms to standard | EN 61076-2-101 |
|---|---|
| Electrical connection 1Â | Straight plug, M12x1, 4-pin, D-coded |
| Electrical connection 2Â | Straight plug, M12x1, 4-pin, D-coded |
| Operating voltage range DCÂ | 0 … 30 V |
| Acceptable current load at 40°C | 0.166666666666667 |
| Surge strength | 0.8 kV |
| Transmission properties | In accordance with category 5, EN 50173, class DIn accordance with category 5, ISO/IEC 11801, class D |
| Ethernet cable specification | Type: CAT 5 |
| Cable length | 0.5 m |
| Cable attribute | Suitable for chain link trunking |
| Test conditions of cable | Bending strength according to Festo standardTest conditions on requestEnergy chain: 2 million cycles, bending radius 100 mm |
| Min. cable bending radius | 100 mm |
| Cable diameter | 6.7 mm |
