signal converter SCDN-2A-EC4-PNLK-L1 Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Current, Signal range=0 – 20 mA
| Authorisation | RCM Markc UL us – Listed (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Certificate issuing department | UL E322346 |
| Materials note | Conforms to RoHS |
| Measured variable | Current |
| Signal range | 0 – 20 mA |
| Ambient temperature | 0 … 50 °C |
| Typical scanning interval | 1 ms |
| Accuracy, FSÂ | 0.5 %FS |
| Repetition accuracy in ± %FS | 0.2 %FS |

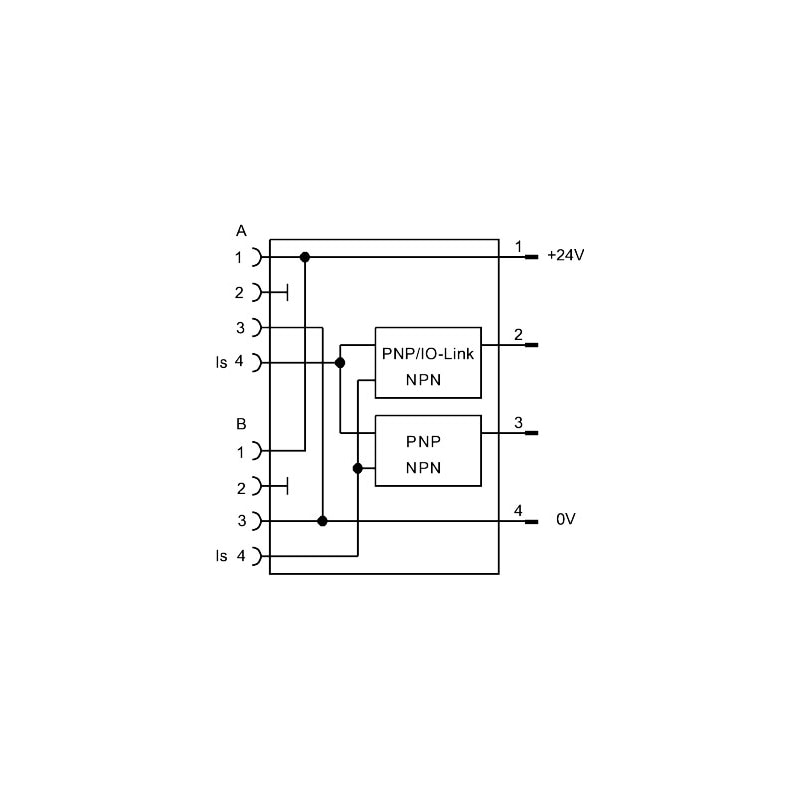

| Switch output | 2 x PNP or 2 x NPN switchable |
| Switching function | Freely programmable |
