| Valve function | 5/2, bistable |
|---|---|
| Actuation type | Electrical |
| Width | 52 mm |
| Standard nominal flow rate | 2900 l/min |
| Pneumatic working port | Sub-base, size 2 as per ISO 5599-2G1/2 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Degree of protection | NEMA 4IP65 |
| Certification | c UL us – Recognized (OL)c CSA us (OL)C-Tick |
| Width dimension | 59 mm |
| Type code | VSVA |
| Exhaust air function | Via individual sub-baseVia throttle plateWith flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-2 |
| Manual override | Covered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Any |
| Symbol | 992990 |
| Signal status display | LED |
| Pilot pressure | 3 bar … 10 bar |
| Flow rate of pneumatic valve on individual sub-base | 3400 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 2900 l/min |
| Changeover time | 18 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 1000 µs |
| Max. negative test pulse on 1 signal | 3500 µs |
| Nominal pick-up current per solenoid coil | 165 mA to 30 ms |
| Nominal current with current reduction | 35 mA after 30 ms |
| Coil characteristics | 24 V DC: 4.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Temperature of medium | -5 °C … 50 °C |
| Relative air humidity | 0 – 90 % |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 732 g |
| Electrical connection | Plug-inas per ISO 5599-2 |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 2 as per ISO 5599-2 |
| Pilot exhaust air port 82/84 | DuctedOptionally:Not ducted as per standard |
| Pneumatic connection 1 | Sub-base, size 2 as per ISO 5599-2 |
| Pneumatic connection 2 | Sub-base, size 2 as per ISO 5599-2 |
| Pneumatic connection 3 | Sub-base, size 2 as per ISO 5599-2 |
| Pneumatic connection 4 | Sub-base, size 2 as per ISO 5599-2 |
| Pneumatic connection 5 | Sub-base, size 2 as per ISO 5599-2 |
| Note on materials | RoHS-compliant |
| Seals material | NBRHNBRFPM |
| Housing material | PADie-cast aluminum |
| Material of screws | Steel, galvanized |

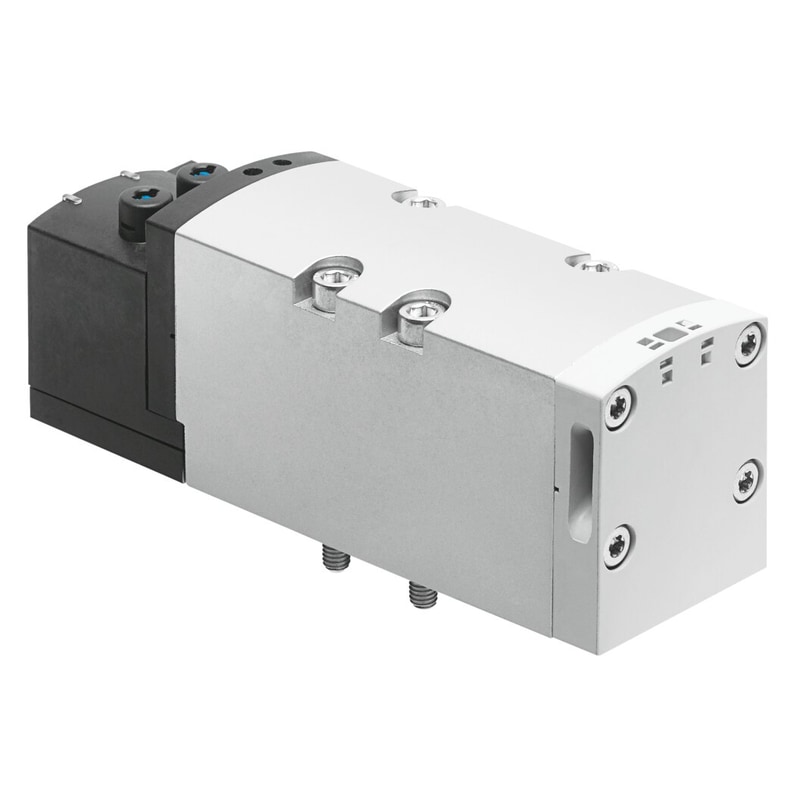

VSVA
VSVA-B-B52-Z-D2-1T1L
$341.04
Standard valve ISO 15407-1 with electric central power supply and common ground.
| Weight | 1.684332 lbs |
|---|---|
| Dimensions | 6.535433 × 3.543307 × 2.204724 in |
