| Valve function | 5/2, bistable |
|---|---|
| Actuation type | Electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1300 l/min |
| Pneumatic working port | G3/8Sub-base, size 1 as per ISO 5599-2 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Degree of protection | NEMA 4IP65 |
| Certification | CSA (OL)c UL us – Recognized (OL) |
| Type code | VSVA |
| Exhaust air function | Via individual sub-baseVia throttle plateWith flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Covered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Any |
| Symbol | 992990 |
| Signal status display | LED |
| Pilot pressure | 3 bar … 10 bar |
| Flow rate of pneumatic valve | 1800 l/min |
| Flow rate of pneumatic valve on individual sub-base | 1500 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1300 l/min |
| Changeover time | 16 ms |
| Max. positive test pulse with 0 signal | 1400 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Relative air humidity | 0 – 90 % |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 439 g |
| Electrical connection | as per ISO 5599-2Plug-in |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 1 as per ISO 5599-2 |
| Pilot exhaust air port 82/84 | Not ducted as per standardOptionally:Ducted |
| Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-2 |
| Note on materials | RoHS-compliant |
| Seals material | FPMNBRHNBR |
| Housing material | Die-cast aluminumPA |
| Material of screws | Steel, galvanized |
VSVA

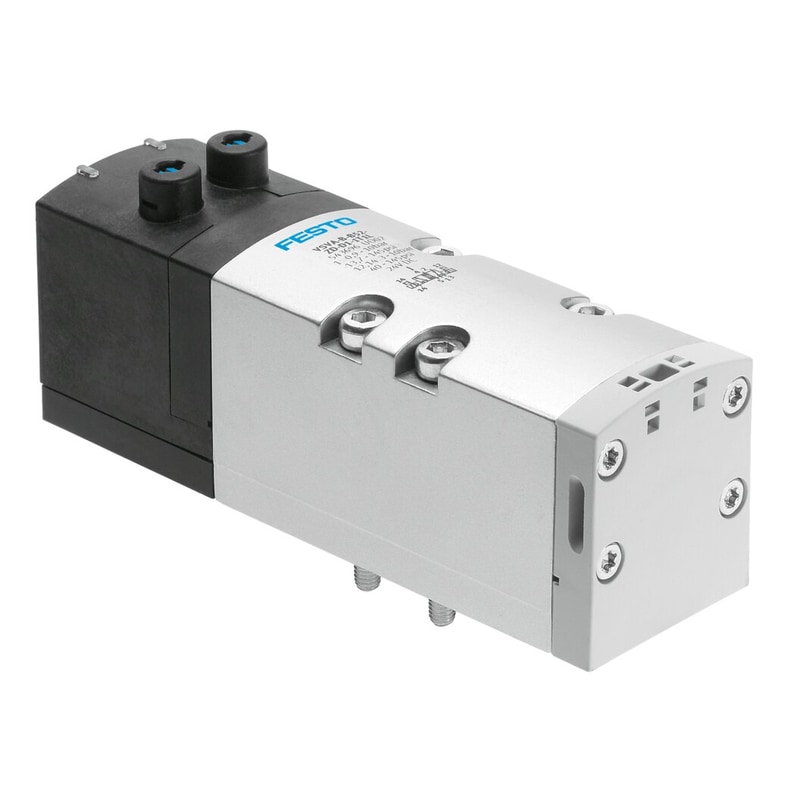

VSVA-B-B52-Z-D1-1T1L
$259.76
Standard valve ISO 15407-1 with electric central power supply and common ground.
| Weight | 1.05381 lbs |
|---|---|
| Dimensions | 5.905512 × 3.346457 × 1.771654 in |
