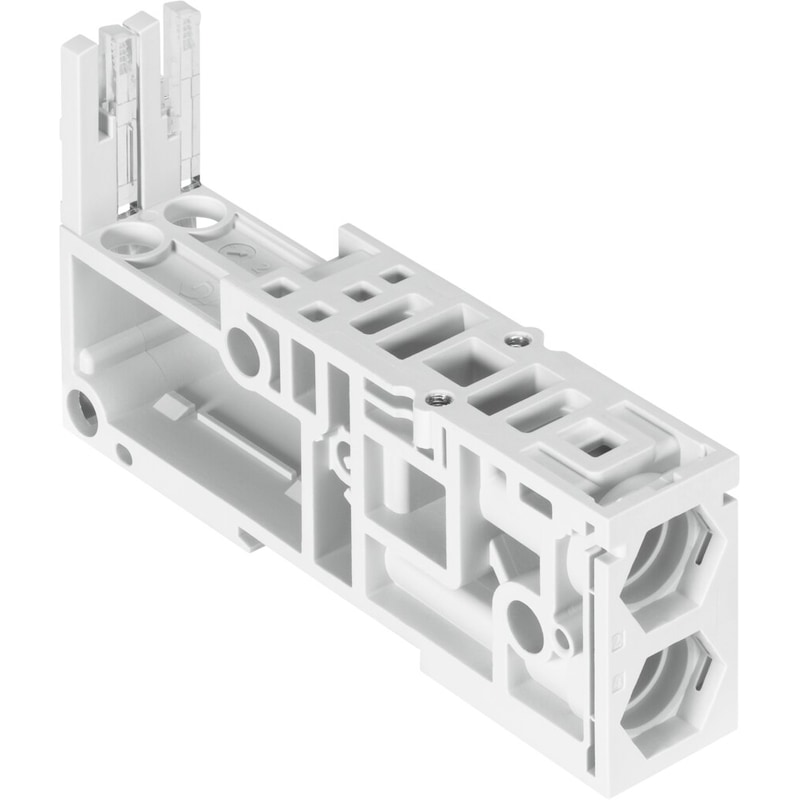

sub-base VMPAL-AP-20-T135-RV Width=20 mm, Width=21,2 mm, Length=107,3 mm, Grid dimension=21,2 mm, Pressure zone separation=135
| Width | 21.2 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21.2 mm |
| Valve size | 20 mm |
| Pressure zone separation | Ducts 1, 3 and 5 |
| Integrated function | Non-return valve |
| Max. number of valve positions | 1 |
| Flow direction | non reversible |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | 0 … 10 bar |
| Pilot pressure | 3 … 8 bar |
| Suitability for vacuum | No |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
