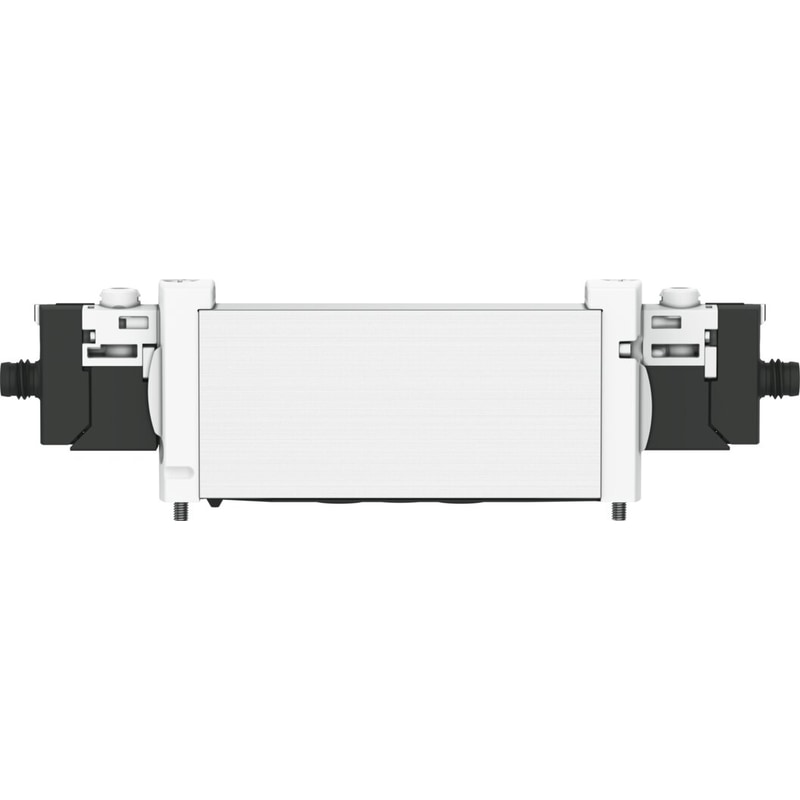

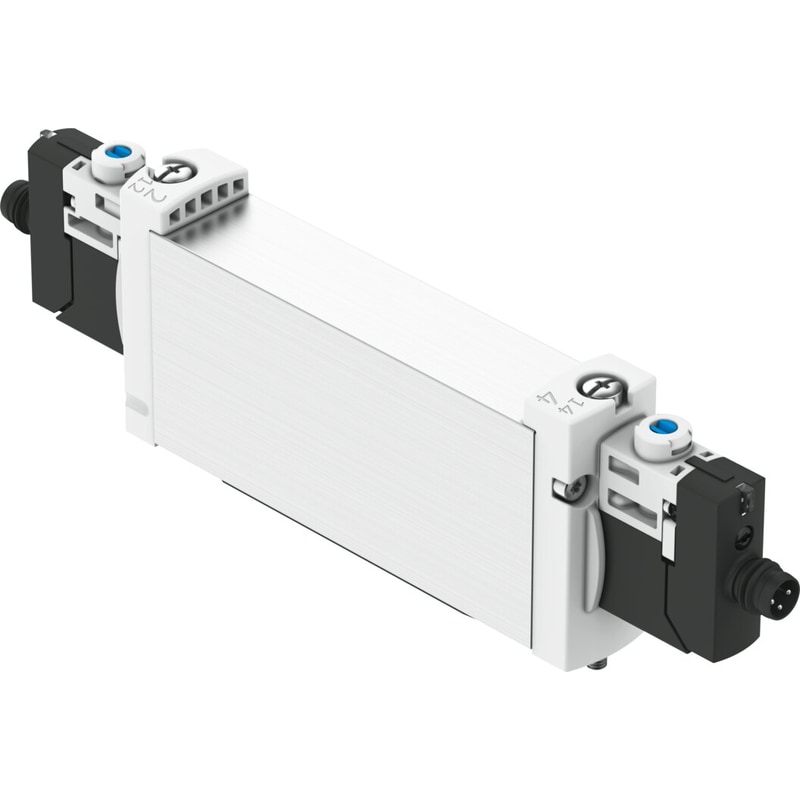

The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
| Valve function | 5/3, exhausted |
|---|---|
| Lap | Indefinite overlap |
| Actuation type | Electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 950 l/min |
| Pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65With plug socket |
| Certification | c UL us – Recognized (OL)RCM compliance markc CSA us (OL) |
| Nominal width | 6.3 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detentingCovered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |

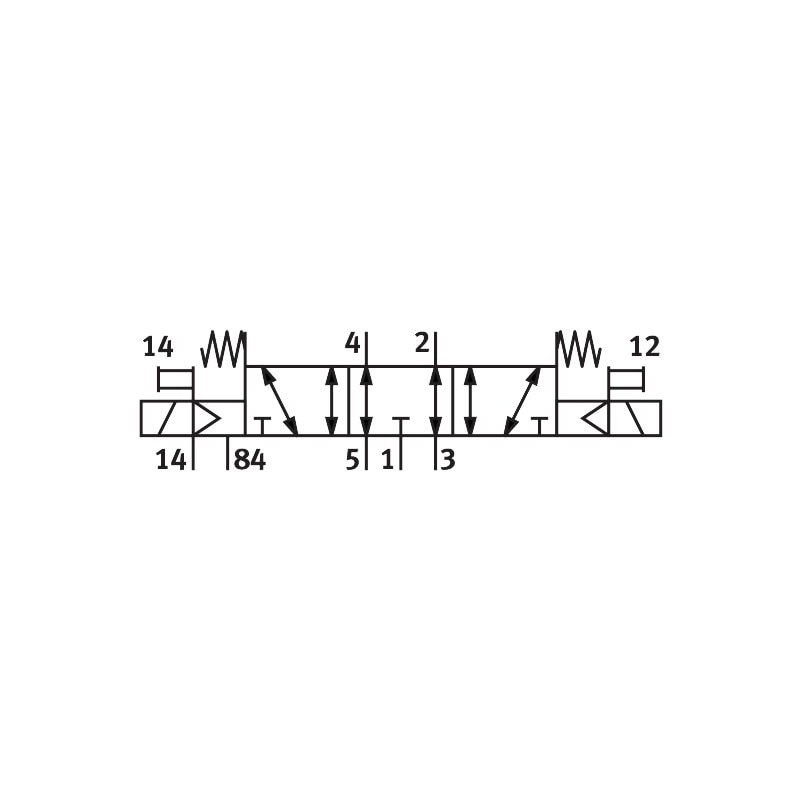

| Symbol | 00991127 |
| Pilot pressure | 3 bar … 8 bar |
| Switching time off | 55 ms |
| On switching time | 18 ms |
| Changeover time | 29 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
