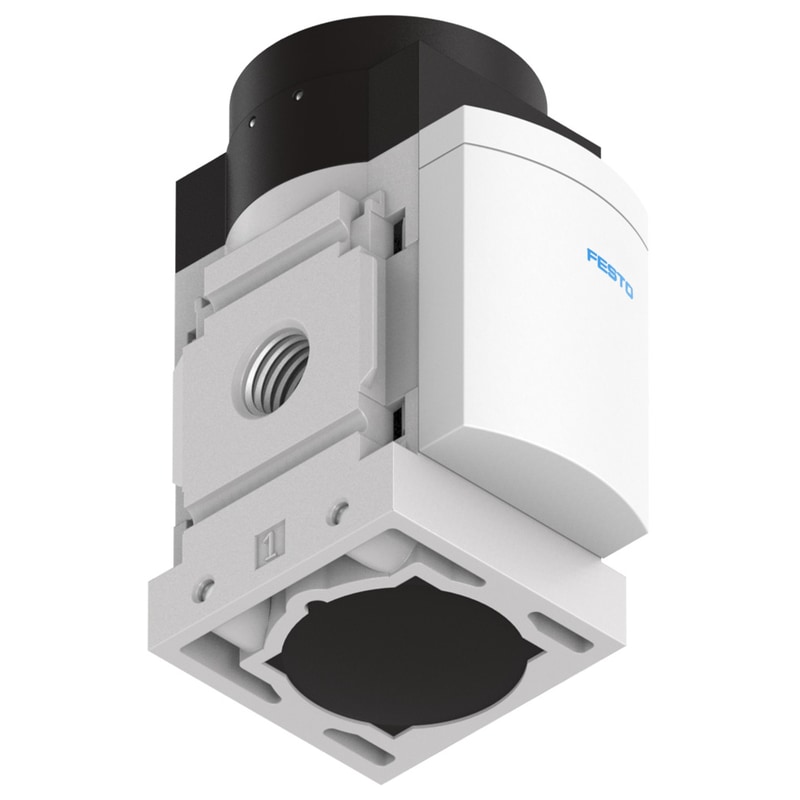

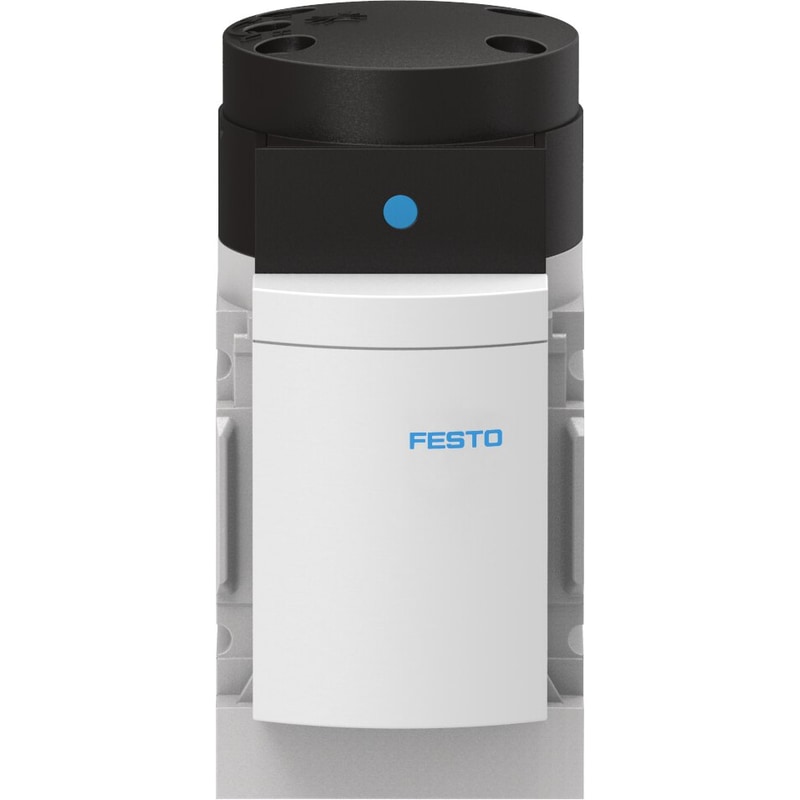

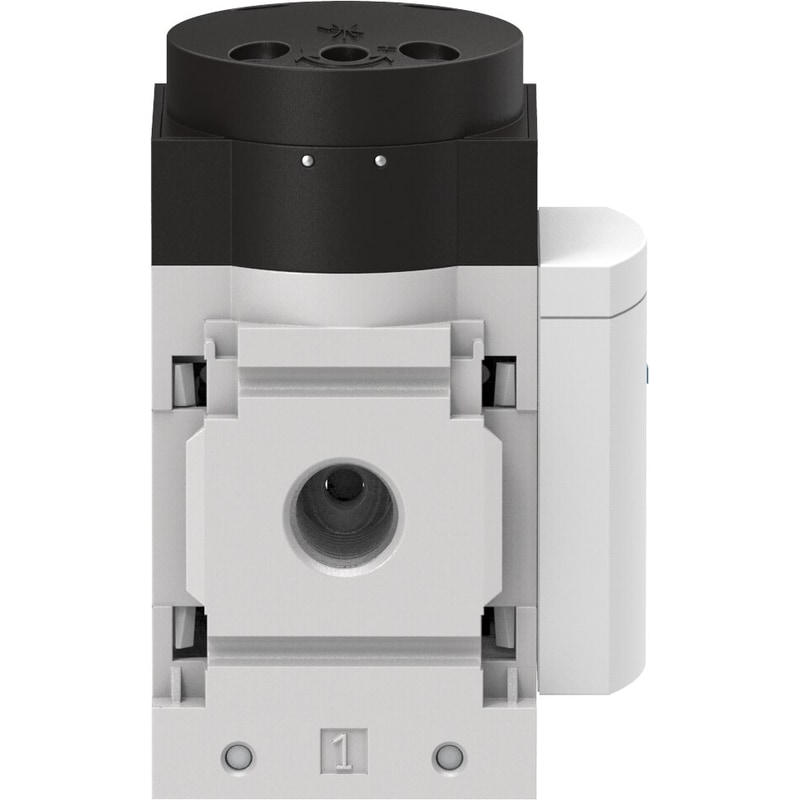

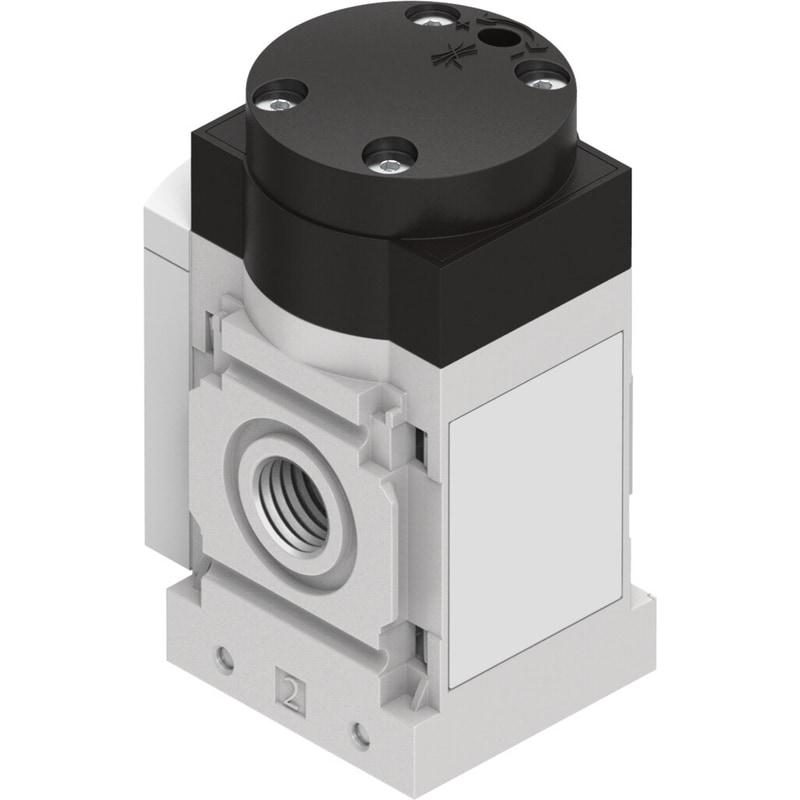

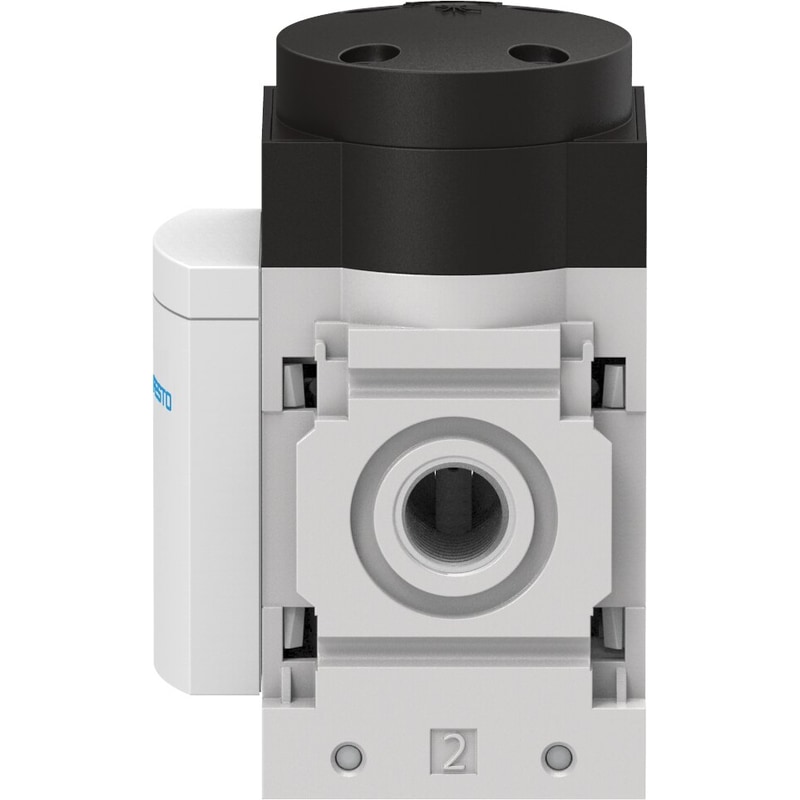

soft-start valve MS4-DL-1/4 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat
| product type | Soft Start Valve |
|---|---|
| Port Size | 1/4″ Port Connection |
| Weight | 0.594719 lbs |
|---|---|
| Dimensions | 5.511811 × 3.149606 × 2.165354 in |
| Exhaust air function | With flow control option |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Manual override | None |
| Structural design | Piston seat |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Pilot air supply port | External |
| Flow direction | Non-reversible |

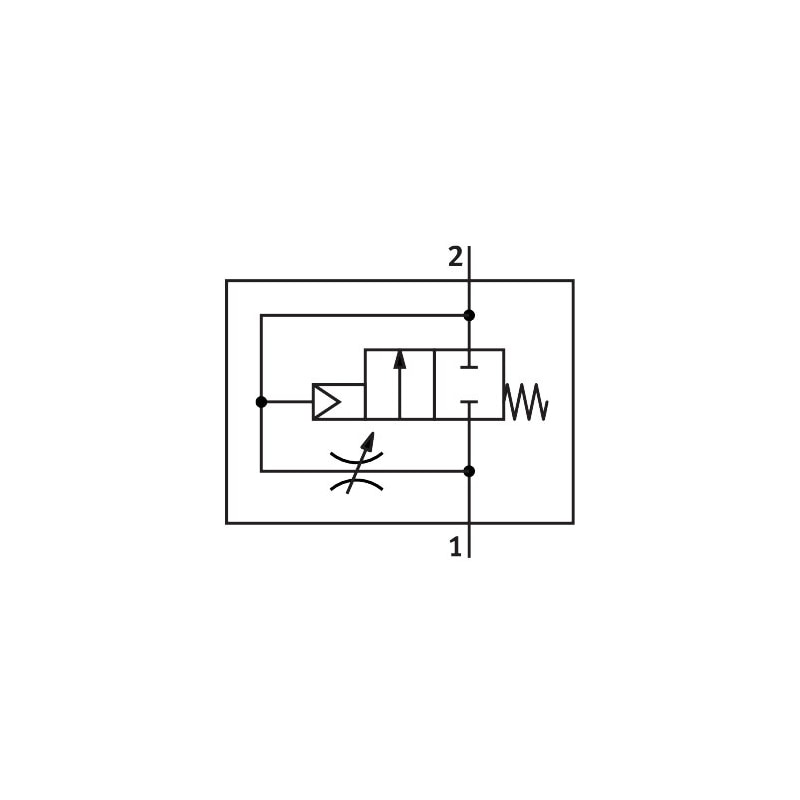

| Symbol | 00991513 |
| Valve Function | 2/2 |
| Operating pressure | 4 bar … 14 bar |
| b-value | 0.45 |
| C value | 9.6 l/sbar |
| Normal nominal flow rate (normalized to DIN 1343) | 2000 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 213 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
