| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | 2.5 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Nominal width | 7 mm |
| Type code | VMEF |
| Application note | Do not use as mechanical stop |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 992218 |
| Pilot pressure | 2.5 bar … 10 bar |
| Max. switching frequency | 3 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 60 °C |
| Actuating force | 14 N |
| Product weight | 184 g |
| Type of mounting | With through-hole |
| Pilot air port 12/14 | M5 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | AnodizedWrought aluminum alloy |
VMEF
VMEF-SC-M52-M-G14
$214.18

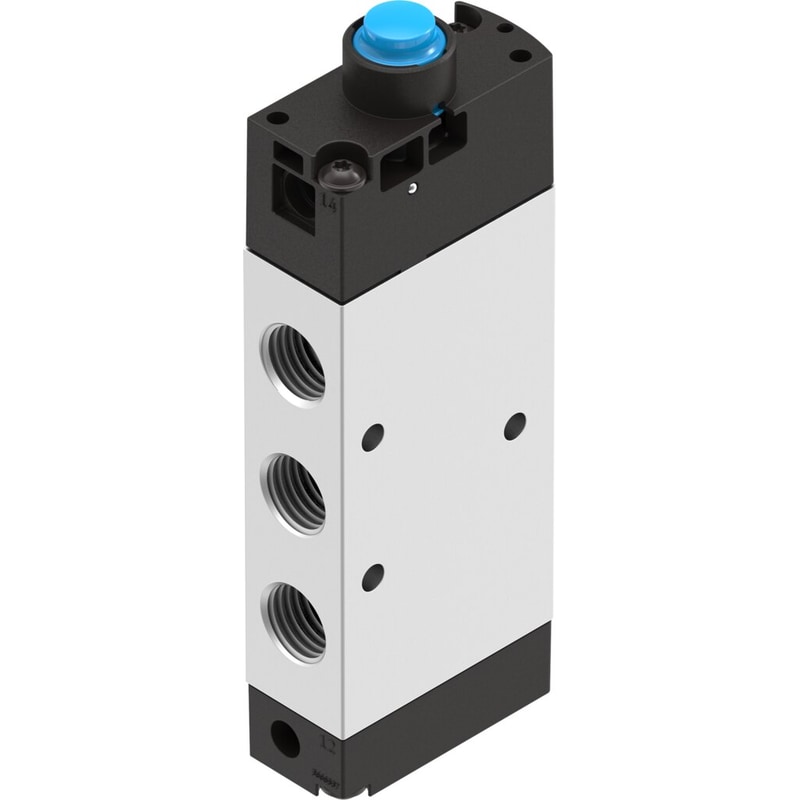

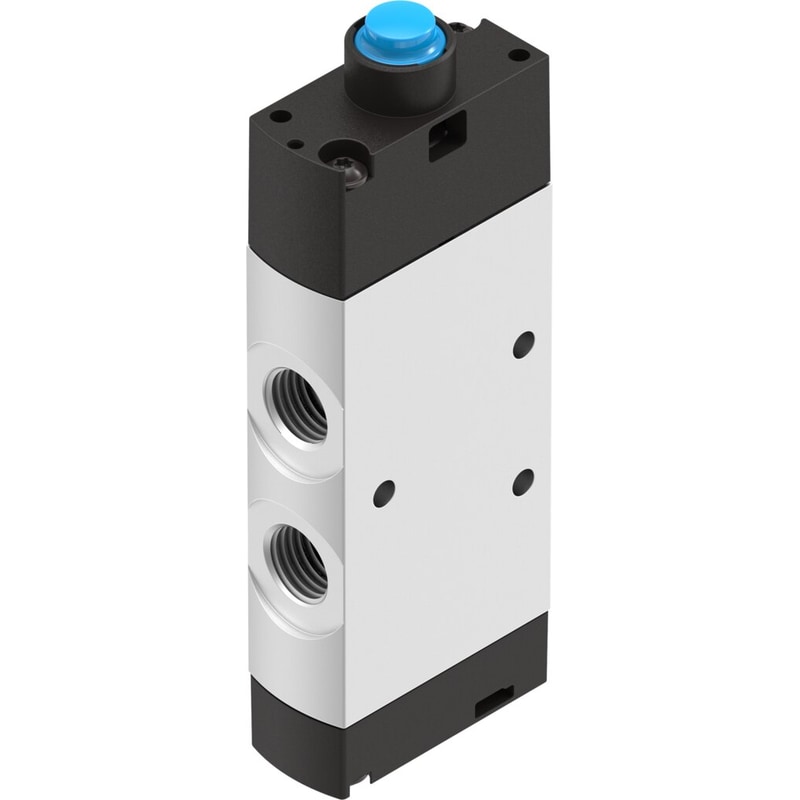

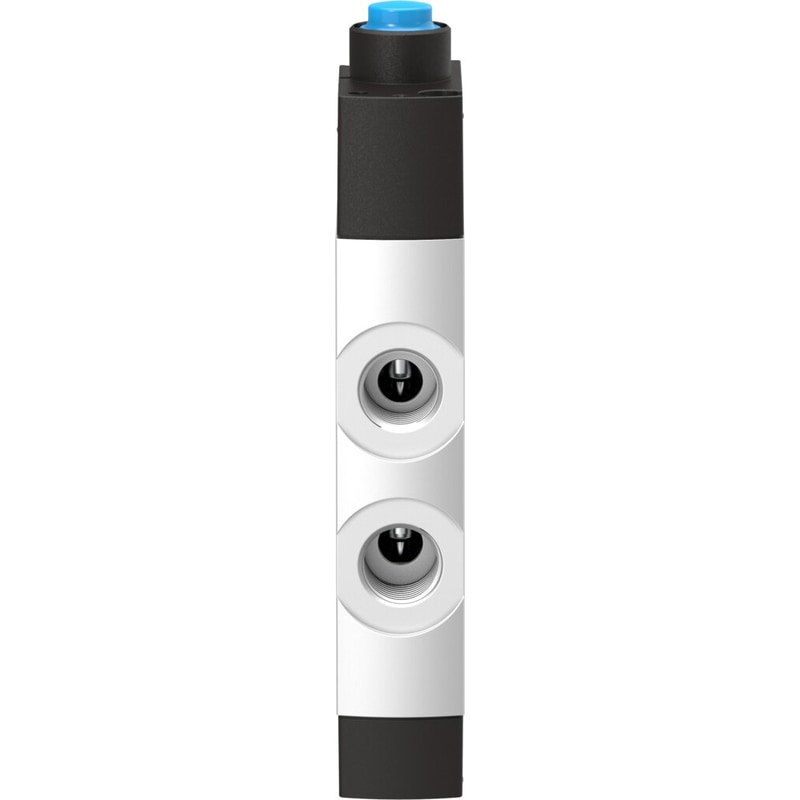

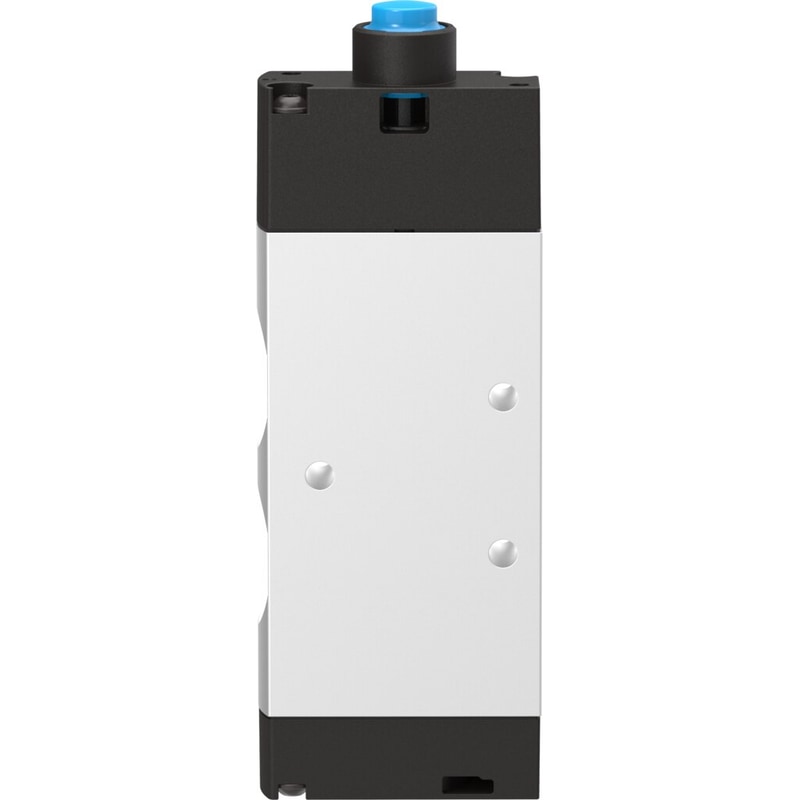

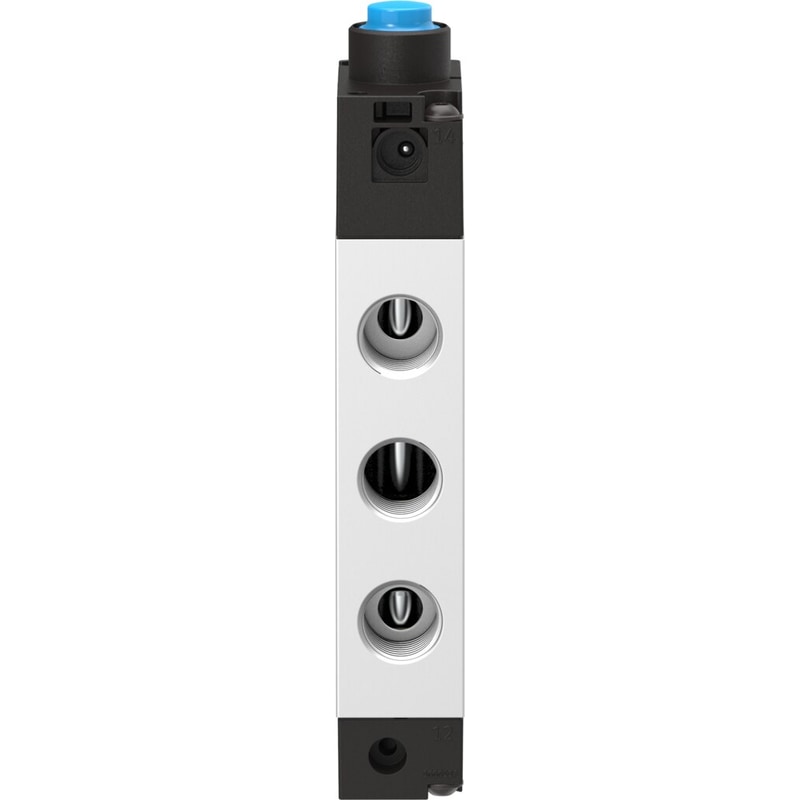

Mechanically actuated valve. Equipped as pure stem actuated valve or with roller lever or tilting roller lever. Some versions also suitable for vacuum operation.
| Weight | 0.426793 lbs |
|---|---|
| Dimensions | 5.708661 × 3.543307 × 0.984252 in |
