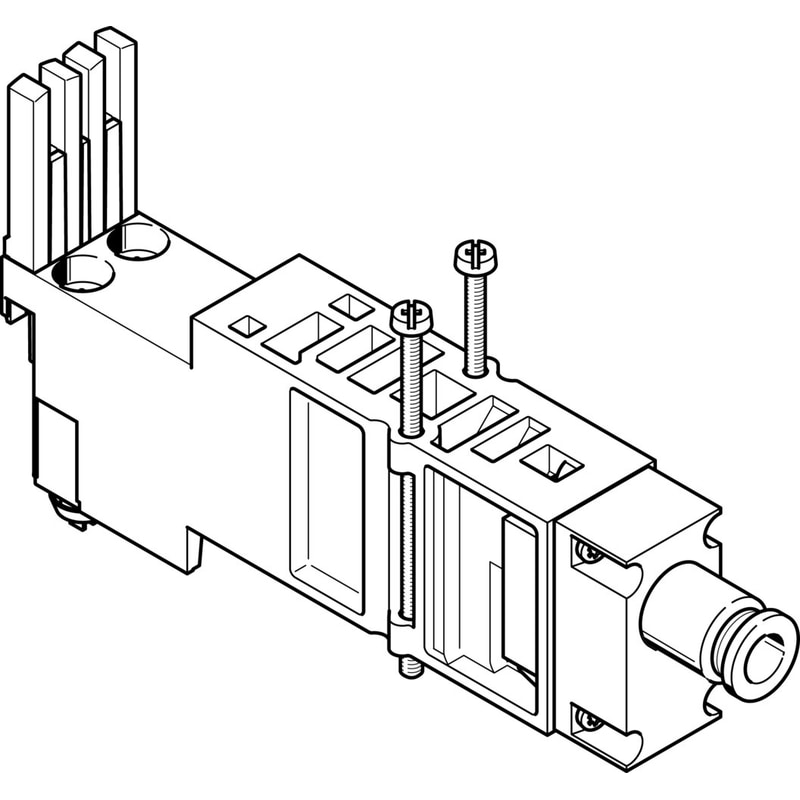

vertical pressure supply plate VMPA2-VSP-QS10 Grid dimension=21 mm, Operating pressure=-0,9 – 10 bar, Pilot pressure=3 – 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Corrosion resistance classification CRC=1 – Low corrosion stress
| Grid dimension | 21 mm |
|---|---|
| Operating pressure | ‘-0.9 … 10 bar |
| Pilot pressure | 3 … 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-5 … 50 °C |
| Product weight | 90 g |
| Pneumatic connection, port 1Â | QS-10 |
| Materials note | Conforms to RoHS |
| Material supply plate | PA-reinforced |
