| Type code | SPAE |
|---|---|
| KC characters | KC EMC |
| Symbol | 995430 |
| Certification | RCM compliance markc UL us – Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor with display |
| Pressure measuring range initial value | -1 bar |
| Pressure measuring range end value | 1 bar |
| Max. overload pressure | 5 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C … 50 °C |
| Ambient temperature | 0 °C … 50 °C |
| ADC resolution | 10 bit |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Switching output | PNP/NPN switchable |
| Switching function | Freely programmable |
| Switching element function | N/C contactSwitchableN/O contact |
| Max. output current | 100 mA |
| Display range end value | 99 %FS |
| Short-circuit protection | yes |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | IdentificationTeach channelProcess data variable (PDV)DiagnosticsBinary data channel (BDC) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 0 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring) |
| IO-Link®, minimum cycle time | 3 ms |
| IO-Link®, data memory required | 500 byte |
| DC operating voltage range | 18 V … 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wireCableOpen end |
| Cable length | 2.5 m |
| Type of mounting | Pin-type conneciton |
| Mounting position | Any |
| Pneumatic connection | Cartridge 10 mm |
| Product weight | 40 g |
| Housing material | PA-reinforced |
| Sealing ring material | NBR |
| Display type | 2-digitLED display |
| Displayable unit(s) | %FS |
| Switching status indication | LED yellow |
| Setting options | IO-Link®Via display and pushbuttonsTeach-in |
| Protection against tampering | PIN code |
| Threshold value setting range | 1 % … 98 % |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
SPAE
SPAE-B2R-PC10-PNLK-2.5K
$146.64

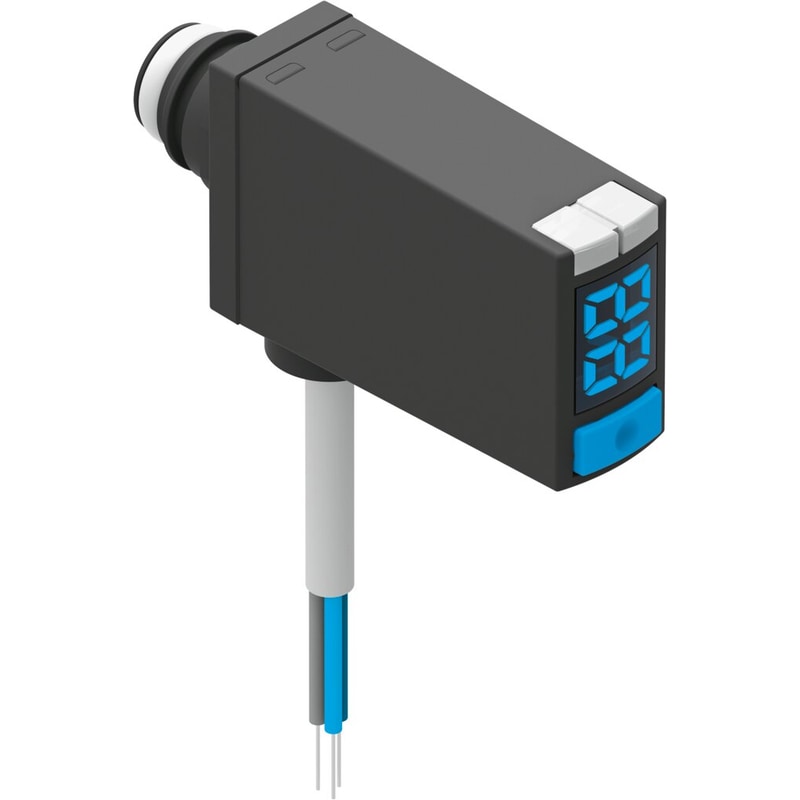

Extremely small, extremely light, extremely convenient: The pressure transmitter SPAE monitors the pressure level of filtered compressed air from −1 to 0 and 0 to 10 bar. Ideal for vacuum monitoring for pick & place or for pressure monitoring in pneumatic applications.
| Weight | 0.136978 lbs |
|---|---|
| Dimensions | 5.905512 × 2.952756 × 1.771654 in |
| Start value for pressure measuring range | -1 bar |
| End value for pressure measuring range | 1 bar |
| Switching element function | N/C contact – N/O contact – Switchable |
| Pneumatic connection | Cartridge 10 mm |
| Electrical connection | 3-wire – Cable – Open end |
