| Type code | SPTE |
|---|---|
| KC characters | KC EMC |
| Symbol | 992257 |
| Certification | c UL us – Recognized (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU RoHS directiveAs per EU EMC directive |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | -1 bar |
| Pressure measuring range end value | 1 bar |
| Max. overload pressure | 5 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C … 50 °C |
| Ambient temperature | 0 °C … 50 °C |
| Accuracy in ± % FS | 3 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Analog output | 0 – 10 V |
| Rise time | 1 ms |
| Min. load resistance of voltage output | 15 kOhm |
| Short-circuit protection | For all electrical connections |
| DC operating voltage range | 18 V … 30 V |
| Electrical connection | Open endCable3-wire |
| Cable length | 2.5 m |
| Type of mounting | Pin-type conneciton |
| Mounting position | Any |
| Pneumatic connection | Cartridge 10 mm |
| Product weight | 35 g |
| Housing material | PA-reinforced |
| Sealing ring material | NBR |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
SPTE

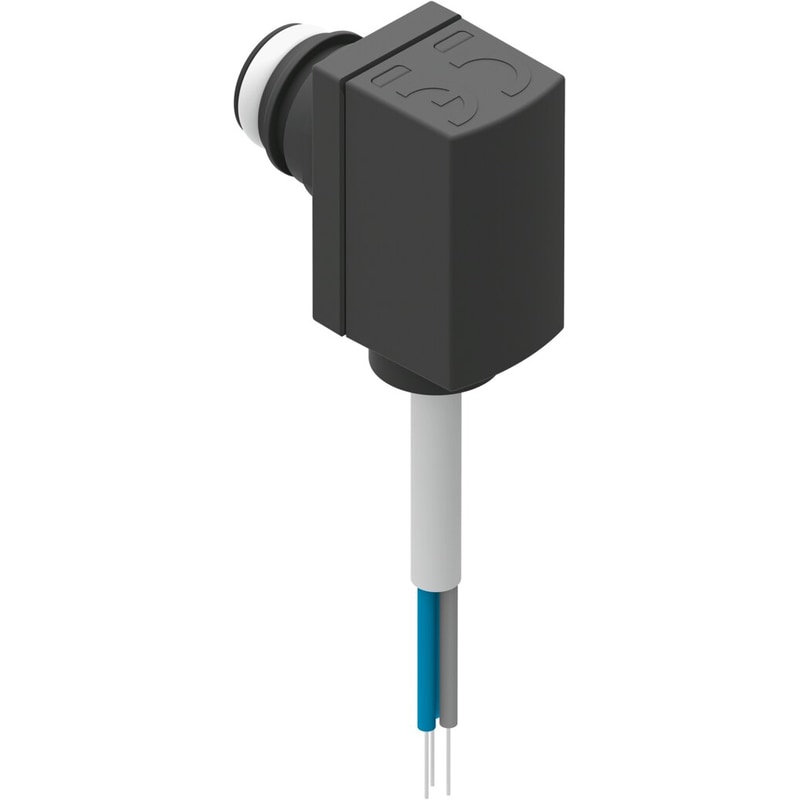

SPTE-B2R-PC10-V-2.5K
$78.96
Relative pressure or vacuum transmitter. For optional manifold assembly using a wall bracket.
| Weight | 0.147996 lbs |
|---|---|
| Dimensions | 5.905512 × 2.952756 × 1.771654 in |
| Start value for pressure measuring range | -1 bar |
| End value for pressure measuring range | 1 bar |
| Pneumatic connection | Cartridge 10 mm |
| Electrical connection | 3-wire – Cable – Open end |
