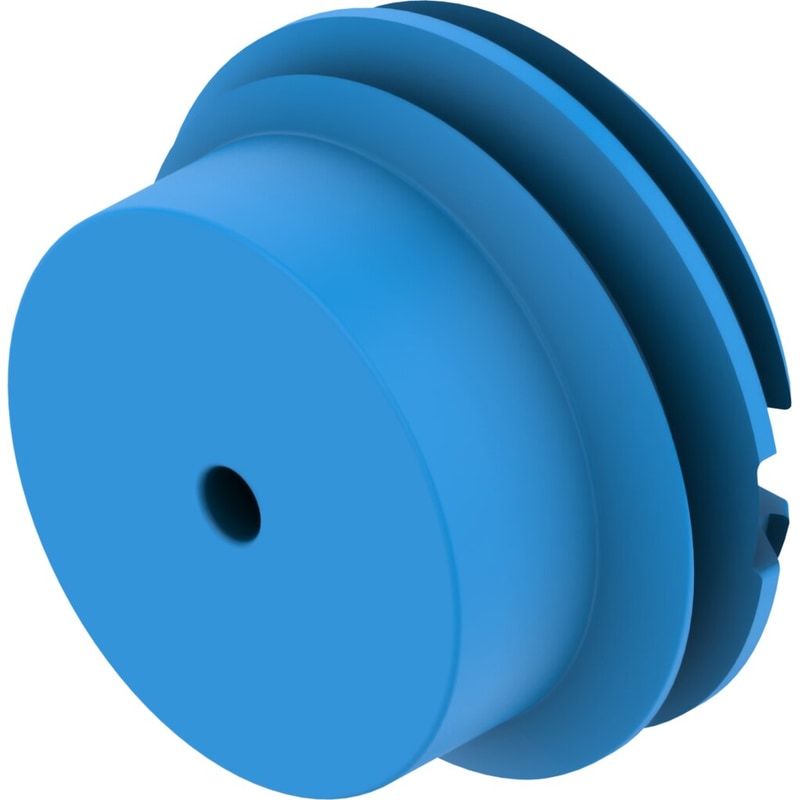

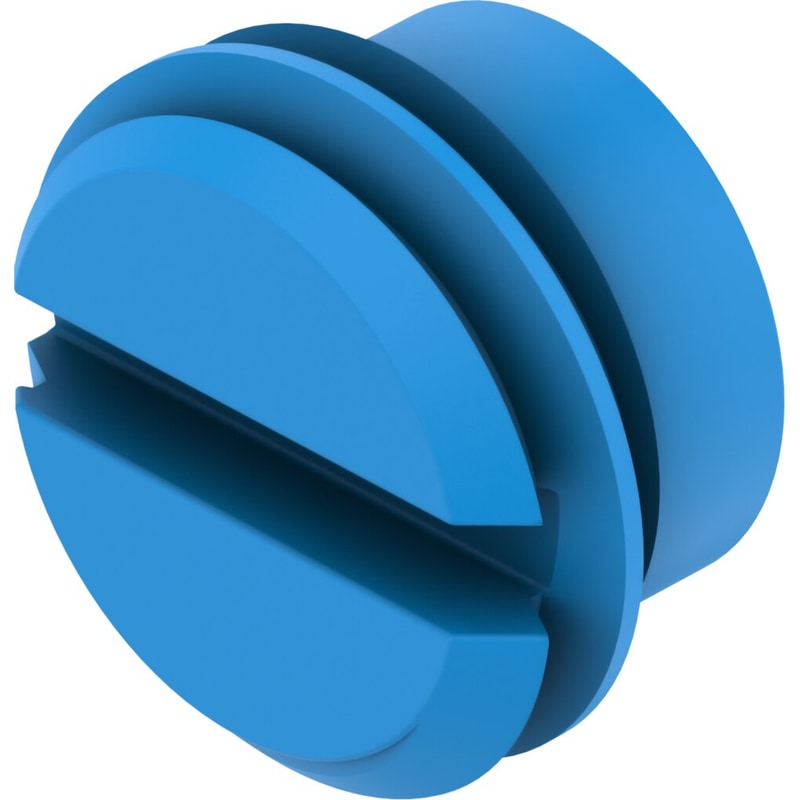

flow control VFFG-T-M5-12 Valve function=Throttle function, Mounting type=with thread, Standard nominal flow rate in flow control direction=45,4 l/min, Operating pressure=-0,9 – 10 bar, Ambient temperature=-5 – 60 °C
| Valve function | Throttle function |
|---|---|
| Mounting type | with thread |
| Standard nominal flow rate in flow control direction | 45.4 l/min |
| Operating pressure | ‘-0.9 … 10 bar |
| Ambient temperature | ‘-5 … 60 °C |
| Nominal size | 1.2 mm |
| b value | 0.5 |
| C value | 0.16 l/sbar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Storage temperature | ‘-20 … 60 °C |
| Product weight | 0.5 g |
| Materials note | Conforms to RoHS |
