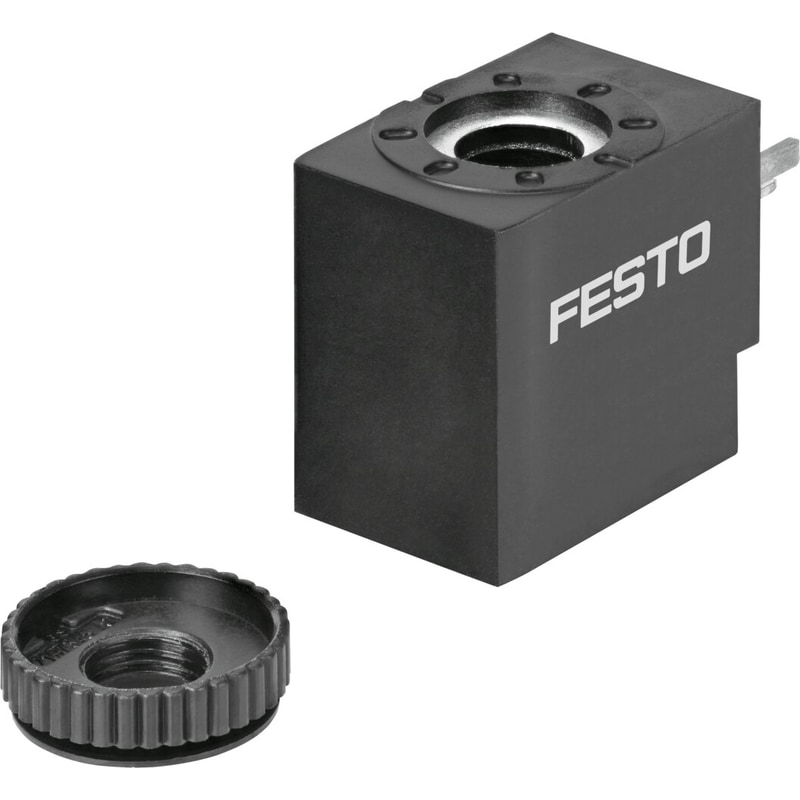

solenoid coil VACS-C-C1-16B Type C connection pattern, to ENÂ 175Â 301, 120Â VÂ AC/60Â Hz and 110Â VÂ AC/50-60Â Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=110/120 V AC: 50/60 Hz, pick-up power 2.3 VA, holding power 1.7 VA, Surge strength=2,5 kV
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 110/120 V AC: 50/60 Hz, pick-up power 2.3 VA, holding power 1.7 VA |
| Surge strength | 2.5 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | ‘+/- 10 % |
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devices |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Protection class | IP65 |
| Ambient temperature | ‘-10 … 50 °C |
| Electrical connection | to EN 175301-803Plug pattern type C to EN 175301-803 |
| Mounting type | With knurled nut |
