ESBF-BS-50-200-10P

$1,700.70

SKU: 8022594
UNSPSC: 31251501
GTIN: 4052568278472

SKU: 8022594 Category: Tag:
Festo

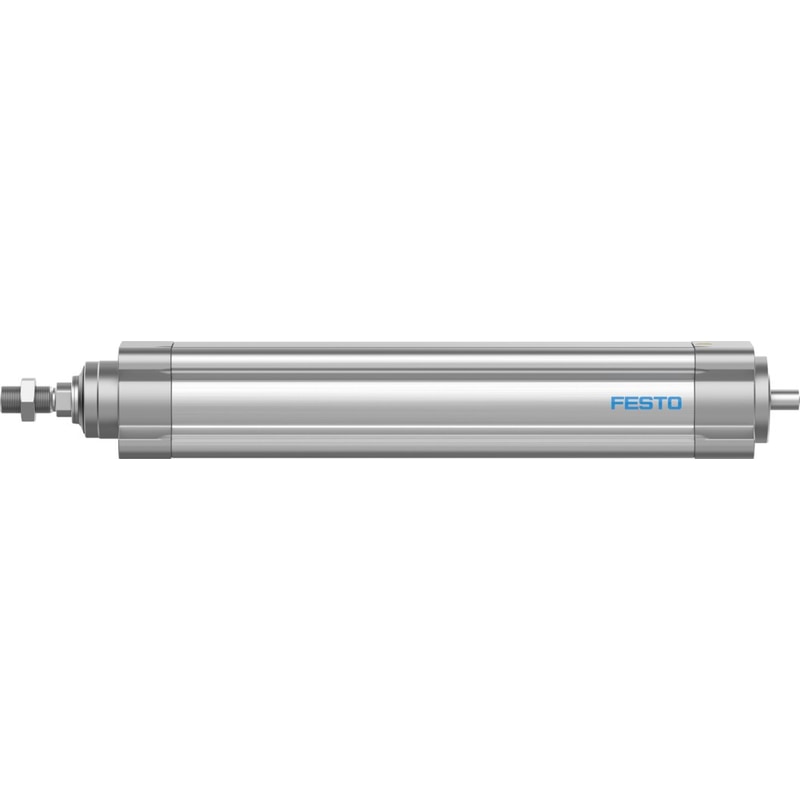

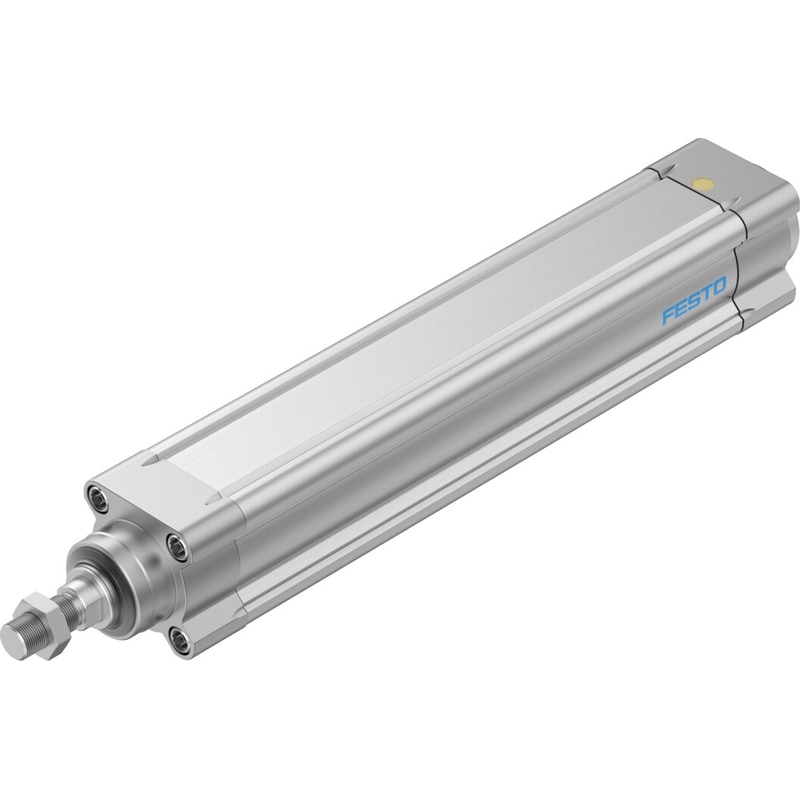

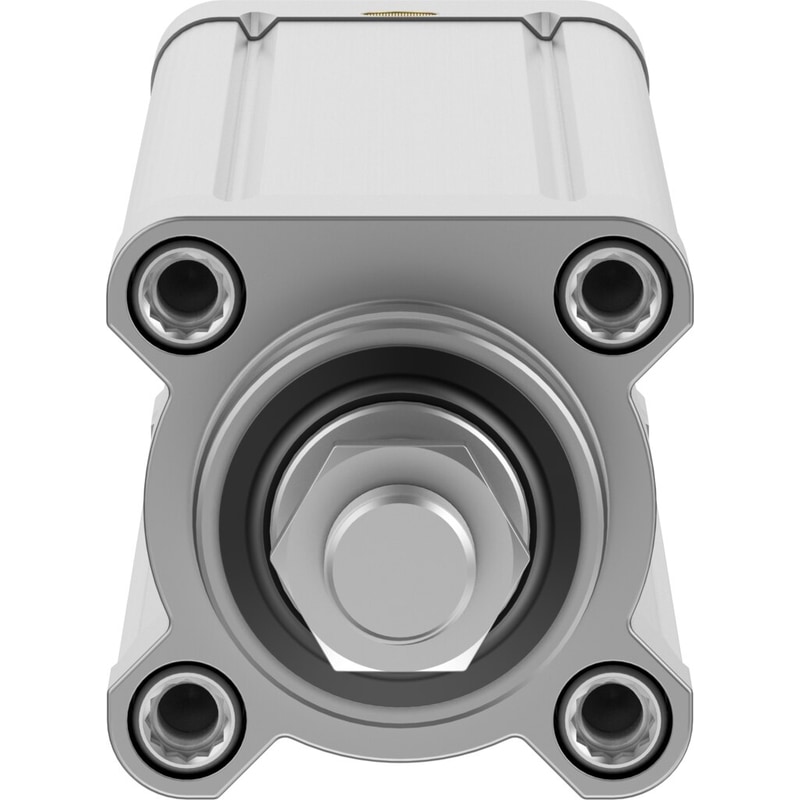

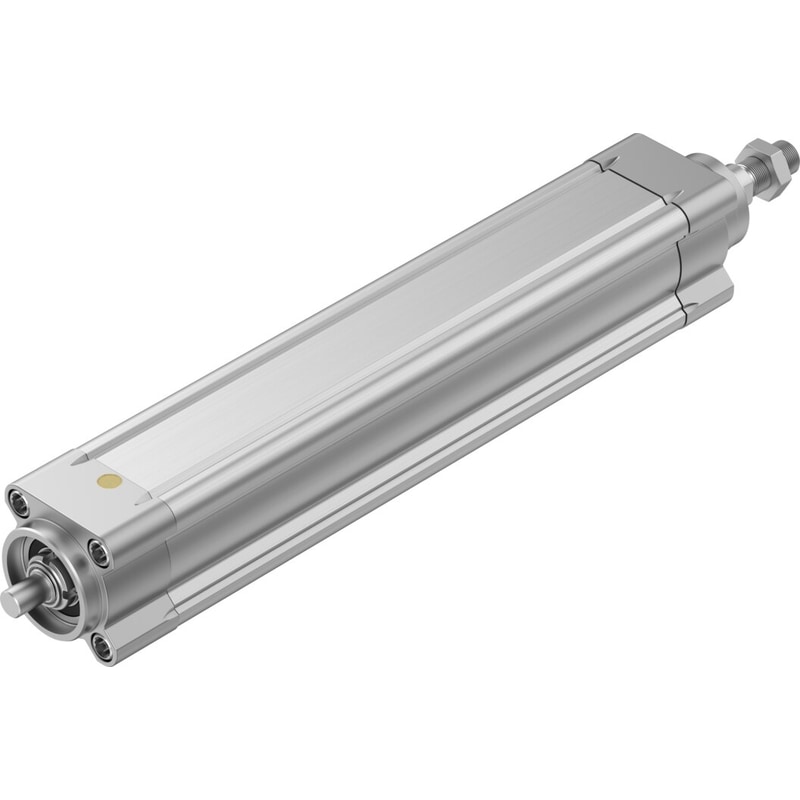

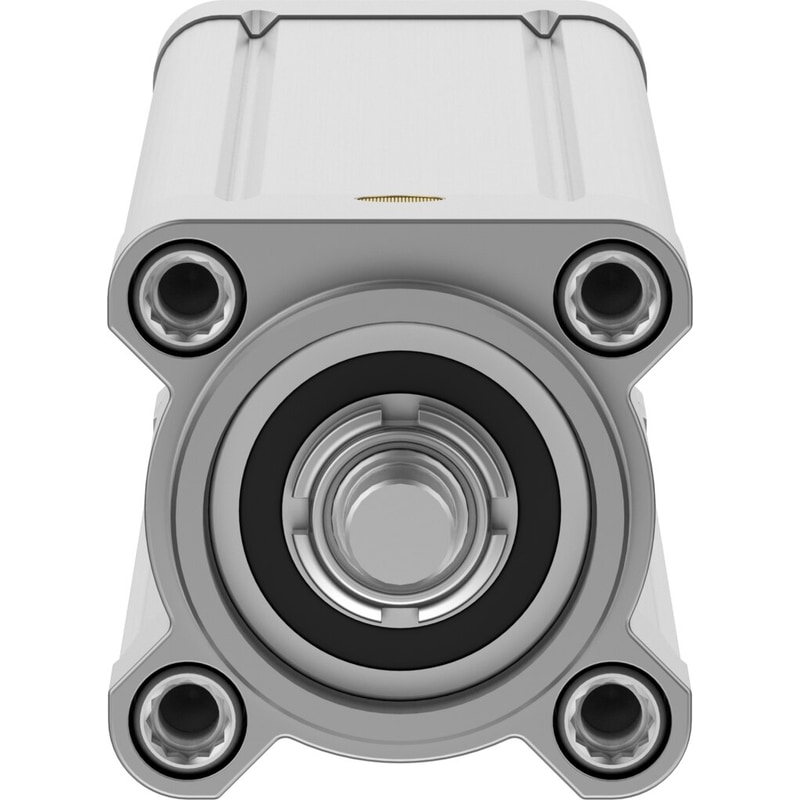

electric cylinder ESBF-BS-50-200-10P With ball screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Working stroke=200 mm, Size=50, Stroke=200 mm, Piston rod thread=M16x1,5, Reversing backlash=30 µm

Working stroke  200 mm
Size  50
Stroke  200 mm
Piston rod thread  M16x1,5
Reversing backlash  30 µm
Spindle diameter  20 mm
Spindle pitch  10 mm/U
Max. angular deflection of piston rod +/-  0.15 deg
Based on the standard  ISO 15552
Assembly position  Any
Piston-rod end  Male thread
Motor type  Stepper motorServomotor
Position detection  For proximity sensor
Working stroke

200 mm

Size

50

Stroke

200 mm

Piston rod thread

M16x1,5

Reversing backlash

30 µm

Spindle diameter

20 mm

Spindle pitch

10 mm/U

Max. angular deflection of piston rod +/-

0.15 deg

Based on the standard

ISO 15552

Assembly position

Any

Piston-rod end

Male thread

Motor type

Stepper motorServomotor

Position detection

For proximity sensor
