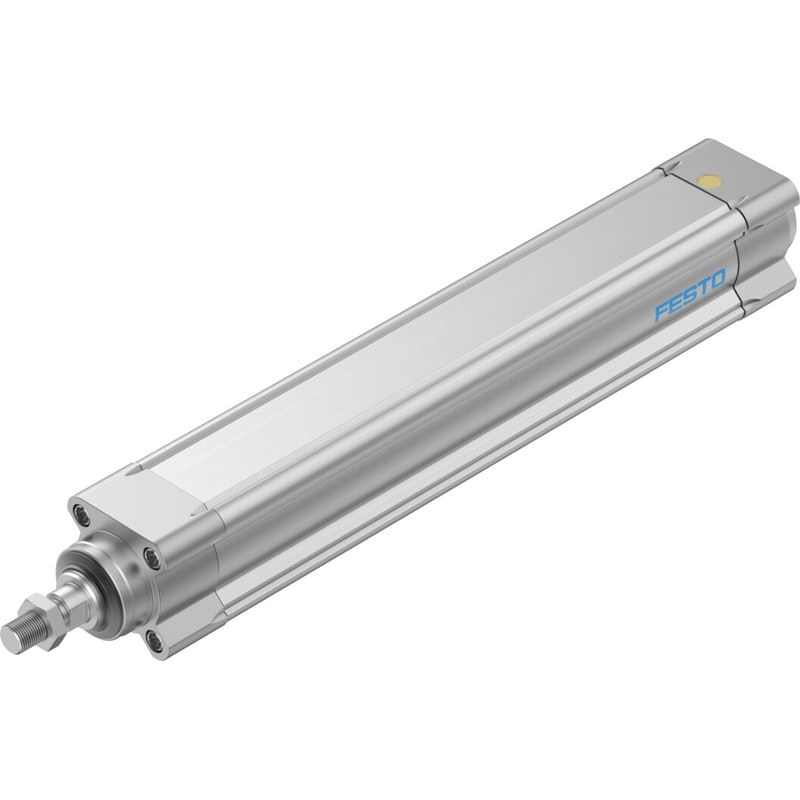

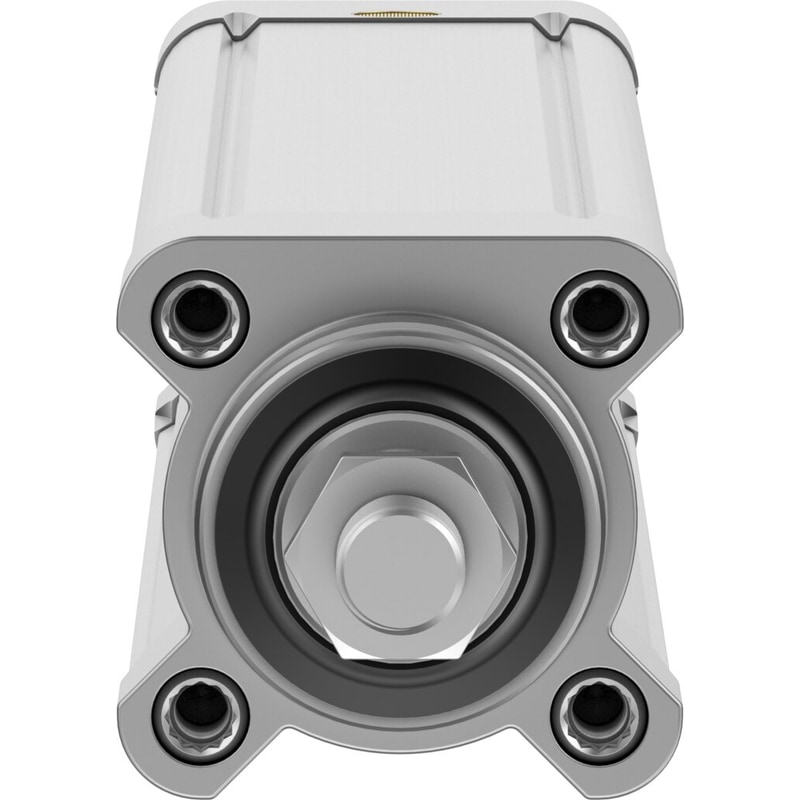

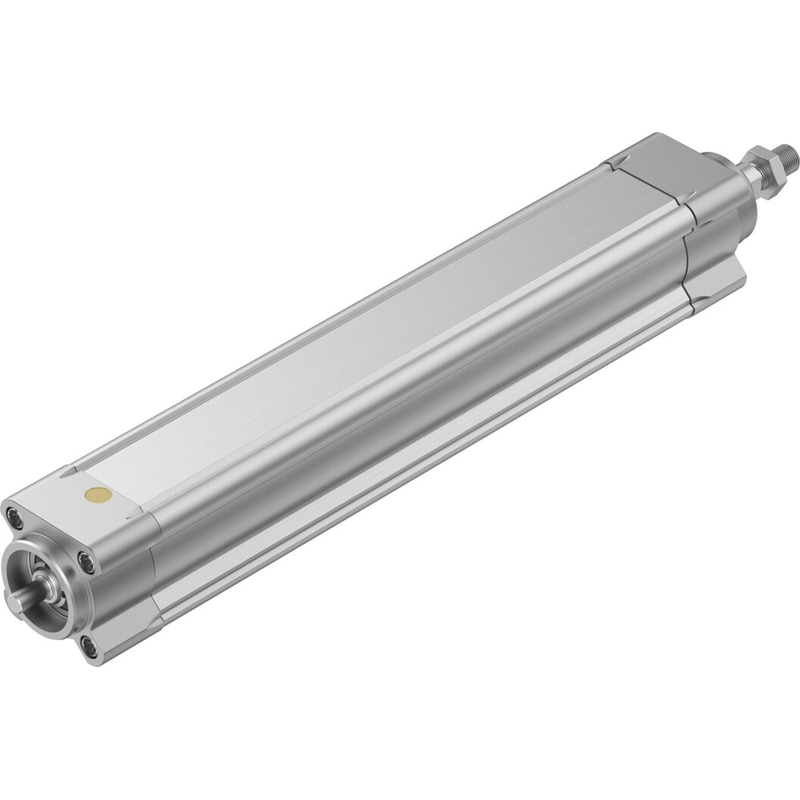

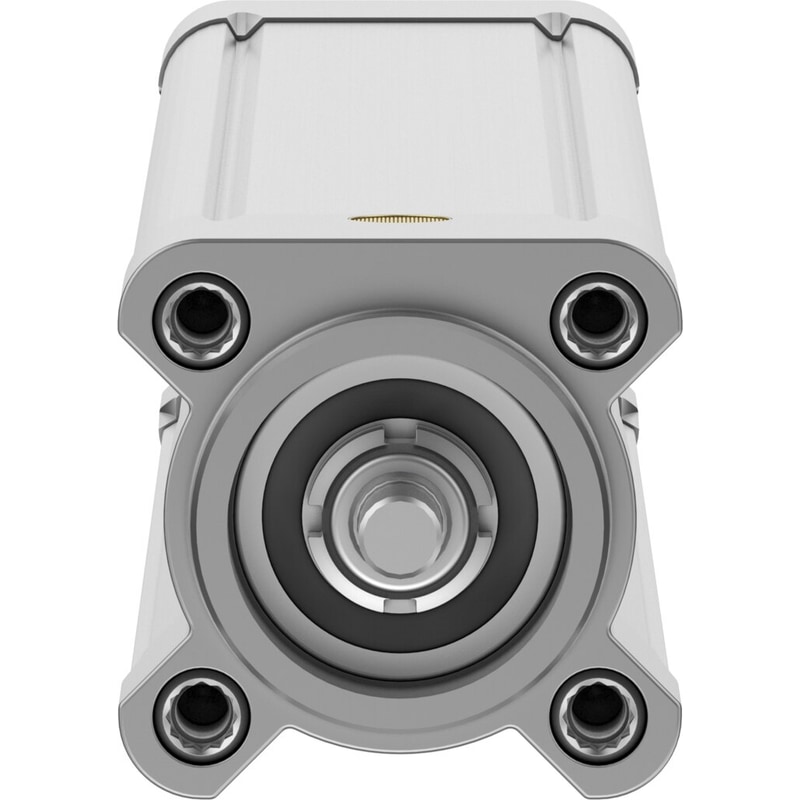

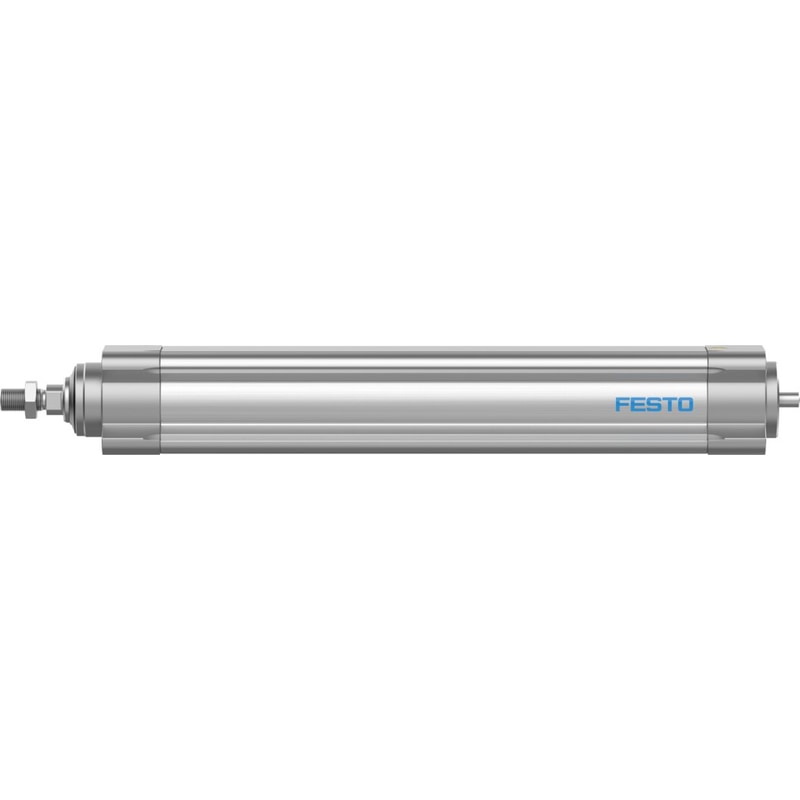

electric cylinder ESBF-LS-40-100-3P With lead screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Working stroke=100 mm, Size=40, Stroke=100 mm, Piston rod thread=M12x1,25, Reversing backlash=100 µm
| Working stroke | 100 mm |
|---|---|
| Size | 40 |
| Stroke | 100 mm |
| Piston rod thread | M12x1,25 |
| Reversing backlash | 100 µm |
| Spindle diameter | 16 mm |
| Spindle pitch | 3 mm/U |
| Max. angular deflection of piston rod +/-Â | 0.2 deg |
| Based on the standard | ISO 15552 |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Motor type | Stepper motorServomotor |
| Position detection | For proximity sensor |
