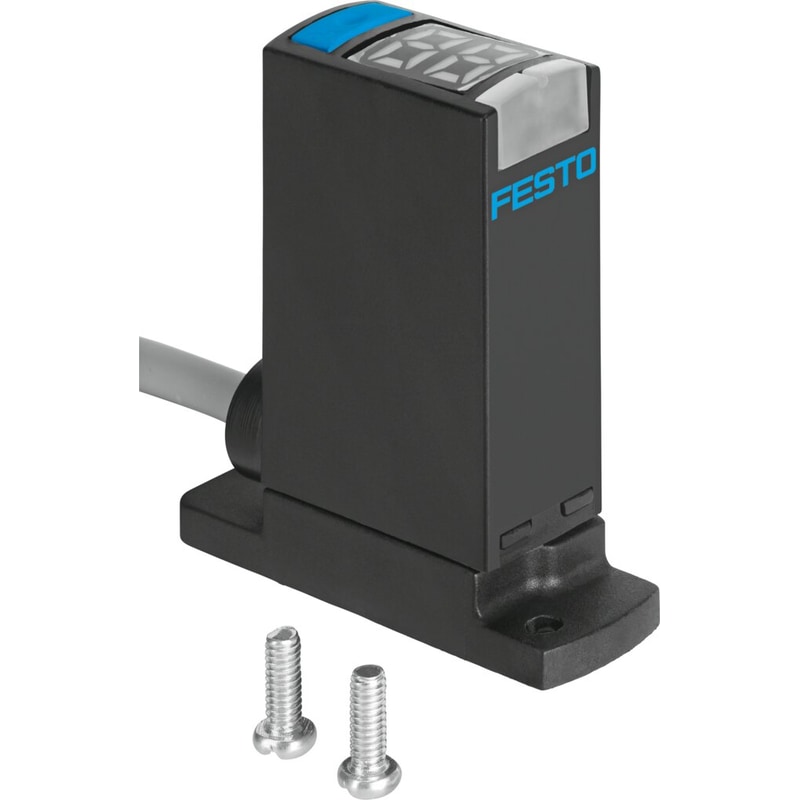

pressure sensor SPAE-P10R-F-PNLK-2.5K Authorisation=(* RCM Mark, * c UL us – Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor with display
| Authorisation | RCM Markc UL us – Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 10 bar |
| Overload range | 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 … 50 °C |
| Ambient temperature | 0 … 50 °C |
| Resolution of analogue/digital converter | 10 Bit |
