SPAE-P10R-S4-PNLK-2.5K

$112.19

SKU: 8001445
UNSPSC: 41111927
GTIN: 4052568277222

SKU: 8001445 Category: Tag:
Festo

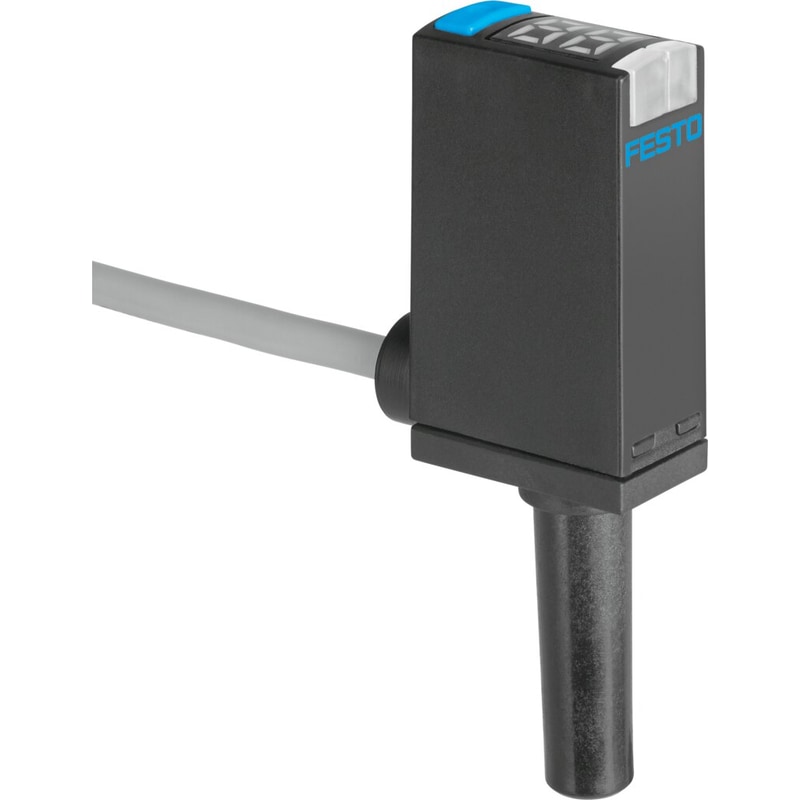

pressure sensor SPAE-P10R-S4-PNLK-2.5K Authorisation=(* RCM Mark, * c UL us – Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor with display

Authorisation  RCM Markc UL us – Recognized (OL)
CE mark (see declaration of conformity)  to EU directive for EMC
Materials note  Conforms to RoHS
Measured variable  Relative pressure
Measurement method  Piezoresistive pressure sensor with display
Pressure measuring range, initial value  0 bar
Pressure measuring range, final value  10 bar
Overload range  15 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible
Medium temperature  0 … 50 °C
Ambient temperature  0 … 50 °C
Resolution of analogue/digital converter  10 Bit
Authorisation

RCM Markc UL us – Recognized (OL)

CE mark (see declaration of conformity)

to EU directive for EMC

Materials note

Conforms to RoHS

Measured variable

Relative pressure

Measurement method

Piezoresistive pressure sensor with display

Pressure measuring range, initial value

0 bar

Pressure measuring range, final value

10 bar

Overload range

15 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible

Medium temperature

0 … 50 °C

Ambient temperature

0 … 50 °C

Resolution of analogue/digital converter

10 Bit
