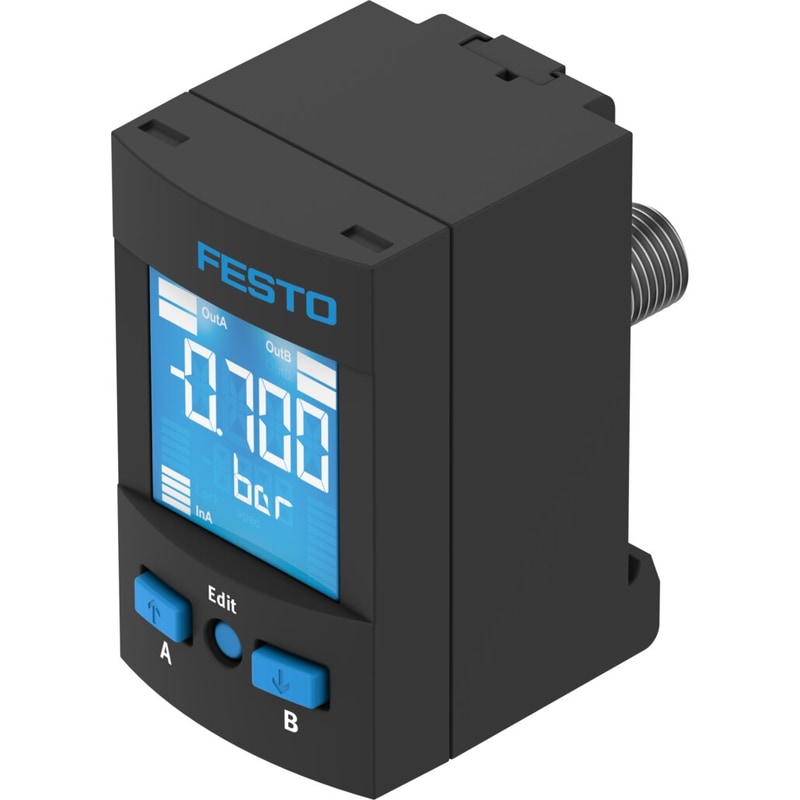

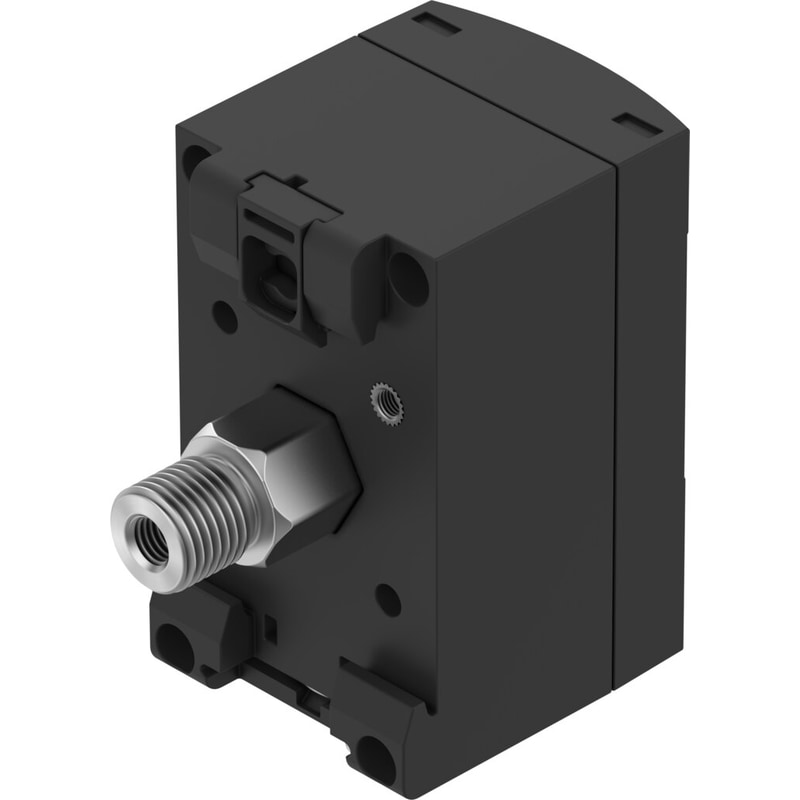

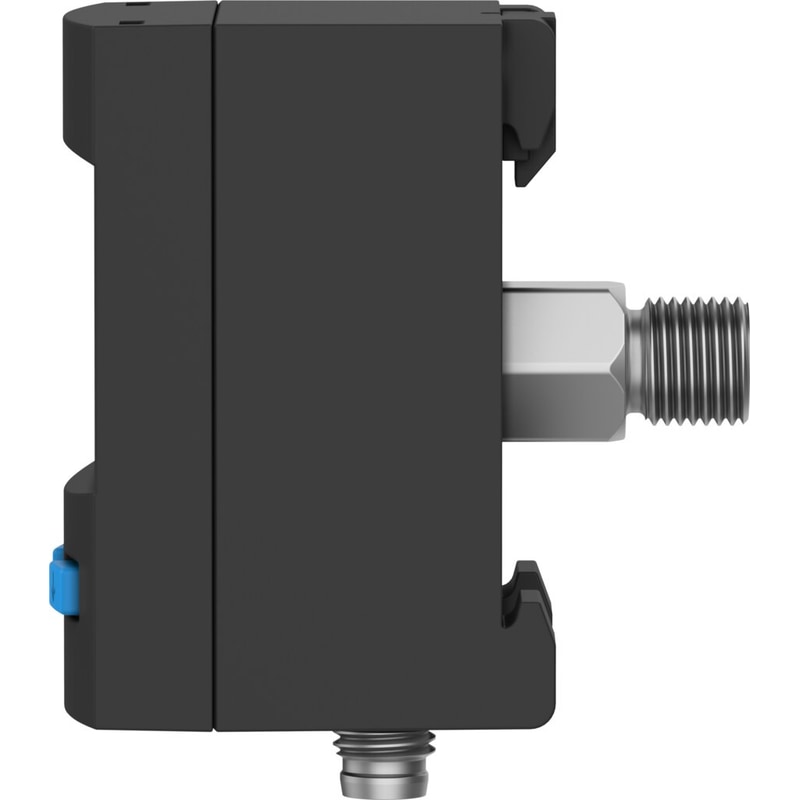

pressure sensor SPAU-B2R-T-R18M-L-PNLK-PNVBA-M8D Suitable for monitoring compressed air and non-corrosive gases, mounting using thread, with display. Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor
| Authorisation | RCM Markc UL us – Listed (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range, initial value | ‘-1 bar |
| Pressure measuring range, final value | 1 bar |
| Overload range | 5 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 … 50 °C |
| Ambient temperature | 0 … 50 °C |
