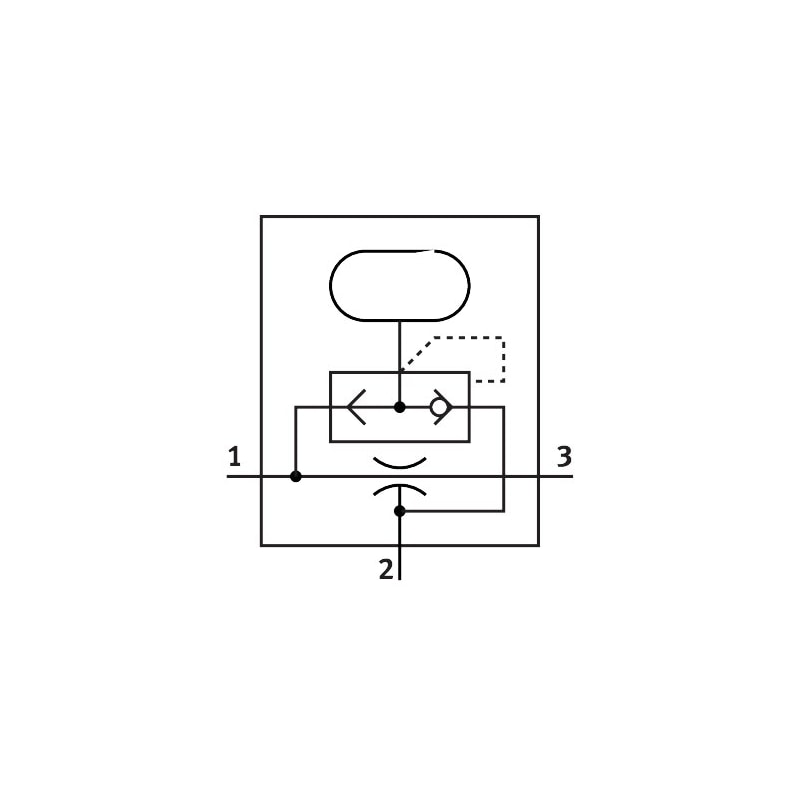

vacuum generator VAK-1/4 With pneumatic ejector pulse. Nominal size, Laval nozzle=1 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=Pneumatic ejector pulse, Design structure=T-shaped
| Nominal size, Laval nozzle | 1 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Pneumatic ejector pulse |
| Design structure | T-shaped |
| Operating pressure | 1.5 … 10 bar |
| Max. vacuum | 0.8 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | ‘-20 … 80 °C |
| Ambient temperature | ‘-20 … 80 °C |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | G1/4 |
