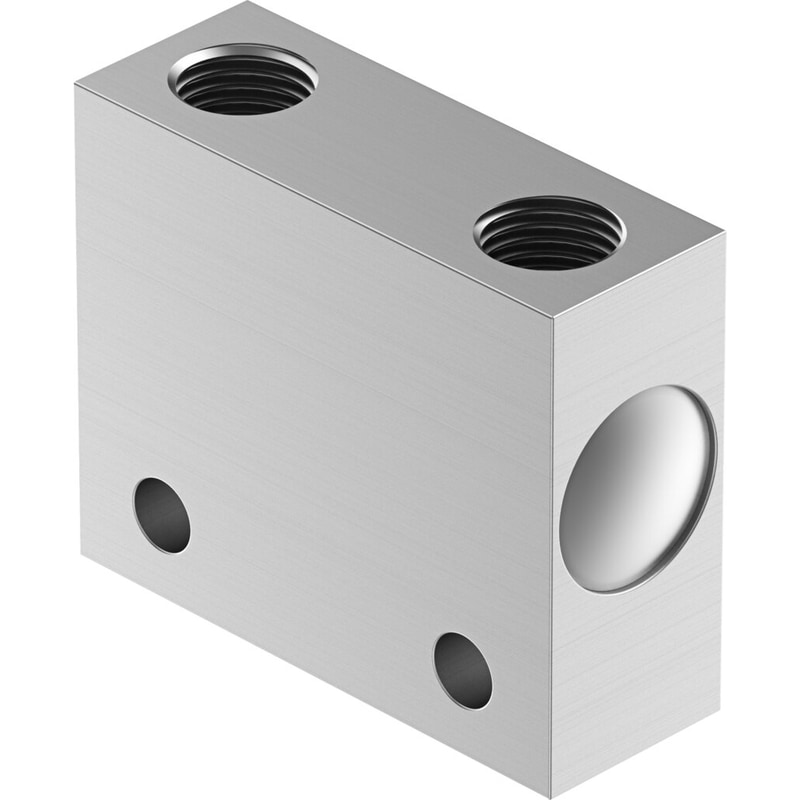

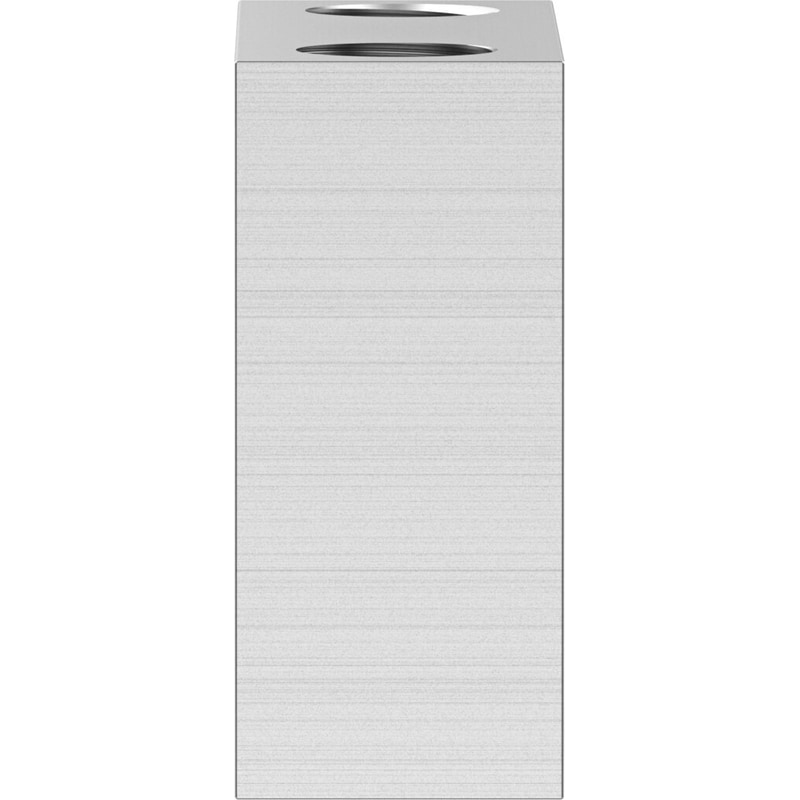

OR gate OS-1/4-B Valve function=OR function, Pneumatic connection, port 1=G1/4, Pneumatic connection, port 2=G1/4, Mounting type=with through hole, Standard nominal flow rate=1170 l/min
Valve function | OR function |
---|---|
Pneumatic connection, port 1Â | G1/4 |
Pneumatic connection, port 2Â | G1/4 |
Mounting type | with through hole |
Standard nominal flow rate | 1,170 l/min |
Operating pressure | 1 … 10 bar |
Ambient temperature | ‘-10 … 60 °C |
Material housing | Wrought Aluminium alloy |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
Nominal size | 6.5 mm |
Assembly position | Any |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Medium temperature | ‘-10 … 60 °C |
