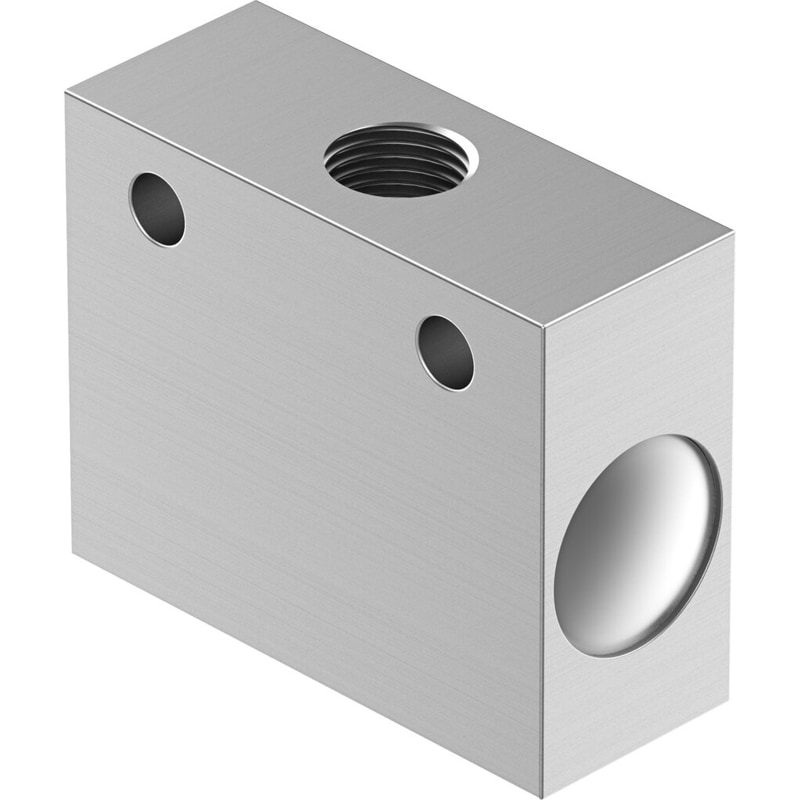

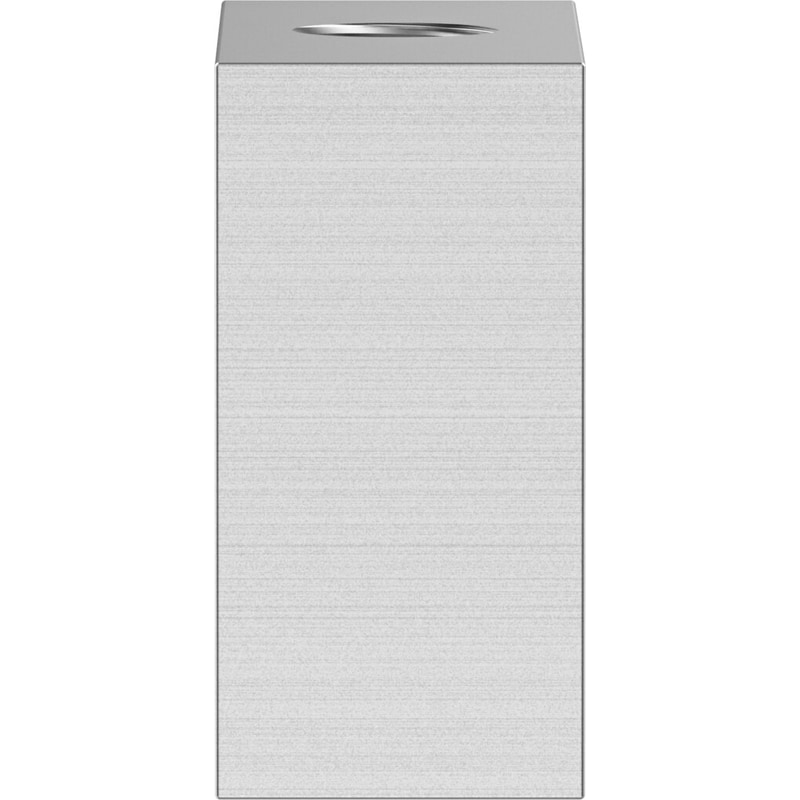

OR gate OS-1/8-B Valve function=OR function, Pneumatic connection, port 1=G1/8, Pneumatic connection, port 2=G1/8, Mounting type=with through hole, Standard nominal flow rate=500 l/min
| Valve function | OR function |
|---|---|
| Pneumatic connection, port 1Â | G1/8 |
| Pneumatic connection, port 2Â | G1/8 |
| Mounting type | with through hole |
| Standard nominal flow rate | 500 l/min |
| Operating pressure | 1 … 10 bar |
| Ambient temperature | ‘-10 … 60 °C |
| Material housing | Wrought Aluminium alloy |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Nominal size | 4 mm |
| Assembly position | Any |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | ‘-10 … 60 °C |
