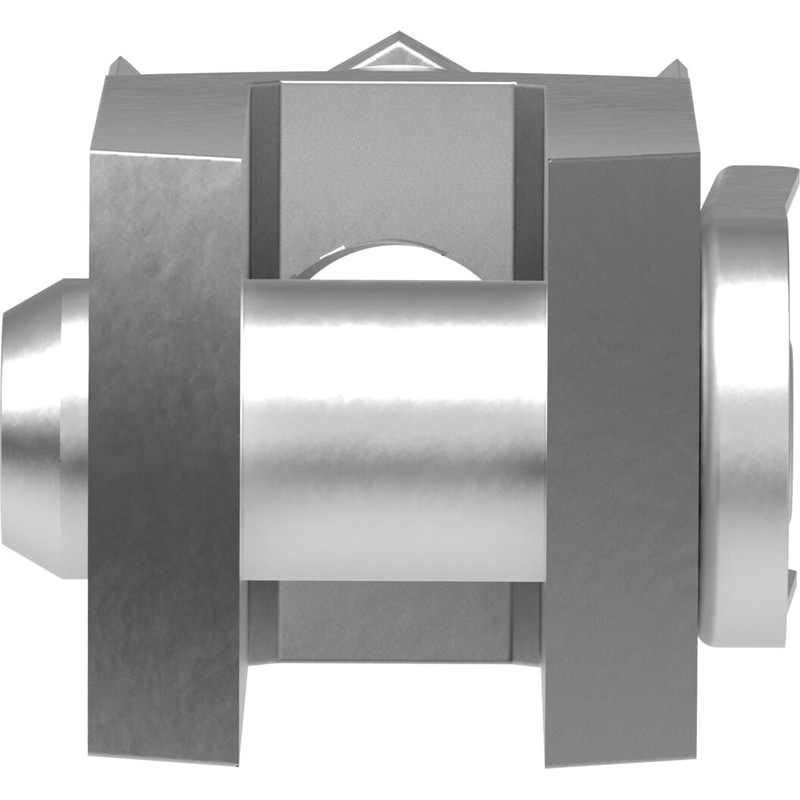

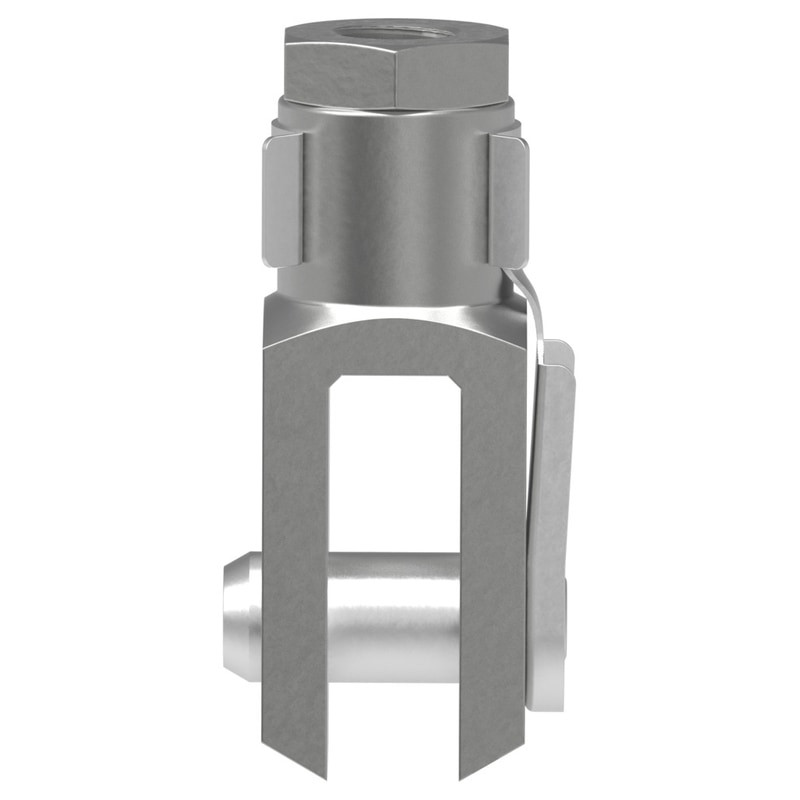

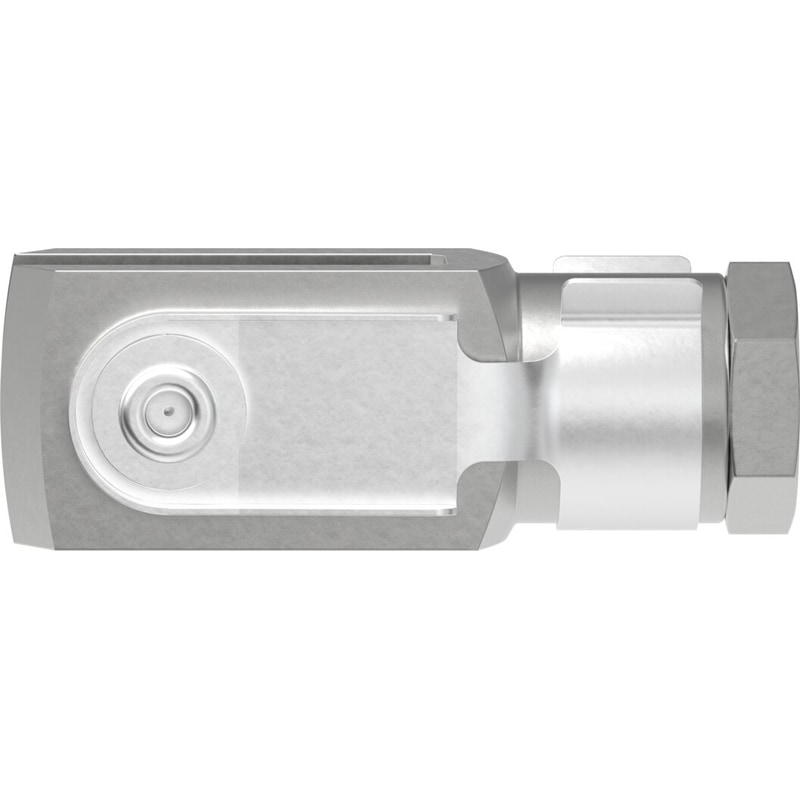

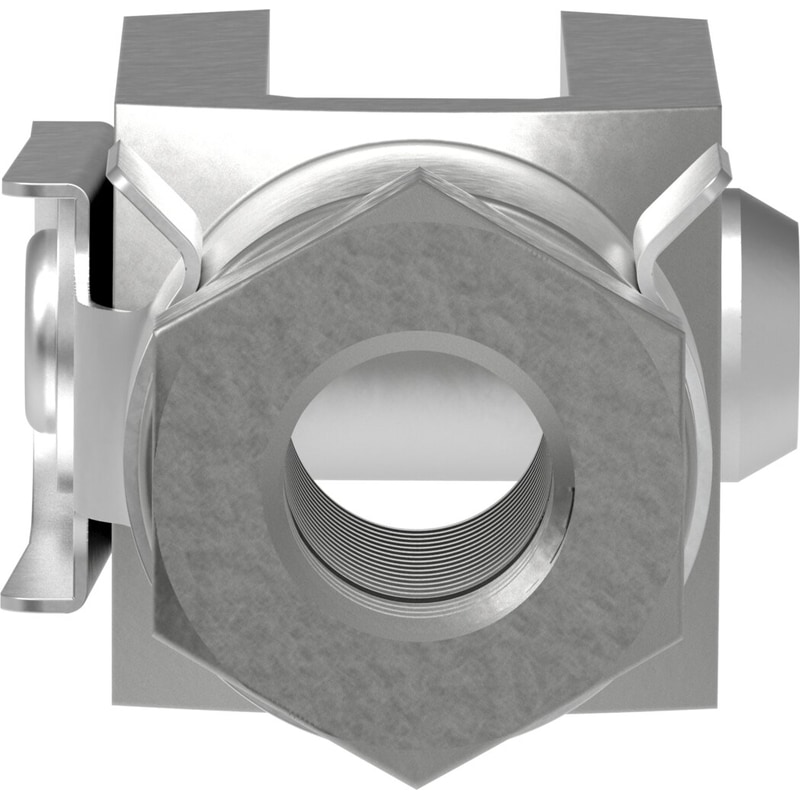

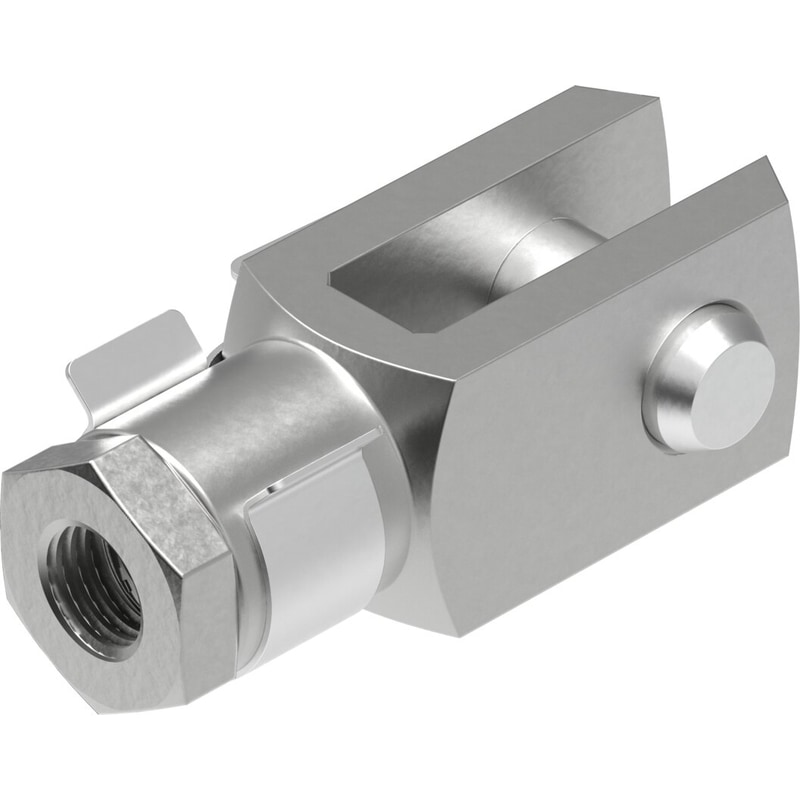

rod clevis SG-M10X1,25 With hexagonal nut, for swivelling cylinder mounting (piston rod side) as per DIN ISO 8140. Size=M10x1,25, Conforms to standard=(* DIN 71752, * ISO 8140), Threaded connection=Female thread M10x1.25, Corrosion resistance classification CRC=1 – Low corrosion stress, Ambient temperature=-40 – 150 °C
| Size | M10x1,25 |
|---|---|
| Conforms to standard | DIN 71752ISO 8140 |
| Threaded connection | Female thread M10x1.25 |
| Corrosion resistance classification CRC | 1 – Low corrosion stress |
| Ambient temperature | ‘-40 … 150 °C |
| Product weight | 103 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting pin | SteelGalvanised |
| Material clevis | SteelGalvanised |
| Material nut | SteelGalvanised |
