solenoid valve VMPA14-M1HF-K-PI Valve function=2×3/2 closed, monostable, Type of actuation=electrical, Valve size=14 mm, Standard nominal flow rate=760 l/min, Operating pressure=3 – 10 bar
| Weight | 0.180779 lbs |
|---|---|
| Dimensions | 4.330709 × 2.165354 × 1.771654 in |

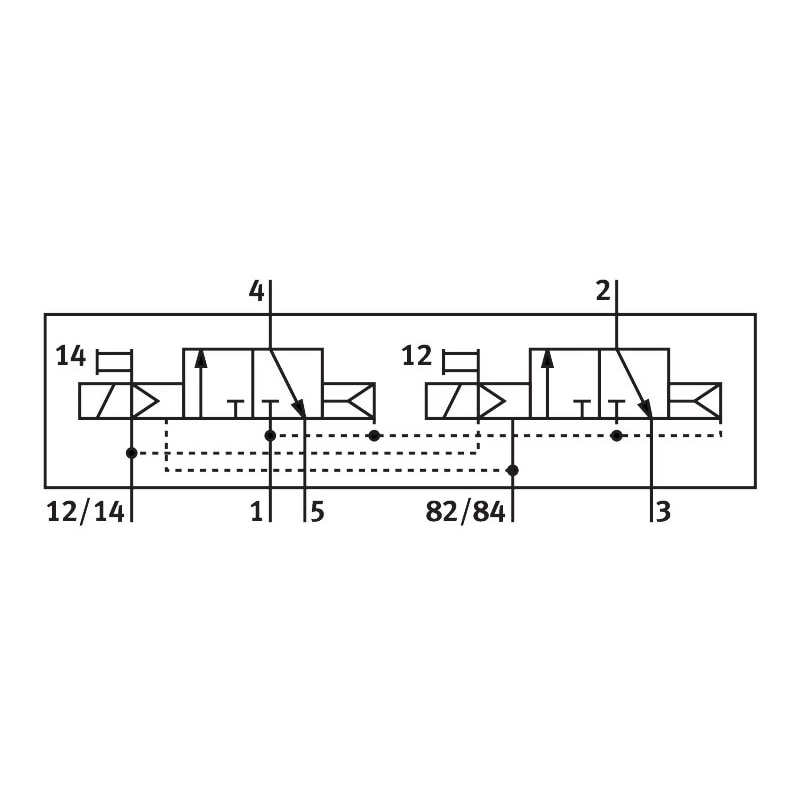

| Valve Function | 2×3/2 closed, monostable |
| Type of actuation | electrical |
| Valve size | 14 mm |
| Standard nominal flow rate | 760 l/min |
| Operating pressure | 3 … 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65to IEC 60529in assembled condition |
| Authorisation | c UL us – Recognized (OL) |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
